Fabric laser engraving/cutting machine/engraver/cutter with auto rolling

FOB Reference Price:Get Latest Price
$1,000.00 - $2,000.00 / Set | 1 Set/Sets laser cutting/engraving machine (Min. Order)
Model Number:
PEDK-160100
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Engraving
Engraving Speed:
0-75000mm/min
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Hebei, China
Brand Name:
Perfectlaser
Dimension(L*W*H):
Send by email
Certification:
CCC, CE, GS, ISO, SGS
laser power:
60W / 80W / 100W / 120W / 150W
Voltage::
220V, 50HZ
USB interface:
yes
control system:
DSP offline control system
Laser tube's life:
10000
max cutting speed:
0-40000mm/min
front &rear door:
yes, pass long sheet material
machine name:
CO2 laser cutting /engraving machine
Use:
Cut and engrave
working area:
more working area for you to choose
After-sales Service Provided:
Engineers available to service machinery overseas
Engraving Area:
1600*1000
Supply Ability
Supply Ability:
100 Set/Sets per Month laser cutting/engraving machine
Packaging & Delivery
Packaging Details
laser engraving machine is packed in standard plywood case for export.
Port
Shanghai/Guangzhou
Lead Time :
laser engraving machine: 7 days upon receipt of deposit



Fabric laser engraving/cutting machine/engraver/cutter with auto rolling



 Working Area:  400mm*300mm ,   600mm*400mm , 900mm*600mm , 1300mm*900mm , 1600mm*1000mm , 1300mm*1800mm , 1300mm*2500mm , 1600mm*2600mm ~



nApplication Fields:

Applied Industry:

Plexiglass, Rubber Plate, Mould, craft, advertising decoration, paper etc. industry.



Applied Material:

Plexiglass, Acrylic, PVC, Leather, Textile, Cloth, Rubber, Plastic, Wood, Paper, Stone etc. non-metal materials.



 nSpecial Features

1)      Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.

2)      LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

3)      Imported high precision linear guide railand professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

4)      Special Front and back running-through design, the unique door for the limitless engraved materials through.

5)      Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;

6)      Water Cooling System with Alarm Protection function, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

7)      Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.

8)      High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.

9)      Red Light Pointer realizes the exact position without laser.

10)    Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.

11)    Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;

12)    Optional 3D Rotary System, engrave circumrotate 360 degree, applicable in column or cone work piece surface.

13)    Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.

14)    Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.

nTechnical Parameters:



Model

PEDK-4030

PEDK-6040

PEDK-9060

PEDK-13090

PEDK-160100

PEDK-130250

PEDK-130180

PEDK-160260

Working Area

400×300mm

600×400mm

900×600mm

1300×900

mm

1600×1000mm

1300×2500mm

1300×1800mm

1600×2600mm

Laser Power

40W / 50W

50W / 60W

60W / 80W

60W / 80W / 100W / 120W / 150W

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

1-60000mm/min

Cutting Speed

1-10000mm/min

Repeat Location Accuracy

± 0.0125mm

Laser Power Controlling

1-100% Manual Adjustment and Software Controlling

Voltage

220V(±10%) 50Hz

Cooling Mode

Water Cooling and Protect System

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Controlling Mode

CNC Professional Control System

Support Graphics Formats

BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF

Compatible HPG Order To Support DXF, WMF, BMP, DXT

Power Controlling Mode

Laser Energy Combining Movement Control System

Control Software

Original Perfect Laser’s Engraving & Cutting Software

Training

Video Training

Guarantee

12 month Guarantee Period

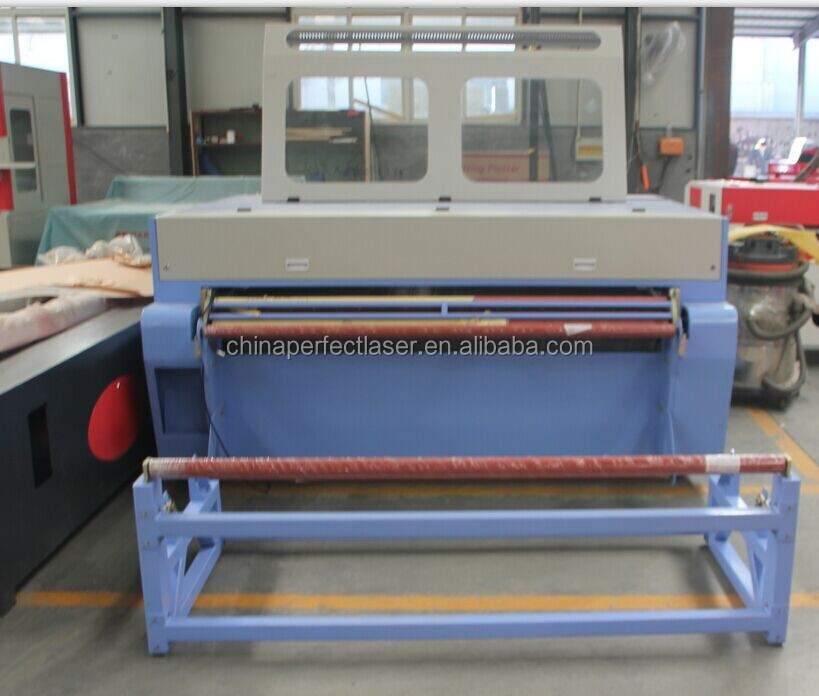

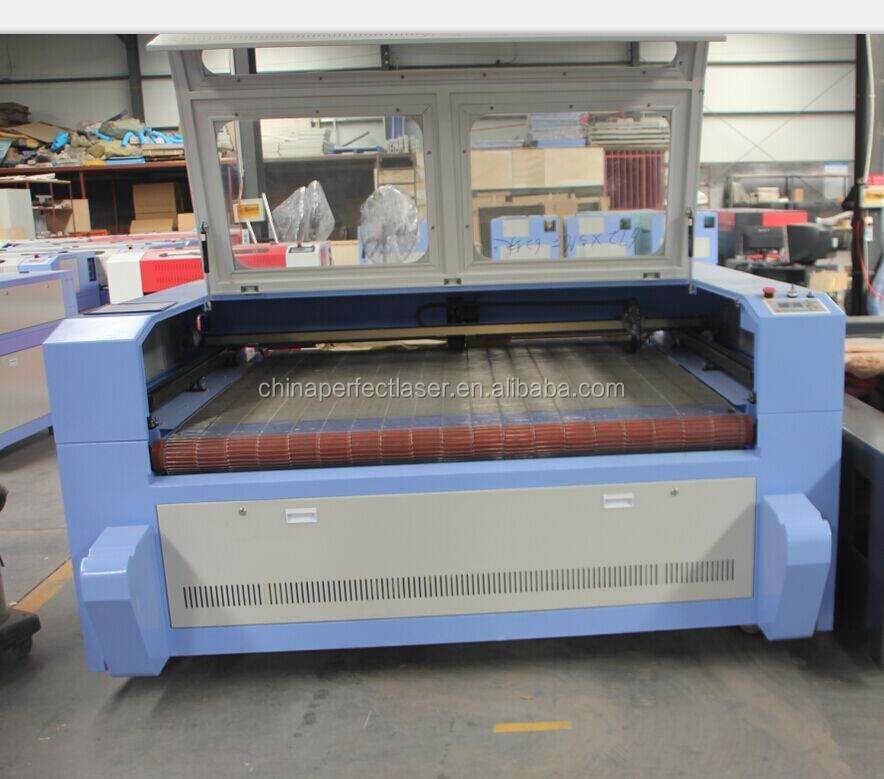

nMachines Photeos:

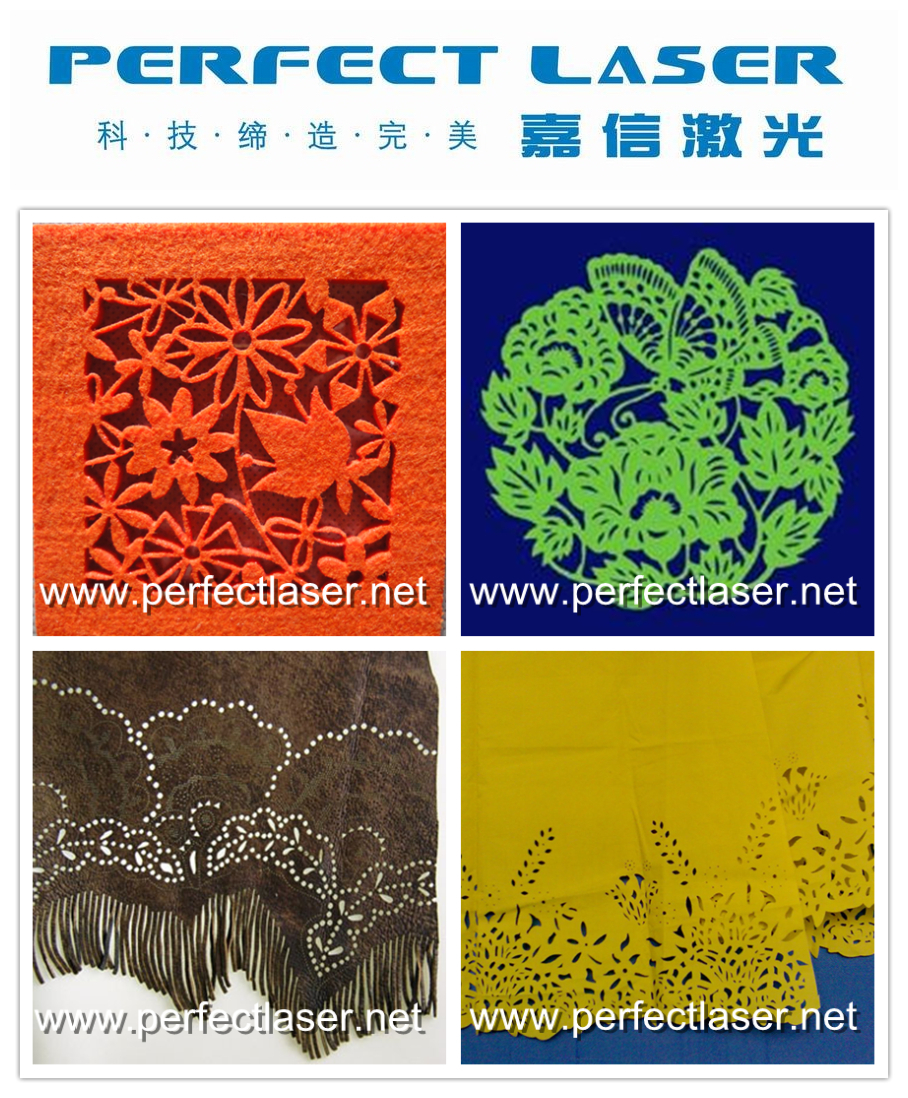

nSamples photos:



nCE Certificate & ISO 9001:200 Certificate

 nPerfect Laser Exhibition Photo

nTraining, Commissioning & Start up of Machine



 1. We well understand this is a far journey for our machine ship to your side. So we will prepare everything well before dispatching them. Please don’t worry as we have 14 year abundant experience in this field.We will supply with the machine Operation Manual and Training CD in English version for:

Installing and operation, including introduction for the composing of equipment, working principle of

equipment, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures of equipment.Personal demonstration for installation, adjusting and operation of equipment, and the computer.Common malfunction eliminating measures, etc.



2. We will supply Instruction for simple troubleshooting of the machine when dispatching, which can help you dealing with the common problems happened unluckily. Also, one set of “Instruction Book”,“OperationManual” and “Training Video Disk” for machine/software will be sent to you along with the machine,which could be easily understood and friendly handled by you and your customers.



Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –China Perfect Laser!

  1. The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
  2.  The cutting depth on above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
  3. The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,...)

 If you need larger or special working area, we can make it to your order.
