300*300mm mini cnc router for metal and non-metal materials PEM-3030

FOB Reference Price:Get Latest Price
$1,000.00 - $4,000.00 / Set | 1 Set/Sets 300*300mm mini cnc router for metal and non-metal materials PEM- (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Hebei, China
Brand Name:
Perfect Laser
Model Number:
PEM-3030/PEM-4040/PEM-6090/PEM-1212/PEM-1218/PEM-1325
Voltage:
380V,220V,50hZ/60hZ
Dimension(L*W*H):
1.14*1.1*1.3/0.85m
Certification:
CE&ISO9001:2000&TUV
Working area:
600*900mm,1300*2500mm or other customized size
Work Table:
Thicken Iron casting bed,Aluminum Alloy Work Table
Tansmission system:
Ball Screw /Gear Tansmission
Control system:
NCstudio/DSP
Spindle power:
1.5kw,2.2kw ,3kw,4.5KW
Driving Motor:
step motor/Servo Motor
Software:
Type3/Artcam/RD
Application:
metal and Non Metal
Key words:
cnc router 4 axis
Weight:
350-600KG
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 months and anything we can support
Power(W):
1.5kw, 2.2kw,3kw,4.5kw (optional)
Supply Ability
Supply Ability:
5000 Set/Sets per Month 300*300mm mini cnc router for metal and non-metal materials PEM-
Packaging & Delivery
Packaging Details
standard exporting wooden case for our cnc router
Port
Shanghai/Wuhan
Lead Time :
Shipped in 20 days after payment

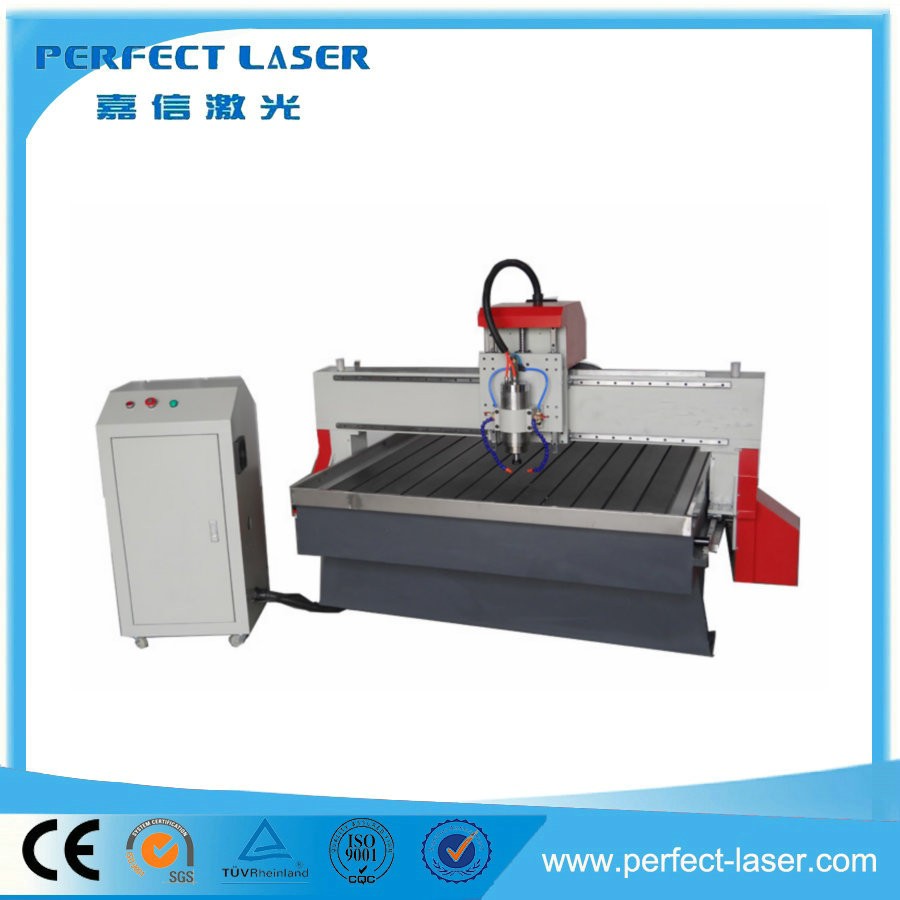

 300*300mm mini cnc router for metal and non-metal materials PEM-3030
Sell Antique Furniture CNC Router.jpg




  cnc router Description:

Our 300*300mm mini cnc router for metal and non-metal materials PEM-3030( also called CNC Router ) is designed with pure Aluminum, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the engine bed. It is applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics. It covers main sizes of marks and labels in the market. It can cut through Plexiglas with thickness of 20mm one time without trouble and can be applied to large-scale relief, too. It is doubtlessly a perfect product in the range of advertising.





cnc router Feature

1. X, Y, Z axis of 300*300mm mini cnc router for metal and non-metal materials PEM-3030 use imported ball bearing guide screws. It’s precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it’s an ideal product for manufacturing labels, construction models and moulds in batches.

 2. High speed calculation It uses DSP64 contouring control system and FPGA technology which can continually and smoothlyrun the three axes with high speed. It has the ability of calculation of 5000 vector/s.

3. Steady data transmission .The data transmission uses the technology of ISA/IP DNC/IP straight association, which can associate the machine without interruption, and it has no limitation of the amount of the document.

4. Double-nut guide screw .It uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It uses straight line guide rail (cylinder or square), which can ensure the working life.

5. Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.

6. Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP)



300*300mm mini cnc router for metal and non-metal materials PEM-3030Technical Parameters:

Product Name

CNC Router for Advertising

Model

PEM-6090

PEM-1212

PEM-1215

PEM-1218

PEM-1325

Working Area

600*900mm

1200*1200mm

1200*1500mm

1200*1800mm

1300*2500mm

Perfect Laser also have the ability to custom-made according to user's special demand

Table material

Aluminium Alloy

Maximum feed height

80mm

X,Y,Z Guideway rails type

Round Shape Guide Rail, Rod Transmission

Max Engraving Speed

4,000-7,000mm/min

Resolution ratio

0.002mm

Repetition accuracy

±0.02mm

Spindle power

1.5KW (Optional 2.2kw, 3kw,4.5kw)

Spindle Rotating Speed

6000 - 24,000rpm

Spindle cooling

Water Cooling

Drive motor system

Step Motor and Step Driver

Interface

PCI Port or USB Port

Memory buffer (Flash)

128MB

Engraving Command

G code, u00, mmg, PLT, HPG

Command language system

English Version, Windows 98/2000/XP Operation System

Operational Software

Original Type3 Software, ArtCam software or Wentai Software

Command language system

English Version, Windows 98/2000/XP Operation System

Software Compatibility

Support CAD/CAM software, PLT format, Corel Draw, Auto CAD

Working temperature

0-45°C

Relative humidity

30% - 75%



300*300mm mini cnc router for metal and non-metal materials PEM-3030 Application:

Our Mini CNC Router Series are widely used in the field of Advertising board, Label design, Acrylic cutting, model of the multi material decoration products. Which is also widely applied in engraving and cutting on all kinds of metal and nonmetal materials, such as wood engraving, wood cutting , MDF Engraving, MDF Cutting, PVC plastic Engraving, PVC plastic Cutting, plexiglass engraving, plexiglass cutting, acrylic engraving, acrylic cutting ,organic glass engraving, organic glass, etc.





CNC router Optional Items:



1. Rotary Fixture



2. DSP Remote Controller (for offline working)



3. Dust Collecting System for wood working



4. Vacuum Absorbing Table for wood working



5. Stainless Steel Water Slot for cutting metal (with Cooling System)



6. Servo Motor & Control System



7. Acrylic Polishing Machine



8. Automatic Knife Changing / Turnplate Knife Changing System



Origin /Straight Knife Changing System

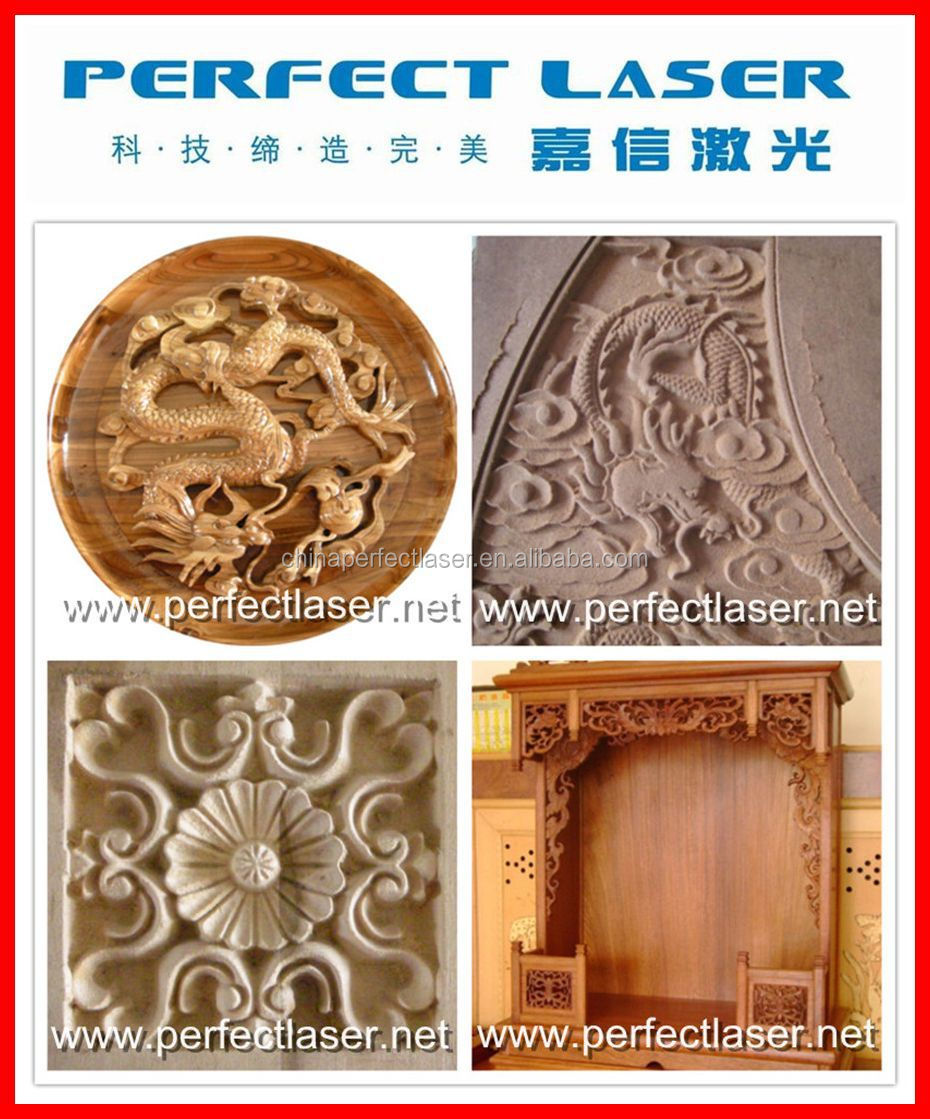

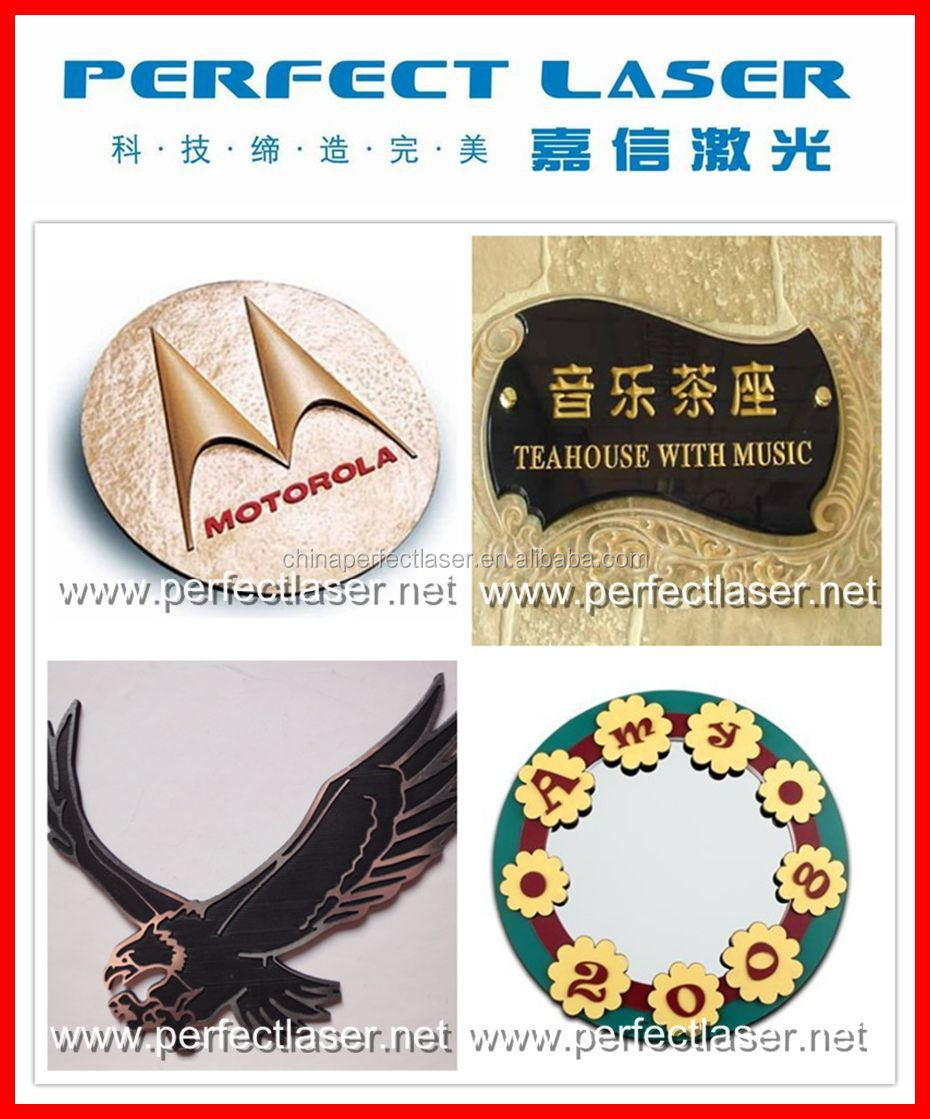

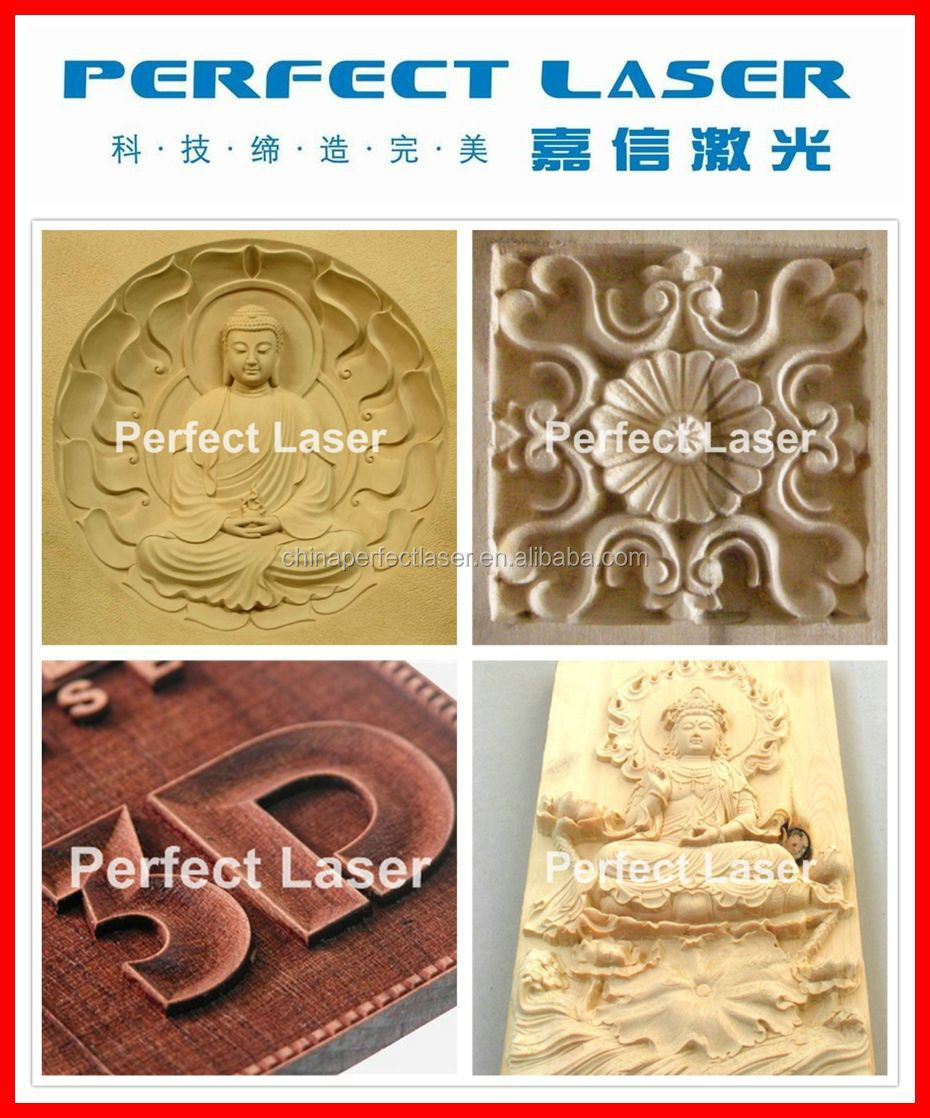

CNC router Samples:

 CNC ROUTER SAMPLES.jpgPerfect Laser- CNC Router Sample 5.jpgPerfect Laser- CNC Router Sample 6.jpg

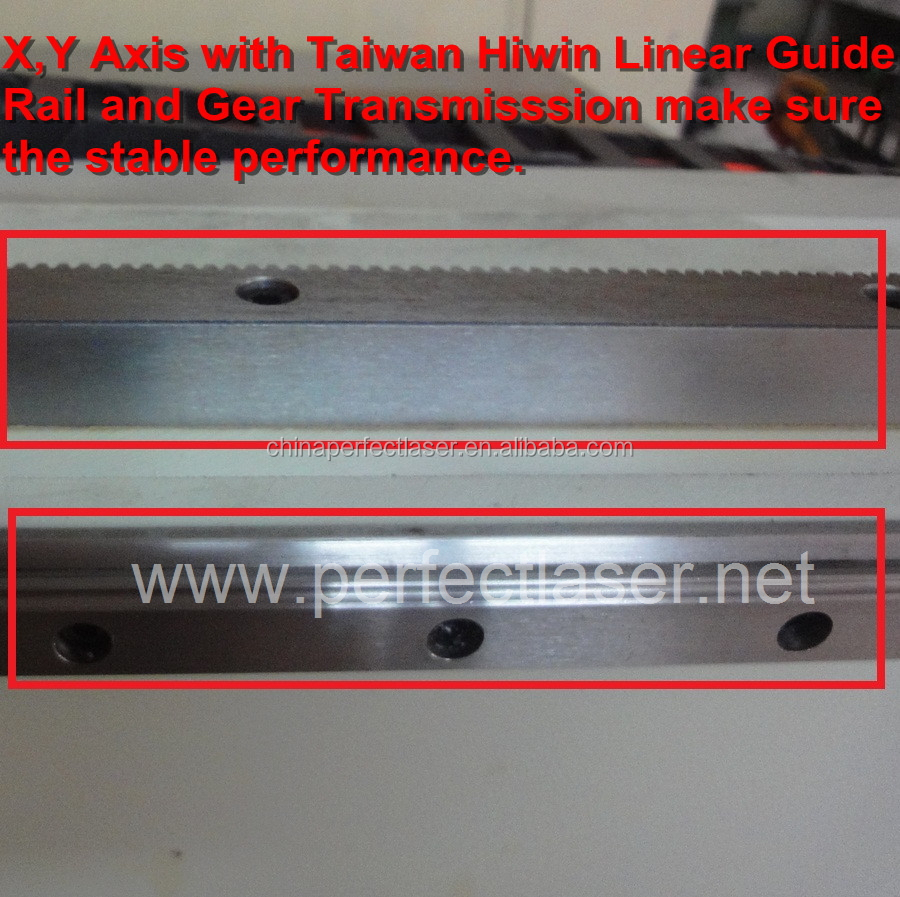

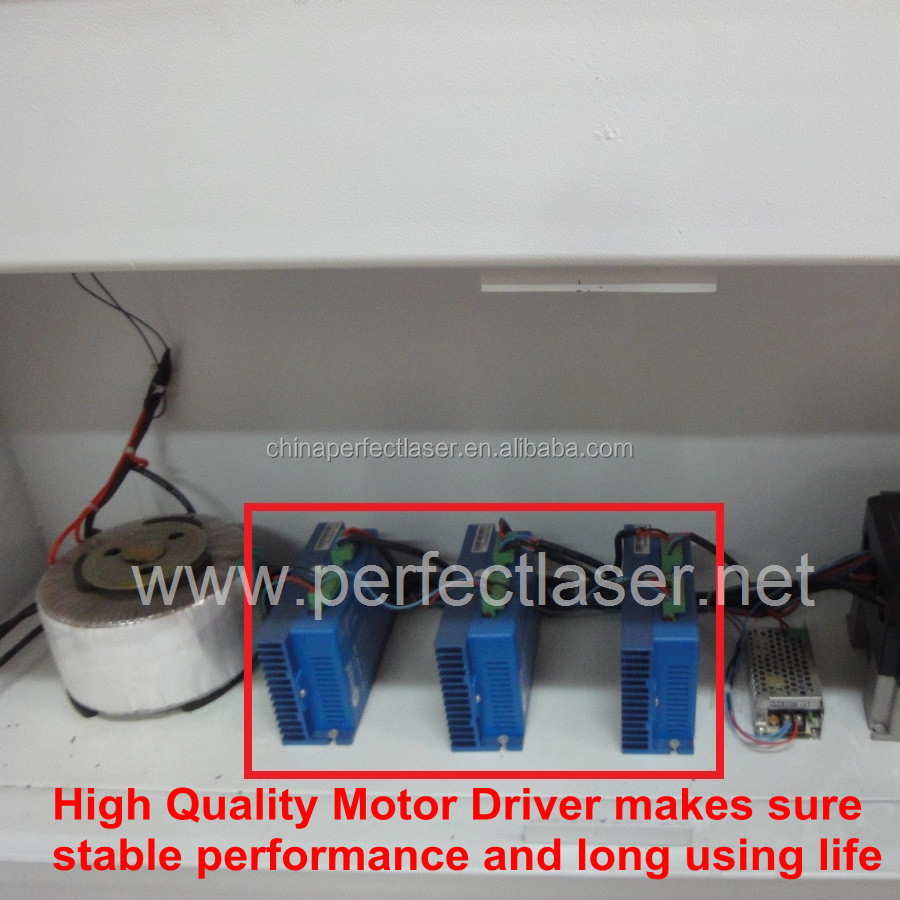

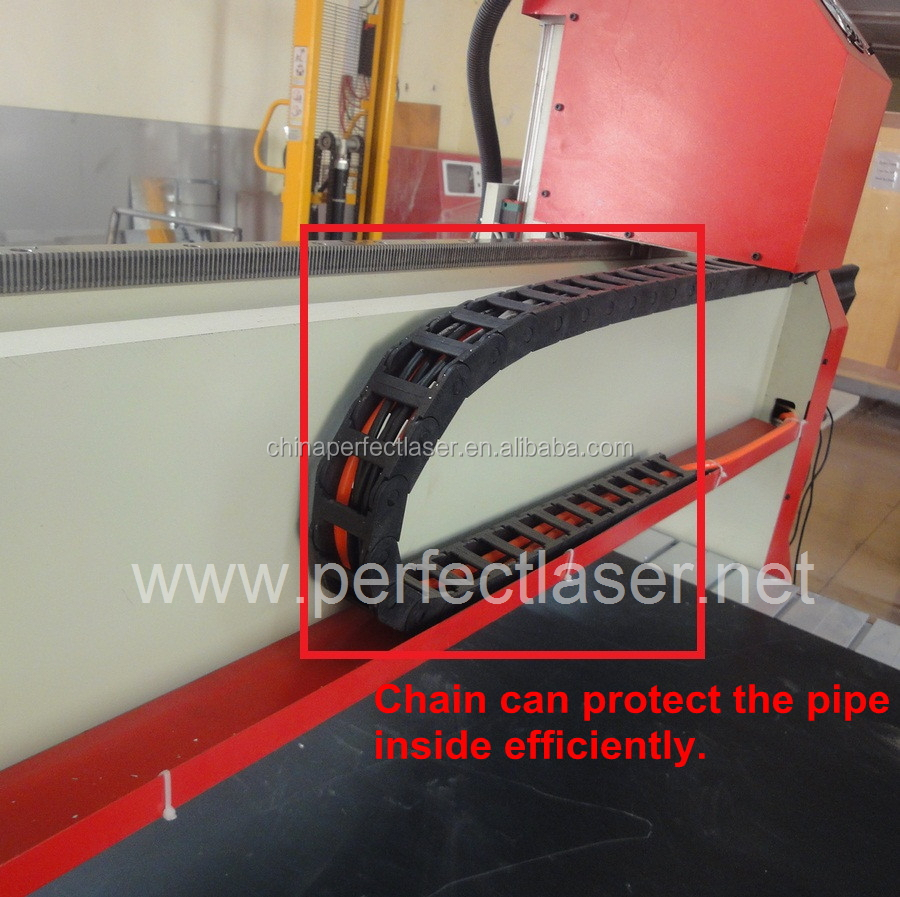

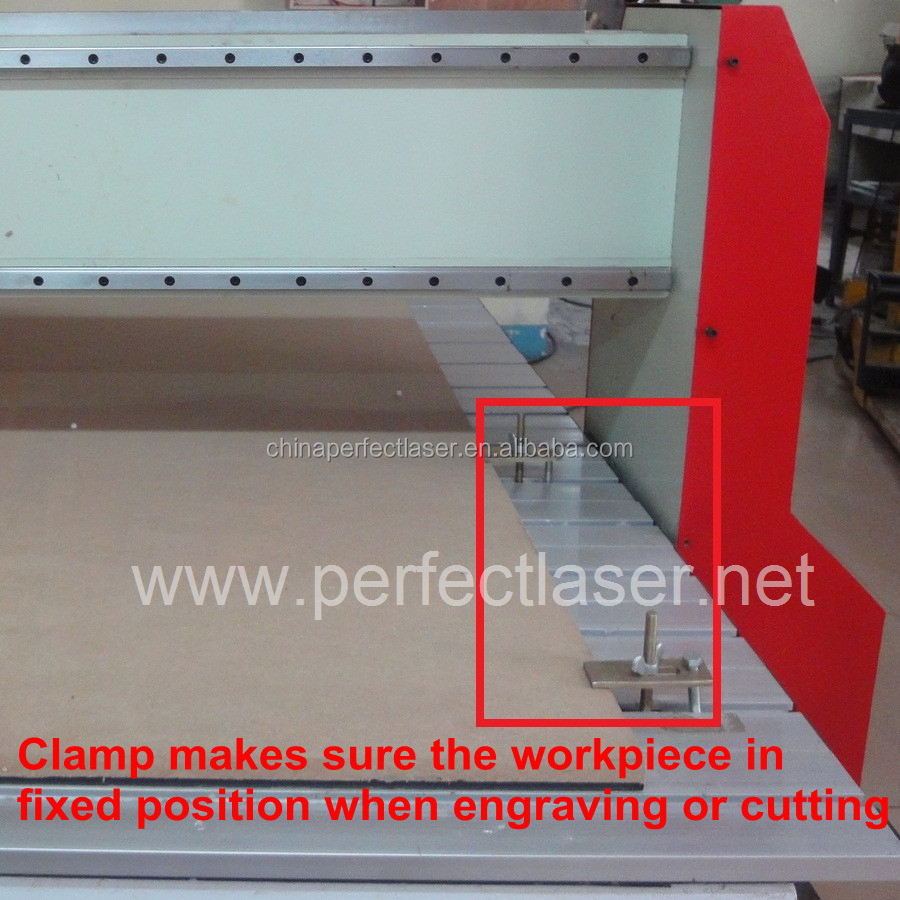

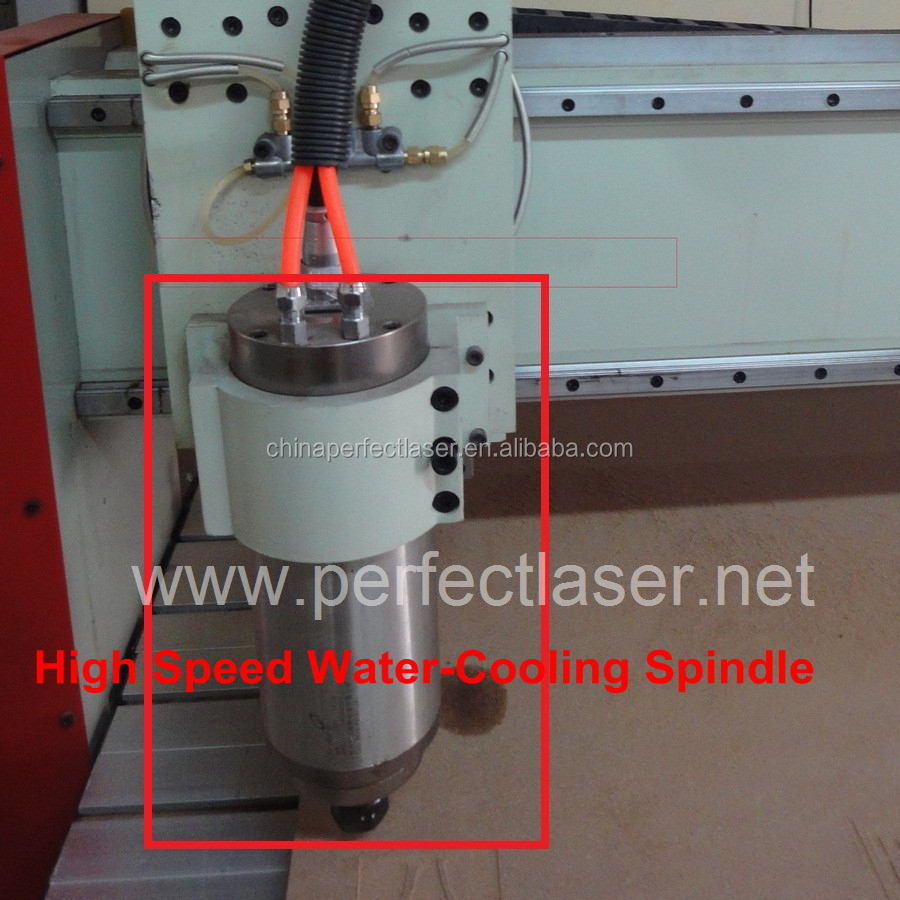

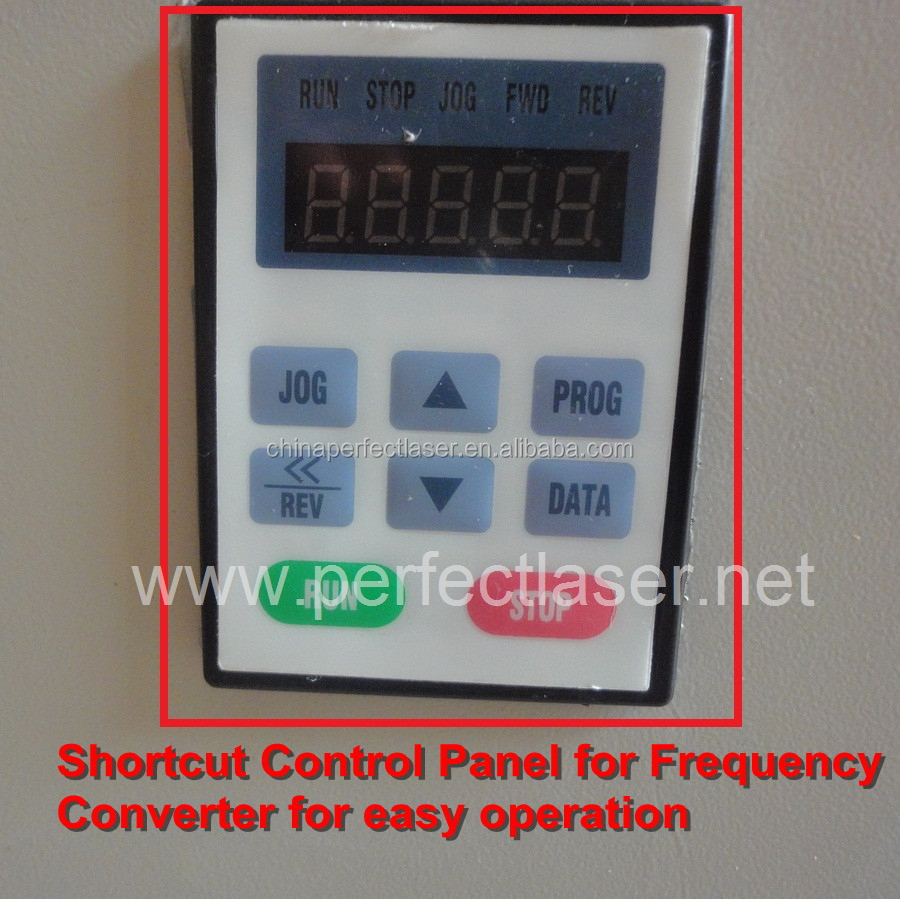

CNC router Machine Details:

CNC Router 1.jpgCNC Router 2.jpgCNC Router 3.jpgCNC Router 4.jpgCNC Router 5.jpgCNC Router 6.jpg





Our exhibition photos :

Perfect Laser Exhibition photo 1.jpgPerfect Laser Exhibition photo 2.jpg



Perfect Laser Customer Visiting:



Perfect Laser Has Customers All Over 180 countries with Good Reputation

customer visit 2.jpg







Our certificates:

Perfect Laser - Certificate.jpg



Pls don't hesitate to send us enquiry if you have interest with our machines!! :)
