Ring/Wood Pen Laser Engraving Machine

FOB Reference Price:Get Latest Price
$2,000.00 - $3,000.00 / Unit | 1 Unit/Units (Min. Order)
Power(W):
40W/50W/60W
Model Number:
PEDK-6040
Lead Time:
Quantity(Units) 1 - 3 >3
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Engraving
Engraving Speed:
1-10000mm/min
Laser Type:
CO2
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Fabric,Acrylic, Leather, MDF, Paper, Leather
Engraving Area:
600mm*400mm
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Hubei, China
Brand Name:
PERFECT LASER
Dimension(L*W*H):
1220*940*1270mm
Certification:
CE, ISO, FDA
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Engraving speed:
1-60000mm/min
Cutting Speed:
1-10000mm/min
Repeat Positioning Accuracy:
+/-0.0125mm
Control Software:
Original Perfect Laser software
Voltage:
220V (+/-10%), 50Hz
Business type:
manufacturer+trading company
Controlling Mode:
CNC Professional Control System
Laser power:
40W/50W/60W
Product Certification certification
EMC Certified.
Supply Ability
Supply Ability:
5000 Unit/Units per Year ring/wood pen laser engraving machine
Packaging & Delivery
Packaging Details
Sea-worthy packing or air-worthy packing standard wooden case for ring/wood pen laser engraving machine
Port
Shanghai,shenzhen,wuhan
Lead Time :
Quantity(Units) 1 - 3 >3
Est. Time(days) 7 To be negotiated
Product Description

ring/wood pen laser engraving machine


Contact: Vivian     Skype: perfectlaser017    Whatsapp: +0086 13871253601

This co2 engraving and cutting series products adopt imported proprietary sliding guide,and equip with auxiliary facilities,such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities.Also,this series products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software.

Applied Industries

Laser Engraving cutting machine has been widely used in the fields of plexiglass, architectural models, rubber plates, bamboo products.For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furnitures etc.

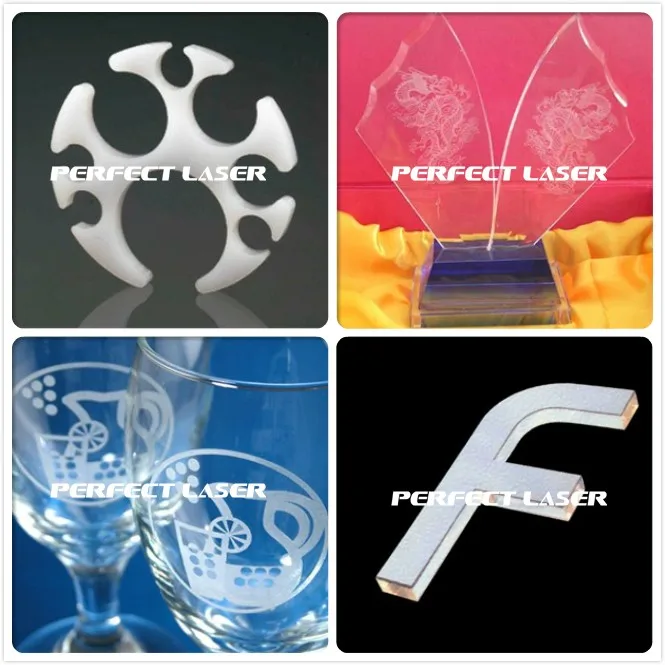

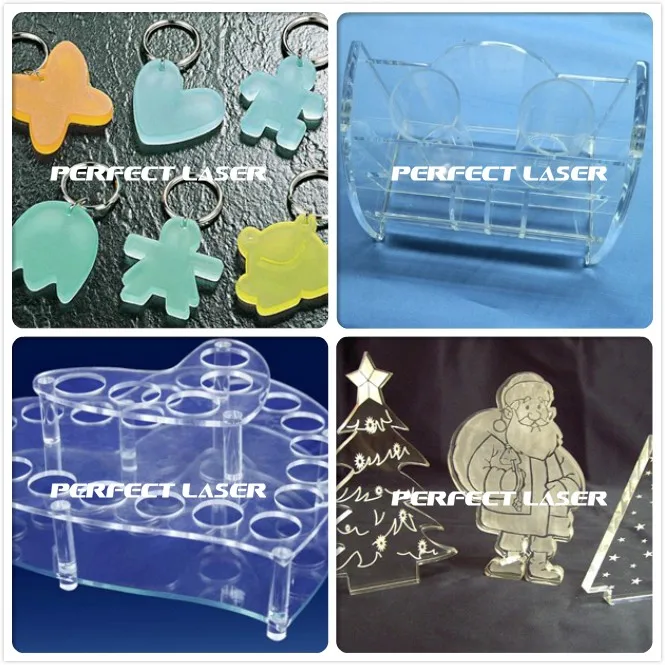

Acrylic Engraving Cutting Samples

Cardboard Engraving Cutting Samples

Fabrics leather Engraving Cutting Samples

 glass plastic Engraving Cutting Samples

Advantages of Laser Engraving & Cutting Machine

1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.

SPECIFICATIONS FOR CO2 ENGRAVEING MACHINE
Laser Type
Hermetic and detached CO2 laser tube
Laser Power
40W/50W/60W/80W
Engraving Area
600×400mm
Engraving Speed
0-900mm/s
Cutting Speed
0-300mm/s
Repeating Location Accuracy
±0.0125mm
Working Voltage
220V ±10% 50HZ
Machine Power
900W
Controling System
CNC professional controlling system
Supporting Graphics Formats
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF
Cooling Mode
Water-cooling and protection system
Auxiliary Devices
Exhaust fan & exhaust pipe
Cutting Platform
Professional strip work table
Power Control Mode
Laser power and moving system cooperate
Control Software
Original PERFECT LASER software
Machine Size
1220*960*1270mm
Detailed Images

Engraving Cutting Head

Longer life span
High quality with fast speed
Move x, y, z to cut and engrave the material

Reci EFR Excellent Co2 Laser Tube

The lifespan is more than 10,000 hours.

We use Reci, EFR etc laser tubes with excellent performance and good quality.

Every laser tube must pass the professional inspection before delivery.

Ligh spot is more exquisite and precise.

Taiwan Imported high precision Linear Guide Rail


With high speed and accuracy
It is helpful for laser head to move smoothly and helpful for laser beam to reflect with high accuracy
Together with professional optical system can dust-proof and lubricate, improve the engraving quality and prolong machine lifetime. High speed with lower noise volume, high accuracy and long life span.

Conveyor Belt


Adopts the Shanghai Famous FULONG brand, it contains metal material in the rubber belt, so it is fasten and not easy to loose after even 5 years using.

Water Cooling Machine

We use CW-3000, CW-5000, CW-5200 water cooling machine.

All our co2 engraving and cutting machine are equipped with the most advanced cooling system, lower noise and lower power comsumption.

Various Working Platform

We have honeycomb and stripe working plateforms for you to choose.

In order to meet different requirements, we have two different working platforms for fabric, acrylic, paper, MDF, pvc, wood etc.

Also we can do vacuum working platform if you need.

Our Company

Perfect Laser

 is a world famous manufacturer of industrial laser equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.

Certificate and International Certification

As ISO9001: 2000 certified laser machinery manufacturer, Perfect Laser is committed to providing customers with high-quality, reliable laser machines.

As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Perfect Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.

Talented Team

Perfect Laser brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel.

Perfect Laser eatalished 2 R&D center in Changchun and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad, work closely with national 63 patents, a number of the core technological achievements and technical indicators at the international advanced level.

Packing & Delivery
Size
1.96*1.45*1.15m
Weight
475 kgs
Packaging Details
1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof. 2. Air-Worthy Packing or Sea Packing which comply with international standard.
