Portable High Resolution Vertical Wall Printer Machine PE-S50

FOB Reference Price:Get Latest Price
$12,900.00 - $18,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
PE-S50
Gross Power:
100W
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Customized packaging (Min. Order: 10 Units)

More

Graphic customization (Min. Order: 15 Units) Less
Samples:
$20.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Color & Page:
Multicolor
Certification:
CE ISO FDA
Usage:
wall printer
Plate Type:
wall printer machine
Type:
Inkjet Printer
Condition:
New
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Voltage:
110V/220V
Weight:
60 kgs
Automatic Grade:
Automatic
Dimensions(L*W*H):
3000mmx670mmx2640mm
Print Dimension:
2100mm (H) x 4500mm (W)
Ink Type:
all color
Applicable Industries:
Hotels, Restaurant, Printing Shops, Advertising Company
Product name:
PE-S50 vertical wall printer
Clarity:
HD Enhanced Version
Painting speed:
High, medium, low, three-speed adjustable
Painting resolution:
360*720dpi or 720*720dpi or 720*1080dpi or 720*1440dpi
Picture type:
Support JPG, BMP, TIFF, PDF, AI, PSD, CDR and other files
Structure:
Vertical
Mainboard configuration:
6-core CPU, 2GB DDR memory
Storage:
-30℃-60℃(-22℉-140℉)10%-80% relative humidity
Machine language:
Chinese,English(Customizable)
Actual print size:
2100mm (H) x 4500mm (W)
Supply Ability
Supply Ability:
5000 Unit/Units per Year
Packaging & Delivery
Packaging Details
3 layers package for machine:
1.For the outside, we adopt wood craft case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Port
Shanghai,Shenzhen,Wuhan
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

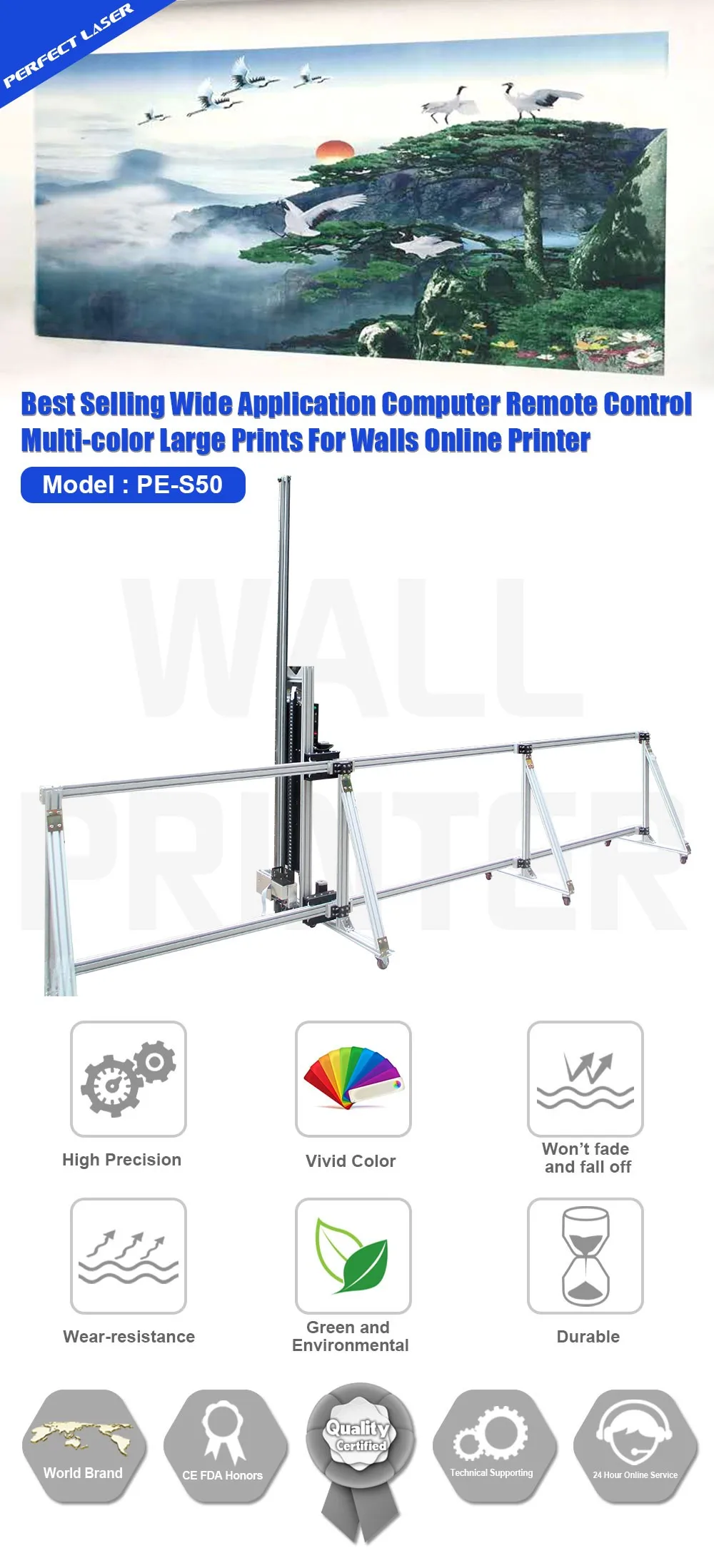

Portable High Resolution 3D Wide Format Home Decals Printer
Vertical Wall Printer Machine
(Model: PE-S50)
Contact: Crystal  Skype: perfectlaser013  Email: sales013(@)perfectlaser.net

Product Description

Perfect Laser is specialized in vertical wall printer with high quality and perfect services. Perfect Laser has successfully developed a new vertical type standard version wall printer machine. Adopt to aluminum-magnesium alloy assembly body, the chassis is very thin and durable. In the aspects of product performance, the stability has been significantly improved. Higher painting speed, simple operation, free maintenance, no need to move during work, and the 3D wide format home decals printer vertical wall printer machine is appropriate for large format painting, beautiful picture and a wide range of applications, this machine is the wide format printing prior choice.

Main Features

1. Sprinkler data signal using optical fiber integrated output. Faster, anti-interference ability, high reliability, stable transmission data.
2. Automatic fill system. Construction accidentally interrupted, fill system of the decals printer vertical wall printer machine can effectively reduce the painting scrap rate.
3. Fuselage reserved UPS, inverter interface (can be installed built-in power supply system, the p
ortable high Resolution printing machine power off for about 10 hours).
4. The 3D wide format home decals printer vertical wall printer machine adopts advanced AC servo control technology to ensure higher precision printing, better stability and longer service life
of wall printer machine.

5. Integrated head design of the 3D printing machine, separable structure. Effectively avoid the damage caused by handling bumps, all around the printing head installation board, thus extending the actual life of the printing head.
6. The portable high resolution 3D wide format home decals printer vertical wall printer machine is equipped with simple multi-color ink cartridges ink system, stable and convenient, to support the separation of fast lines, water and electricity separation, with the take with the release.
7. The portable high resolution wall printer makes use of sensor system, dual sensors  imported from united States, up and down two-way sensor, surface tracking, automatic positioning and solution to the wall uneven, wall tilt and other issues, effectively reducing the risk of printing head damage.

Samples

Application Field

Portable High Resolution 3D Wide Format Home Decals Printer Vertical Wall Printer Machine PE-S50 is suitable for a variety of special materials: painted inside and outside wall, wall putty, paint the walls, white porcelain, ceramic tile, walls, glass, paper, canvas, wall, colored glaze, shell powder, wall paint color tablets.

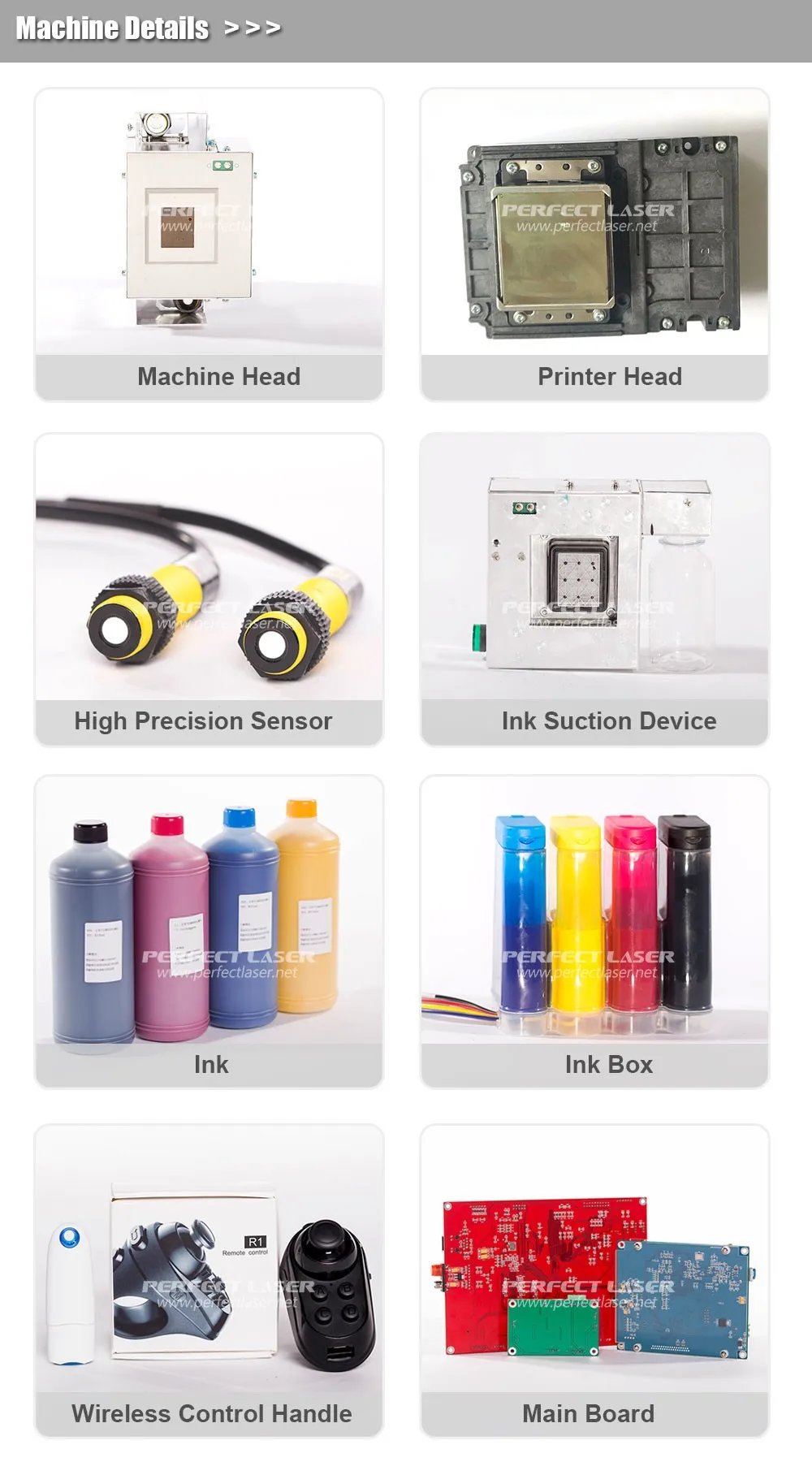

Detailed Image

1. High Precision Sensor
Adopt American import high precision sensor, small and compact, high-precision positioning function.
2. Machine Head
Separate structure, can be take-off from the machine easily. can avoid the damage caused by collision in movement effectively.
3.Ink Box
Support multi-color ink, can add ink at any time, very convenient.
4.Ink
Special synthetic pigment, won't fade and fall off, wear-resistance, green and environmental, Adopt imported color mill base, won't get icing even at -30 degrees, no need heating.
5.Wireless Remote Control Handle
Support remote control by using the wireless handle. Greatly improves working efficiency.

6. Printing Head
Famous brand single 4-color (special-design) piezoelectric printing head, fast speed, high precision, clear and bright color, durable.
7. Guide Rail
Split joint, professional fasteners, fast assemble and disassemble, smooth movement, can ensure the clear picture quality when output, easy to carry.
8. Ink Suction Device
It can absorb different color at the same time, multi-colors together, vivid and average.
9. Main Board
Adopt chip with high technology, delicate, sophisticated and exquisite.
10. The Cover
Small and delicate design, high hardness, high heat dissipation, dust-proof.

Technical Parameters
Product Name
High Resolution Vertical Wall Printer Machine PE-S50
Clarity
HD Enhanced Version
Actual print size
2100mm (H) x 4500mm (W)
Ink Box
Support multi-color ink, can add ink at any time, very convenient.
Ink
Double channels, 4 colors and8 ink cartridges. Red/ Yellow/ Blue/ Black (1000ml*4)
Painting speed
High, medium, low, three-speed adjustable
Painting resolution
360*720dpi or 720*720dpi or 720*1080dpi or 720*1440dpi
Picture type
Support JPG, BMP, TIFF, PDF, AI, PSD, CDR and other files (some formats need to be converted)
Actual painted size
2100mm (H) x 4500mm (W), wide width can be extended
Power Supply
AC110V(90-132V)/AC220V(180-264V)AC,47-63HZ
Power consumption
No-load 20W, general 75W, Max to 250W
Noise
Standby <20dBA, drawing <50dBA
Operation
-10℃-60℃(14℉-140℉)10%-80% relative humidity, non condensable state
Storage
-30℃-60℃(-22℉-140℉)10%-80% relative humidity, non condensable state
System platform
Windows XP/Win 7/Win 8/Win 9/Win 10
Motherboard configuration
6-core CPU, 2GB DDR memory
Machine language
Chinese, English (Customizable)
Print mode
Speed (per square meter per hour)
Quick mode
6 Plane / hour
Production model
4 Plane / hour
Quality model
3 Plane / hour
High precision model
2 Plane / hour
Packing & Delivery
Size
2610*450* 560mm
Weight
61 kgs
Packaging Details
1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard.

To be the customer of Perfect Laser, we will cooperate based on complete trust and comfortable. You will find we are a reputable supplier and worth your trust. We understand every customer is valuable and will value every chance you give to us.

Certifications

As ISO9001: 2000 certified wall printer manufacturer, Perfect Laser is committed to providing customers with high-quality, reliable wall printer machine.

As a result of our quality control measures, our machine all have got CE certification. Perfect Laser also has got ISO and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played an important role.

Perfect Laser has got 63 patents in high tech field. We have an energetic R&D term and abundant experience in wall printer field and we are honered as "Hi-Tech Enterprises" in China.

Our Company

Perfect Laser is a world famous manufacturer of wall printer. Since 1995, Perfect Laser focused on the development and production of various types of wall printer machinery
Perfect Laser brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel.
Perfect Laser eatalished 2 R&D center in Changchun and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad, work closely with national 63 patents, a number of the core technological achievements and technical indicators at the international advanced level.

Quality product performance and good reputation, Perfect Laser products are not only successful sell in China, but also have been exported to more than 180 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise. We always appreciated customer's trust and support to Perfect Laser.
