Small laser engraving machine prices laser marking machine cost

FOB Reference Price:Get Latest Price
$3,500.00 - $7,500.00 / Set | 1 Set/Sets (Min. Order)
Power(W):
10W/20W
Model Number:
PEDB-200
Report Suspicious Activity
Overview
Quick Details
Laser Type:
Fiber Laser
Working Accuracy:
99.99%
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Marking
Warranty:
1 year, 2 years of laser marking machine
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Certification:
CE
Condition:
New
CNC or Not:
Yes
Control Software:
EZCAD Software
Cooling Mode:
Air Cooling
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Printing Shops, Construction works , Energy & Mining
Laser Source Brand:
MAX
Control System Brand:
WEIHONG
brand Name:
Perfect laser
Product name:
PEDB-200
Engraving Speed:
8000mm/s laser marking machine
Engraving Area:
110*110mm
Dimension:
0.79*0.27*0.60m
Laser wavelength:
1064±4nm
Delivery:
5-7 working days
Laser source:
USA IPG Technology
Galvo Head:
China Top quality
Supply Ability
Supply Ability:
1000 Set/Sets per Month fiber laser marking machine for plastic
Packaging & Delivery
Packaging Details
Wooden cases export standard package for portable fiber laser marking machine
Delivery time: 5 days after getting the payment
Port
Shanghai
Product Description

Small laser engraving machine prices laser marking machine cost

Feature of fiber laser marking machine
1.High-tech,and it can make on both metal and non-metal.
2.Self-clean system
3.Lifetime over 100000hours.
4.Accuracy and speed is very well.

Technicial Data
Model No.
PEDB-200
Type
Full Enclosed Style
Laser Source
IPG Series:
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Pulsed
Polarization
random
Nominal average output power
10W - 20W

Central emission wavelength:
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth
(FWHM)
<10 nm
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse
(PRR = 20 kHz)
0.95 mJ
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
600W
Laser system
Scanning Speed
0-7000mm/s
Marking Speed:
0-5000mm/s
Marking size:
110mm*110mm (F-theta 160)
Spot size:
≤40 micron (F-theta 160)
Cooling unit:
Air cooled
Pilot laser:
650nm diode laser, visible red light for marking guide
Continuous working time:
≥16h
Humidity:
45%-85% (no condensation)
Operating temperature:
0~40℃
Control units
Laser Mark (English Version)
Application

10w 20w fiber laser marking machines can be carved both on metal materials and some non-metallic materials.
This kind of enclosed fiber laser marking machine mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.
The effect of 10w 20w fiber laser marker on Bitmap marking is particularly outstanding.
It is also called:10w fiber laser marking machines,20w fiber laser marking machines,fiber laser marking machine price,10w fiber laser marker,20w fiber laser marker,10w fiber laser engraving machines.

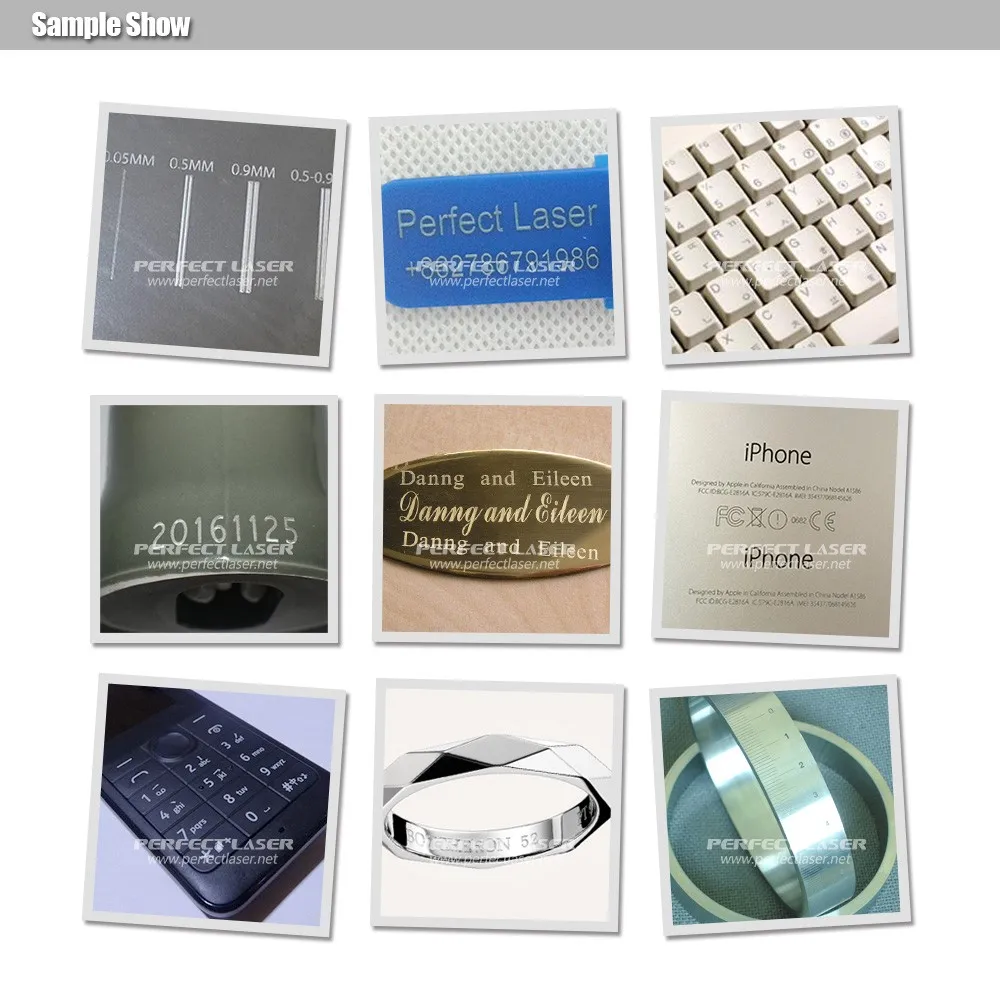

Marking Samples

This PEDB-200 Fiber Laser machine  applied in different industry for Marking

Packing & Delivery

Packing Details

1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard.

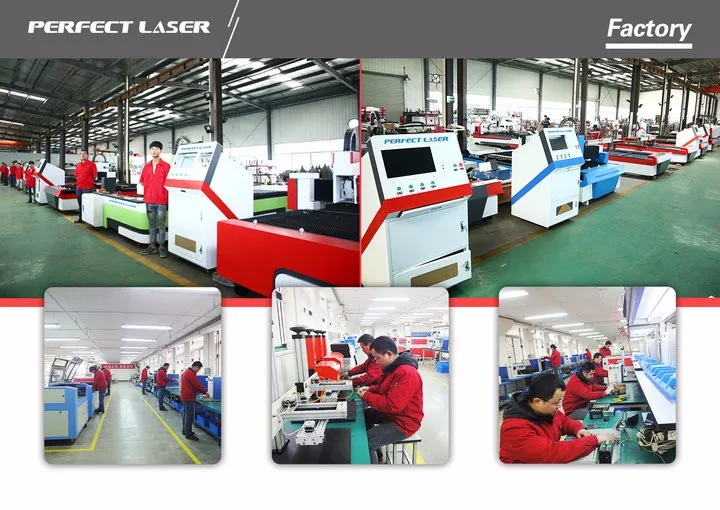

Our Company
Contact Us

Crystal/ Sales Department < Technology Creates Perfect! >

Working Hours: 8:30 am~17:30 pm at Beijing time (Mon~Fri)

Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China.

Tel: 0086-27-86791986 MP: 86-136 5989 3728 Fax: 0086-27-86775865

E-mail: sales013(@)perfectlaser.net Website: www.perfectlaser.net

Skype: perfectlaser013(@)hotmail.com WeChat/WhatsAPP:+0086-136 5989 3728


FAQ
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.


Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
