20w 30w 50w fiber laser marking printing machine with enclosed protection cover

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Units | 1 Unit/Units (Min. Order)
Power(W):
20W 30W 50W 100W
Model Number:
PEDB-500 fiber laser printing machine with enclosed protection cover
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Laser Type:
Fiber Laser
Working Accuracy:
±0.01mm
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Marking
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
Perfect Laser Marking Software
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Certification:
CE, ISO, FDA
Warranty:
3 years
Product name:
Laser Marking Device Plastic Laser Engraving Machine
Working Voltage:
110V/220V/380V
Marking Speed:
0-8000mm/s
Marking Depth:
0.2mm
Marking Size:
110*110mm
Laser Source:
fiber Laser
Humidity:
45~85% (no condensation)
PC:
PC included for 20 watt fiber laser marking machine
Delivery Time:
1-7 Days for 20 watt fiber laser marking machine
Keywords:
lazer marking machine
Supply Ability
Supply Ability:
5000 Unit/Units per Year fiber laser printing machine with enclosed protection cover
Packaging & Delivery
Packaging Details
Air-Worthy Packing or Sea Packing which comply with international standard for Big Discount series fiber laser marking machine
Port
Shanghai, Shenzheng, Guangzhou, any Chinese ports
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

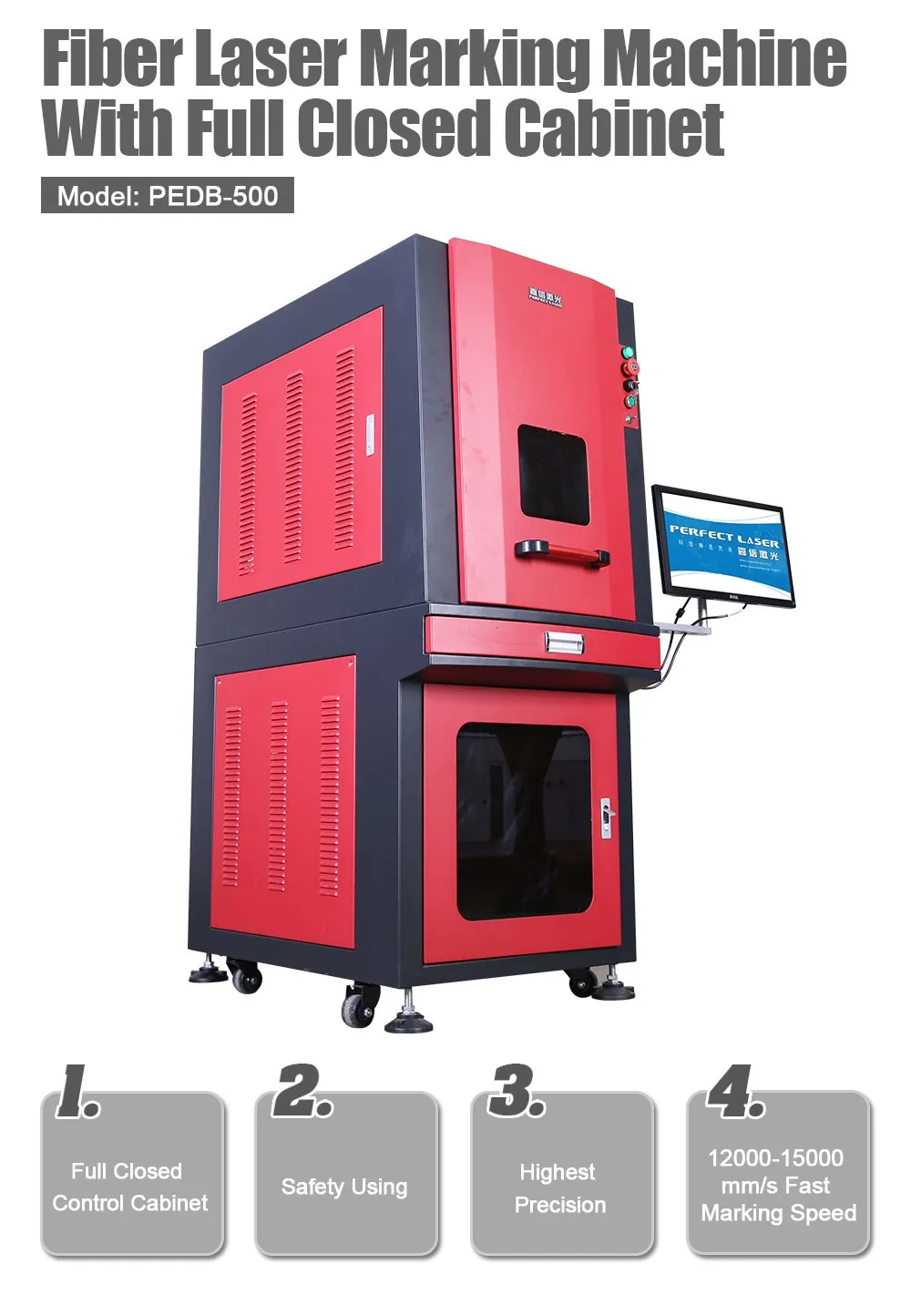

20w 30w 50w fiber laser marking printing machine with enclosed protection cover

(Model: PEDB-500)

Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.

Main Features of fiber laser marking machine

1. Low Cost In Use No wearing part. Free of maintenance.
2. High Speed Imported laser scanning system makes the marking speed up to 8000mm/s.
3. High Precision High precision, re-position precision is 0.001mm.
4. Energy Saving The efficiency of optic-electrical converting is up to 70%.
5. High Reliability MTBF(Mean Time Between Failures) >100,000 hours.
6. Integrated and Compact Small size, only 0.5 M2, can be put on desk and easy to install.
7. Easy Operating Easy operation, VCD training, trouble free.
8. 10 Years Long lifetime Fiber laser device adopts Germany IPG technology, 100000 hours lifetime.
9. No consumables While machine can be used free of maintenance for 8-10 years.
10. Air Cooling Adopts air cooling, has excellent cooling effect than the other cooling method.

Technicial Data
Model
PEDB-500
Type
Floor Stand
PC includes or not
Includes PC
Laser Source
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Pulsed
Polarization
random
Nominal average output power
20W 30W 50W 100W
Central emission wavelength
1060-1070 nm ,Q-switched operation Output power
adjustment range 10%-100%
Emission Bandwidth(FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse (PRR = 20 kHz)
<1.8
Typical beam quality, M2
10~95
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
600W
Net Dimensions
143*62*101cm
Net Weight
130 kgs
Gross Weight
200 kgs
Scanning Speed
0-8000mm/s
Marking Speed
0-8000mm/s
Marking size
110mm×110mm(F-theta 160) optional
Spot size
≤40 micron (F-theta 160)
Cooling unit
Air cooled
Pilot laser
650nm diode laser, visible red light for marking guide
Continuous working time
≥16h
Humidity
45~85% (no condensation)
Operating temperature
0~40℃
Control units
Laser Mark (English Version)

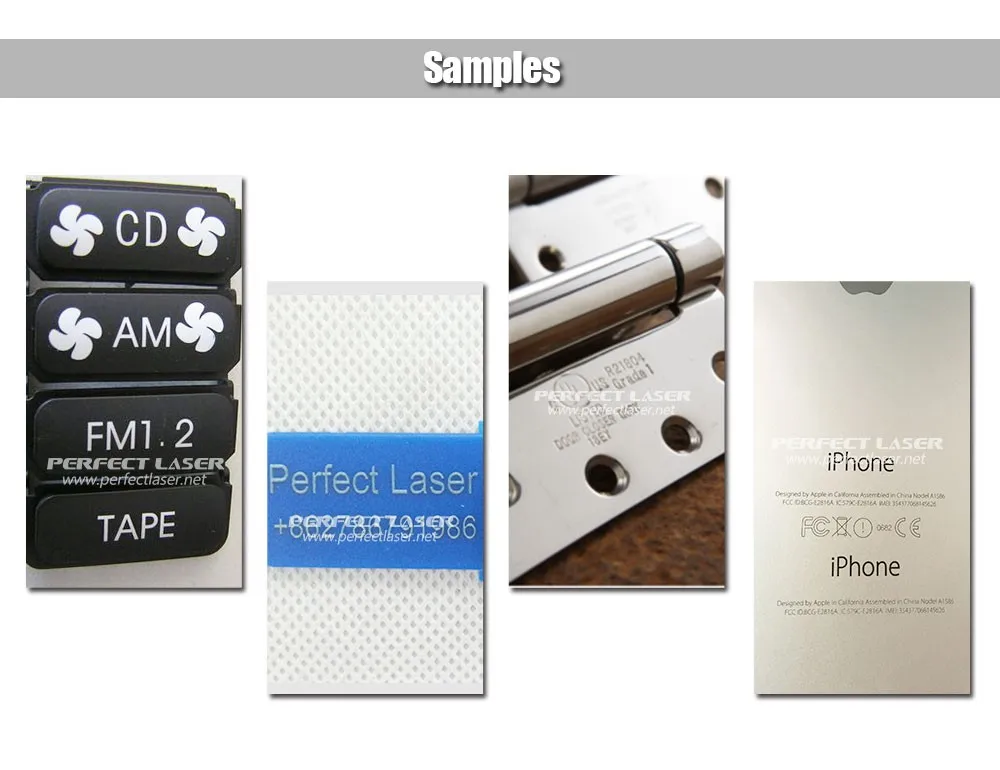

Sample Show

Application

The metal etching machines are mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.

The laser etching equipment can etch copper, brass, stainless steel, aluminum, iron and many kinds of metals and hard plastics.

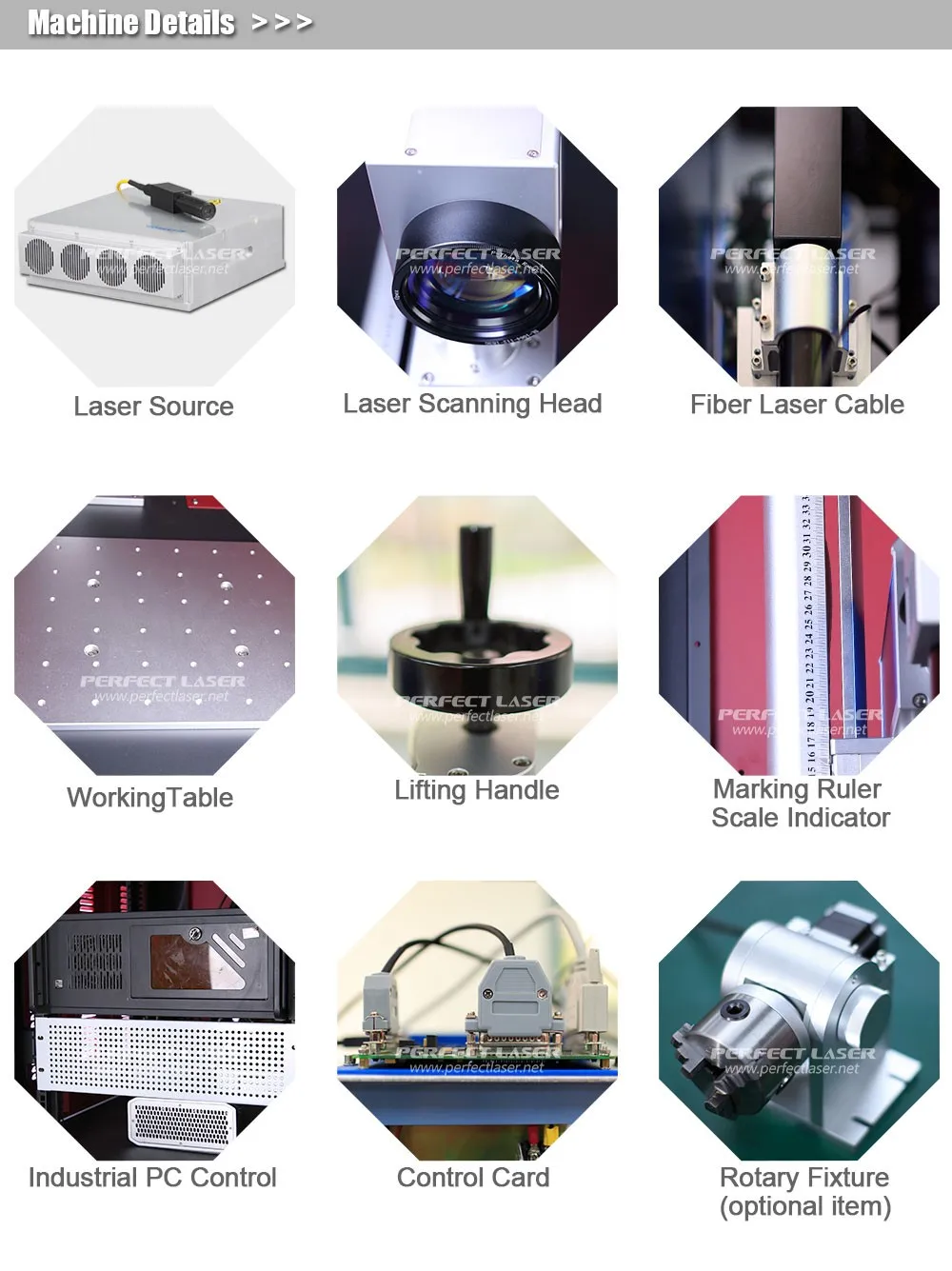

Detailed Images


The scope of application is wide, particularly suitable for making markings on hardware tools, kitchen tools, plastic products, computer keyboards, metal jewelry, buttons, integrated circuits, bottles packaging, spectacle frames, sanitary wares, faucets and other product. Markings are clear and beautiful, and will never disappear.
Environmental requirements are simple: without constant temperature and humidity environment, and water facilities. The cost is lowest and the maintenance is simplest.

Packing & Delivery

1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

2. Air-Worthy Packing or Sea Packing which comply with international standard.

Our Company

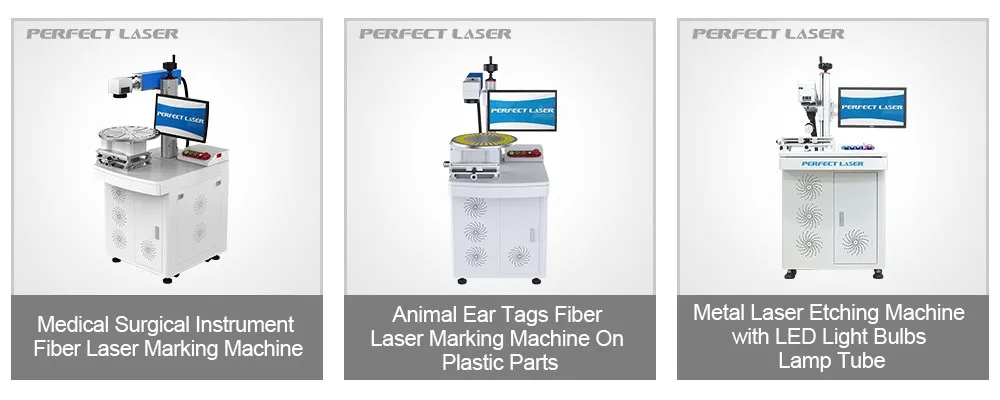

Other Products
Contact

Perfect Laser Co., Ltd. (China)

Vivian / Sales Department

Working Hours: 8:30 am~17:30 pm at Beijing time (Mon~Fri)

Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).

Tel: 0086-27-86791986 MP: 0086-13871253601 Fax: 0086-27-86775865

Skype: perfectlaser017 WhatsApp: 008613871253601 QQ: 1299406416

Email: vivian (at) perfectlaser.net

FAQ

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
