CO2 home laser cutting machine engraver for metal

FOB Reference Price:Get Latest Price
$4,900.00 - $6,000.00 / Units | 1 Unit/Units (Min. Order)
Power(W):
60W, 80W, 90W, 100W, 150W
Model Number:
PEDK-130180
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Field installation, commissioning and training
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Nonmetal such as acrylic wood MDF paper
Laser Type:
CO2
Engraving Speed:
0-60000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Engraving
Engraving Area:
1300*1800MM
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Hubei, China
Brand Name:
Perfectlaser
Dimension(L*W*H):
2690*1990*1080MM
Certification:
CE, ISO, FDA
Warranty:
2 Years
Machine name:
Chinese Laser Cutter Co2 Laser Cutter For Sale
Laser Power:
60W, 80W, 90W, 100W
Working Area:
1300*1800MM
Max Cutting Speed:
0-300mm/s
Max Engraving Speed:
1-60000mm/min
Cutting Platform:
Honeycomb or Flat Stripe
Voltage:
220V, 50HZ/60HZ
USB Interface:
Yes
Delivery:
5-7 Working Days by sea or air
Supply Ability
Supply Ability:
5000 Unit/Units per Year Chinese Laser Cutting Machine Co2 Laser Cutter For Sale
Packaging & Delivery
Packaging Details
3 layers package for Rubber engraving machine:
1.For the outside, we adopt wood craft case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Port
Shanghai or Shenzhen or Wuhan
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

CO2 home laser cutting machine engraver for metal

(Model PEDK-130180)

This co2 engraving and cutting series products adopt imported proprietary sliding guide,and equip with auxiliary facilities,such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities.Also,this series products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software.

Samples

Applied Industries

It has been widely used in the fields of plexiglass, architectural models, rubber plates, bamboo products.For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furnitures etc.

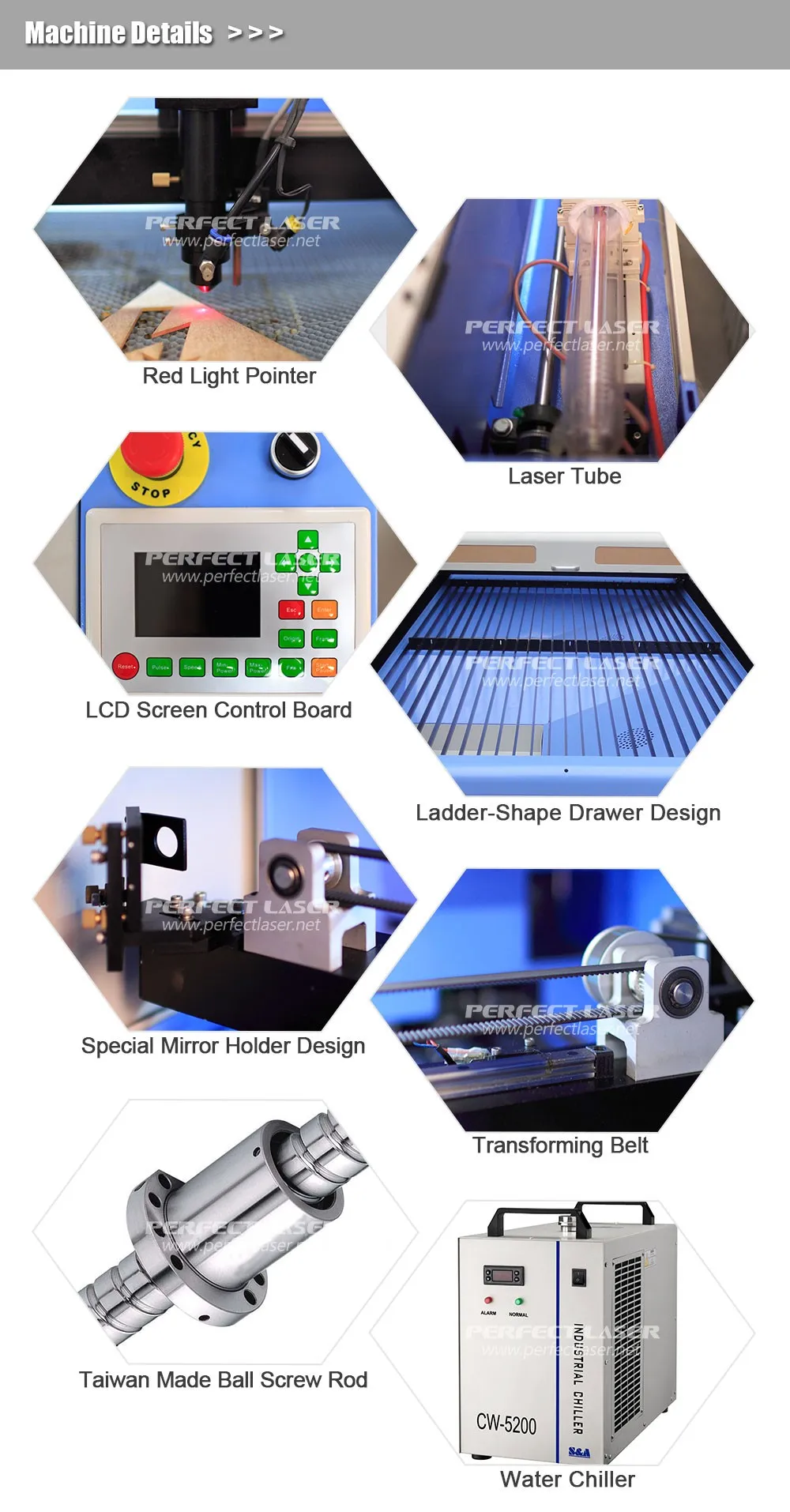

Detailed Image

Advantages of Laser Engraving & Cutting Machine

1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.


Technicial Data
SPECIFICATIONS FOR CO2 ENGRAVEING MACHINE
Laser Type
Hermetic and detached CO2 laser tube
Model
PEDK-130180
Laser Power
60W / 80W / 100W / 120W / 150W
Engraving Area
1300*1800mm
Engraving Speed
1-60000mm/min
Cutting Speed
1-10000mm/min
Repeating Location Accuracy
± 0.0125mm
Laser Power Controlling
1-100% Manual Adjustment and Software Controlling
Voltage
220V(±10%) 50Hz
Controling System
Original Perfect Laser Engraving & Cutting Software
Supporting Graphics Formats
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
Cooling Mode
CNC Professional Control System
Cutting Platform
Professional Thickening Strip or Honeycomb Work Table
Power Control Mode
Laser Energy Combining Movement Control System
Control Software
Original Perfect Laser Engraving & Cutting Software
Packing & Delivery
Packaging
Weight
800kgs
Packaging Details
1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard.
