Auto Blade Bending and Creasing Cutting Machine for die cutting

FOB Reference Price:Get Latest Price
$2,000.00 - $7,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
PEC-100
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 20 Sets) Less
Samples:
$20.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Place of Origin:
China
Brand Name:
Perfect Laser
Extra Services:
bending/ cutting /bridging/lipping
Condition:
New
Certification:
ce
Machine Type:
Beading Machine
Automation:
Automatic
Power:
CNC
Year:
newly
Applicable Industries:
Manufacturing Plant, Advertising Company
Key Selling Points:
Automatic
Weight (KG):
450
Max bending angle:
100°
bending thickness:
0.5-1.5mm
blade height:
8-30mm
blade thickness:
0.45/0.53/0.71/1.05mm
function:
bending alimunum steel
feeding precision:
±0.03mm
Key words:
Auto Bending Machine For Die Cutting
Product name:
Auto Blade Bending and Creasing Cutting Machine for die cutting
Weight:
450kg
Product Certification certification
CE Certified.
Valid from 2015-08-11 until 2049-12-31
Supply Ability
Supply Ability:
100 Set/Sets per Month Auto Blade Bending and Creasing Cutting Machine for die cutting
Packaging & Delivery
Packaging Details
compound wooden cases with exporting standard for Auto Blade Bending and Creasing Cutting Machine for die cutting
Port
Shanghai /Wuhan
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

 Auto Blade Bending and Creasing Cutting Machine for die cutting



Product Description






Auto Bending Machine For Die Cutting Product Description:

Two-track design, can work at one time to improve efficiency.
Auto bender track can realize functions of bending, bridge, flat cutting, front & back lipping, fast and precision.

Auto cutter track can realize auto-bridge and flat cutting, simple and practical.

Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.

Unique imported mould tool design, easy to bend pattern, high precision of size, durable

In order to guarantee precision and long-life span, transmission and control parts are imported

Self-developed latest bending control system, easy to operate and upgrade available.

Fully English interface, easy to learn how to operate, make bending work easy.

It can be installed soon after bending patterns form the machine, no need extra more hard work.

It’s widely used in box mould, doll mould bending, sticker die…etc.

Exactly to realize fully automatic bending, help to save plate making time.

It’s the first creation of die cutting industry to combine automatic bender and automatic cutter into one set to make highly automated die plates manufacturing.



Auto Bending Machine For Die Cutting Product Features :

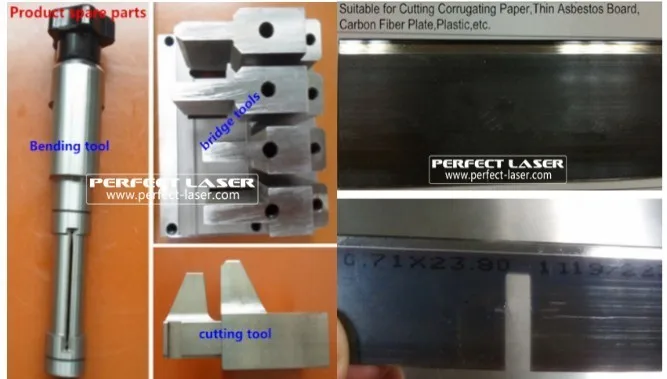

1.Panasonic servo motor & Taiwan Hiwin guide rail and Ball screw system, eradicate skidding and dislocated.

2.Unique imported mold tool design,easy to bend,high precision of size,durable.

3.Multifunction: bending, bridge, front lipping, back lipping, cutting, flat cutting, it’s CNC processing steel
rule auto bender machine for die cutting die making equipment.

4.Roller continuous feeding with servo digital work mode.(No need to feed with tool post repeated, high accuracy and speed)

5.Rely on the dxf, AutoCAD figures, can finish all kinds of complicated patterns.

6.Self- developed updated automatic bending control system with powerful function.

7.Full English & Chinese interface,easy to learn and easy to operate.

8.Apply to various kinds of mold processing, such as Paper boxes, Dolls, Cake Molds, Cartons,
Flowers and Edition..etc.

9. We take bend first and cut last, save the time and material for the user.



Auto Bending Machine For Die Cutting  Technical Parameter:



Technical Parameter



Model No.

PEC-100

Blade thickness (mm)

0.45, 0.53, 0.71, 1.05(mm)

Blade height (mm)

8 - 30mm

Front Min. Bending size (mm)

1.5mm

Back Min. Bending size (mm)

1.0mm

Feeding precision (mm)

±0.03mm

Bending flatness (mm)

±0.2mm

Max. Bending angle

100°

Min. ARC radius of 90° degree

0.4mm

Functions

Bending, cutting, bridging, lipping

Cutting methods

Swaying off or Auto flat cutting

Optimal pattern format

DXF

Barometric supply

0.6mpa

Voltage supply

380V 50/60HZ (standard)

Total power

1.3KW

Over dimension of machine

2700*1050*1350(mm)

Packaging dimension

1970*760*1370(mm)

Total weight

450KGS

H.S. Code

8462219000

Bending Blade thickness

0.45mm

Bending Blade height

8-12mm

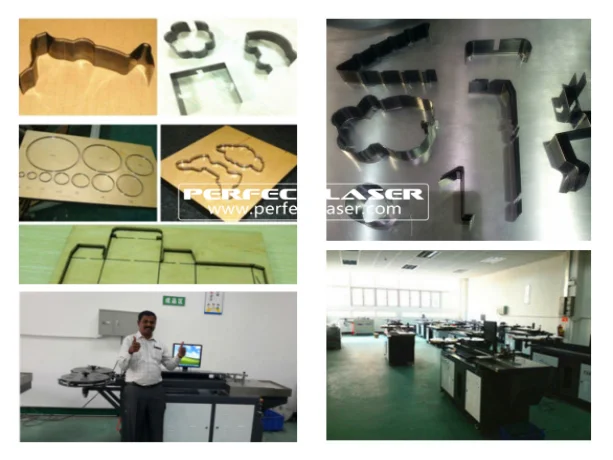

Application

 Blade Mould Show



Samples show:

Attentions:

1. Open air compressor.
2. Open air compressor switch.( pressure range 6-8kg/CM2)
3. Open power source and computer.
4.Open TSD bending software.
5. Bending machine reposition and back cutting feed.
6. Clear & dry working environment, to avoid drive broken.
7. Connect ground line effectively.
8. Strictly prohibited non-operator to operate bender machine.
9. Strictly prohibited to put in flammable goods around the bender machine.
10. Pay attention to daily maintenance.(daily, monthly, yearly maintenance)
11.Users should observe “No people, No power”.



Terms & Conditions:

Delivery Term:

FOB Shanghai Port.

Payment Term:

By T/T Payment

Delivery time:

Within 5-7 days after receive your payment.

Packing:

Wooden Box Comply with International Export Standard.

Quality Guarantee Terms:

Quality guarantee term is for 12 months. Malfunctions which are

caused by machine and quality will be responsible for our manufacturer.

Other malfunctions which are caused by operation mistakes, man-made problems,

 etc will be responsible for clients-self.

Validity Time:

The period of validity for this quotation is 4 weeks.
