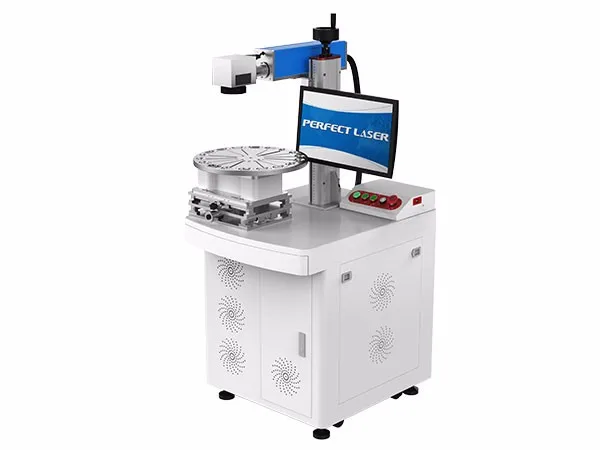

Surgical Instrument Marking System is designed for surgical scissors, which is a new generation of optical medical laser etching machine. It is equipped with a professional customized worktable. Fast rotating, automatic positioning, batch marking, greatly improving the efficiency of work.
The German imported laser source and high-speed scanning galvanometer system can achieve fine and accurate marking effect. This model medical laser marking machine has the characteristics of fast scanning, high repetition accuracy and good durability. It effectively guarantees the marking quality and aesthetic effect.
And this surgical marker is especially suitable for areas with high requirement for depth, smoothness and fineness. At the same time, the rotary table developed by the company can be customized according to the actual material and actual size of the customer.
Fiber laser marking machine enjoys the advantages of easy operation, low running cost, long-term trouble –free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
With Scanlab Scan adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high quality laser mode, this model Laser Marking Equipment boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production.
Introduction about Laser Marking Machine PEDB-400A https://youtu.be/REeHeG73S8M Working video Fiber Laser Marking Machine-PEDB-400A https://youtu.be/_ImkPrCPM6U Working video Fiber Laser Marking Machine-PEDB-400B https://youtu.be/wMhxO_PXpR4

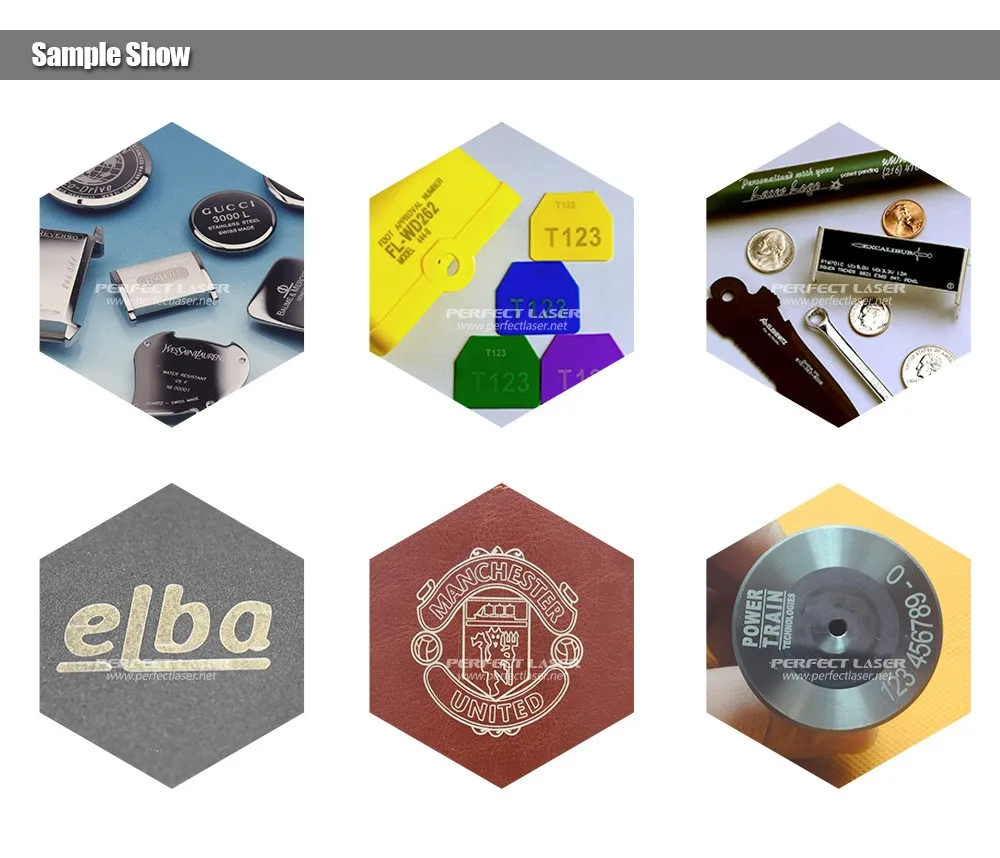

Applicable materials This medical laser marking machine is widely applied in metal and nonmetallic materials, high hard alloy, oxide, electroplating, coating, ABS, epoxy resin, ink, engineering plastics and so on. It is applied to the fields of higher depth, smoothness and fineness, such as scissors, die industry, bitmap marking, etc.
Applicable industry This medical laser marking machine is widely applied in medical equipment, hardware tools, jewelry, sanitary ware, measuring tools, plastictranslucent keys, IC chip, parts, digital products, precision instruments, watch glasses, electrical appliances, electronic components, hardware accessories, mobile phone parts, auto parts, plastic products, building materials, pipes and other high precision product identification.
1. This medical laser marking machine can be accurately marked on surgical tools, medical instruments and other products. Different from the ink jet machine, the marking label is durable, which is not easy to smear, and will not be changed because of the environment (acid, alkali, moisture, etc).
2. High precision: the minimum line width of the medical laser marking machine is only 0.06mm. The mark result is clear, lasting and beautiful. This medical laser etching machine can meet the need to print a lot of data on a tiny piece of production
3. The surgical marker engraved by the optical medical laser marking technique is not easy to be copied and changed, and has a strong anti-counterfeiting property.
4. The marking speed is fast and the medical laser etching machine is marked once, without consumable material. the whole energy consumption is low, the service life is long, and the cost is low.
5. The laser system of this medical laser etching machine is highly integrated, free of daily maintenance, mature technology, energy saving and environmental protection.
6. Special configured turntable fixture, with the software rotary marking function, the medical laser marking machine can be used in a large batch of scissors on the marking of graphics and characters.
7. The surgical instrument marking system is simple and easy to learn . It can meet all kinds of marking requirements and effectively improve work quality and efficiency.
PEDB-410 Surgical Marker
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Nominal average output power
10W - 50W For PEDB-400J
Central emission wavelength
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)
Long-term average power instability
Laser switching OFF/ON time
Pulse Repetition Rate* kHz
Energy per pulse (PRR = 20 kHz)
Typical beam quality, M2
Output fiber delivery length
Max. Power consumption
110mm×110mm (F-theta 160)
≤ 40 micron (F-theta 160)
650nm diode laser, visible red light for marking guide
Continuous working time
45~85% (no condensation)
Laser Mark (English Version)
1. High quality imported fiber laser, the adaptability of the material is very wide, you can make a very fine mark on the surface of a variety of materials, and cutting durability of the metal laser etching machine is very good.
2. The metal laser etching machine is easy to operate, simple, fast, efficient, according to their wishes to design their desired logo, clear and convenient, high satisfaction.
3. The speed block of the closed fiber marking machine is 2-3 times of that of the traditional marking machine.
4. All parts of the laser coding machine are integrated, compact, firm, light, compact, and better performance.
5. Closed fiber laser etching processing, no pollution source, energy saving, environmental protection, no supplies, to save costs for customers
6. Closed fiber laser coding machine without any maintenance, long service life, small size, easy to move, can change the position with the environment, suitable for harsh environment work.
Packing & Delivery

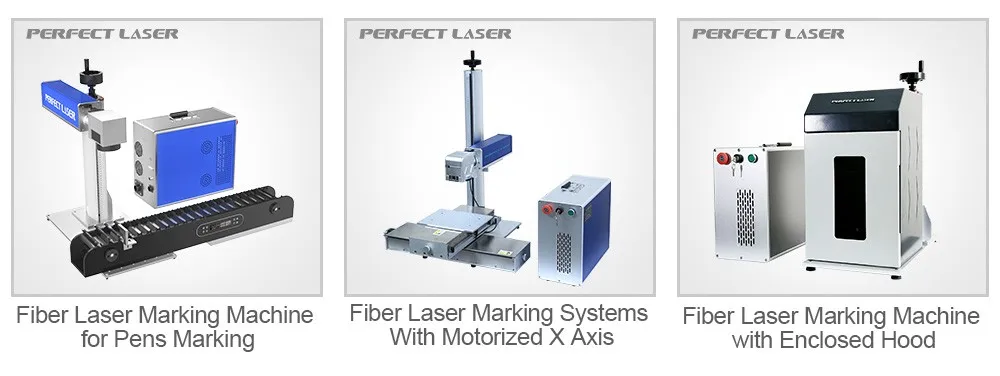

Perfect Laser design fiber laser marking machine with mini type, portable type, desktop type, lifting type, colorful type, standby type, full-closed type. Also provide rotary type fiber laser engraver, UV purple light metal laser engraver, 3D dynamic focus shifting working table fiber laser etcher for your choice. Widely used for metal engraving and some non-metal such as hard plastic including phone cell,animal ear tag marking,etc.
