Heavy duty desk type plasma cnc cutting machine

FOB Reference Price:Get Latest Price
$8,300.00 - $11,500.00 / Unit | 1.0 Unit/Units (Min. Order)
Effective Cutting Range (mm):
3000*1500
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Samples:
$5.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Motor Type:
Stepper Motor
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Fiber Laser
Voltage:
380v/3p
Rated Power:
20kw
Dimension(L*W*H):
3*4m
Certification:
CE ISO FDA
Weight (KG):
550
Key Selling Points:
Long Service Life
Applicable Industries:
Manufacturing Plant, Construction works , Advertising Company
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Marketing Type:
Hot Product 2019
Machinery Test Report:
Not Available
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Motor, PLC
Type:
CNC Plasma Cutters
Product name:
Heavy duty desk type plasma cnc cutting machine
Plasma Cutting Thickness:
3-50mm
Cutting Torch Lifting Stroke:
60mm
Machine Running Speed:
50-45000mm/min
Velocity Error:
≤±5%
Vertical Line Accuracy:
±0.2mm/10m
Linear Repetition Accuracy:
±0.4mm/10m
Positioning Precision:
0.1mm
Warranty:
1 Year
Product Certification certification
CE Certified.
Valid from 2015-08-11 until 2025-08-10
Supply Ability
Supply Ability:
5000 Unit/Units per Year Heavy duty desk type plasma cnc cutting machine
Packaging & Delivery
Packaging Details
3 layers package for machine:
1.For the outside, we adopt wood craft case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Port
Shanghai, Wuhan, Shenzhen
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

Heavy duty desk type plasma cnc cutting machine

(Model:PE-CUT-A3)

Automatic Industrial Desktop cnc plasma cutter PE-CUT-A3 adopts heavy machine tool design , it combined with the high speed cnc plasma cutting and the need for plate processing heavy machine stability. Berefore, this best plasma cutter has good rigidity and long stability as well as a significant advantage in thick steel and aluminum materials in cutting 1-20 mm. At the same time, the plasma cutters for sale is equipped with automatic height adjustment system, it can improve work efficiency and save costs.

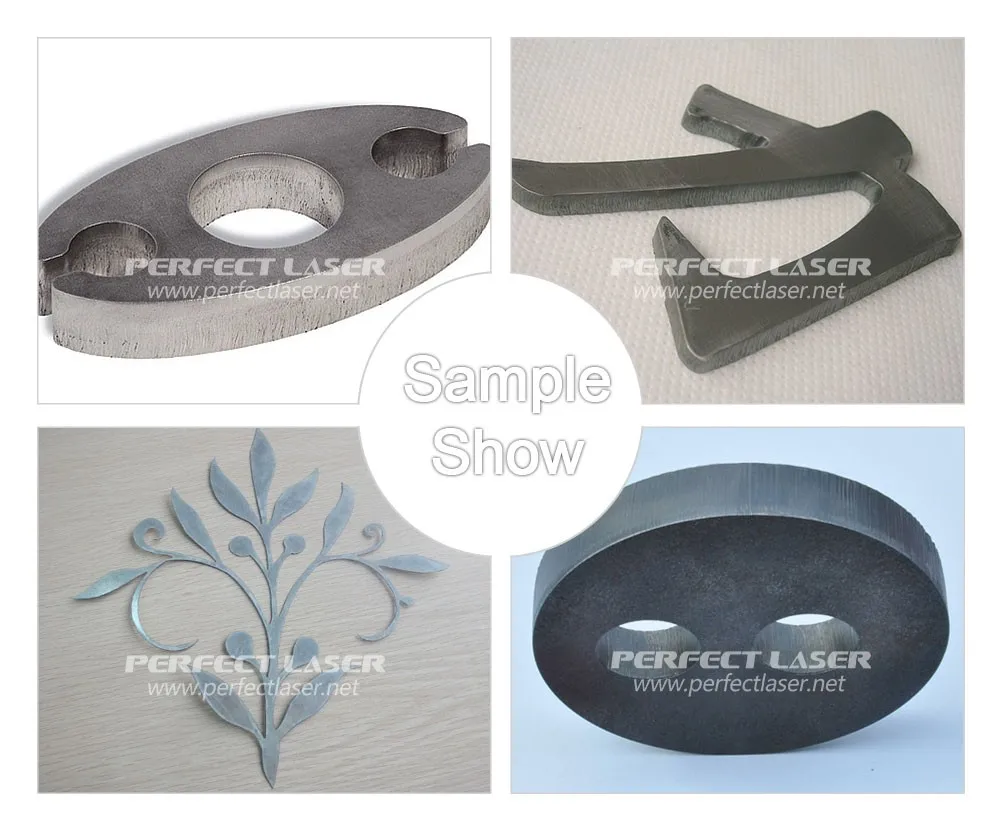

Samples

Application

Printing Material: This kind of cnc plasma cutting machine is widely applied in special-shaped carbon steel, manganese steel, stainless steel, non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel) and other metal materials of large, medium and small plates.

Application field: This kind of cnc plasma cutting machine is widely applied in shipbuilding industry, heavy machinery, petrochemical, power equipment, boiler manufacturing, machinery manufacturing, aerospace, vehicle manufacturing.

Detailed Images

Product Features

1.Maximum working area of the cnc plasma cutting machine:1.5*3M; Cutting thickness: 5MM; The maximum cutting thickness: 25MM

2.Processing materials of the cnc plasma cutting machine: cold binding plate, stainless steel plate, galvanized sheet, copper plate, aluminum plate and other metal sheet.

3.This cnc plasma cutter is specially developed for the cutting of sheet metal, and the cutting accuracy and effect have reached the requirements of the industry.

4. This cnc plasma cutter can support AI, DXF, PLT, and other graphics data format;this plasma cutting table is also able to accept MasterCam, Type3, Wen Tai software generated international standard G code.

5. The CNC system of the best plasma cutter uses the current advanced integrated module control mode, which ensure that the equipment in high precision, high stability in the state of reliable operation

6. With Automatic calculation of cutting slot compensation, the plasma cutting table can greatly reduce the production time processing of data and can ensure accurate processing of graphic size.

7. The cnc plasma cutter with automatically optimize the order of processing, but also manual adjustment, reduce processing time, improve processing efficiency.

8. Unique breakpoint, power failure processing, the processing process of the cnc plasma cutting machine can track along, back, flexible handling process encountered arcing, power failure.

9.After the system transfers graphics and image data, the cnc plasma cutter can edit and edit such as zoom, rotate, align, copy, combine, split, smooth, merge, etc.

10.This cnc plasma cutting machine can increase the output and programming operation of the front and back table as well as the cutting function of the machining area and the border.

11.Automatic arc, automatic adjusting system, cutting steel plate with rugged automatic adjustment function, to ensure uniform distance between the cutting torch and the plate cutting, thus the cnc plasma cutter can ensure the cutting quality.

Technical Data
Model
PE-CUT-A3
Effective Cutting Width(㎜)
Track Gauge-1500
Effective Cutting Length(㎜)
Gauge Length-3000
Plasma Cutting Thickness(mm)
1-25mm
Cutting Torch Lifting Stroke(㎜)
60mm
Machine Running Speed(mm/min)
50-45000mm/min
Velocity Error(%)
≤±5%
Automatic Height Adjustment Accuracy(MM)
≤±1.0mm
Weight
550KG
Vertical Line Accuracy
±0.2mm/10m
Linear Repetition Accuracy
±0.4mm/10m
Installation Accuracy of Rail
Rail Side Straightness:0.5mm/10000mm
The parallel degree between the rail and the horizontal
plane of the guide rail:±0.5mm/10000mm
Positioning Precision
0.1㎜
A)Equipment positioning accuracy and repeatability: conform to JB/T5102-1999 standard

B)Cutting dimension accuracy, section quality: conform to JB/T10045.3-1999 standard
Straightness
0.2㎜
Roundness
0.2㎜
Diagonal Difference
0.3㎜
Repeated Positioning Accuracy
0.5㎜
Machine Marking Accuracy
≤0.5m
Cutting Surface Quality(Roughnes) (σ=25)
RZ(um)=70+1.2a
Visual Measurement: roughness12.5
Packing & Delivery

Packing Details : 3 layers package for machine:
1.For the outside, we adopt wood craft case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by thickening plastic bag for waterproof.


Delivery Port : Shanghai / Guangzhou / Shenzhen

Certifications

As ISO9001: 2000 certified wall printer manufacturer, Perfect Laser is committed to providing customers with high-quality, reliable wall printing machine.

As a result of our quality control measures, our machine all have got CE certification. Perfect Laser also has got ISO and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played an important role.

Our Company

Perfect Laser is a world famous manufacturer of wall printer. Since 1995, Perfect Laser focused on the development and production of various types of wall printer machinery

Perfect Laser brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel.

Perfect Laser eatalished 2 R&D center in Changchun and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad, work closely with national 63 patents, a number of the core technological achievements and technical indicators at the international advanced level.

To be the customer of Perfect Laser, we will cooperate based on complete trust and comfortable. You will find we are a reputable supplier and worth your trust. We understand every customer is valuable and will value every chance you give to us.

1. 1 year guarantee for main machine ( Artifical damage are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.

5. Free training installation and operation for the staffs..
