High Power Laser Welder Machine Stainless Steel PE-W500 Welding Tool For Metal

FOB Reference Price:Get Latest Price
$6,900.00 - $12,400.00 / Units | 1 Unit/Units (Min. Order)
Power(W):
300w 500w
Model Number:
PE-W300 PE-W450
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Usage:
Welding
Max. Output Power:
500W
Applicable Industries:
Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Single Pulse Energy:
90J
Pulse Width:
<10ms
Wavelength:
1064nm
Focal Spot Diameter:
0.2mm~3mm
Dimensions:
750*1000mm
Certification:
CE, ISO, FDA
Warranty:
2 Years
Laser Source Brand:
MAX
Key Selling Points:
Easy to Operate
Cooling System:
Water Cooling
Laser wavelength:
1064nm Laser Welding Wire
Laser type:
ND:YAG Pulse
Power supply:
220v/50Hz
Welding Area:
750*1000mm
Application:
advertisement word and all kinds of metal marking LED metal
Spot Size:
0.2-3.0mm
Impulse width:
≤10ms
Model name:
PE-W300II PE-W500II
Product Certification Verified
CE Certified.
Valid from 2017-03-01 until 2022-02-28
Supply Ability
Supply Ability:
5000 Unit/Units per Year chennel letter laser welding machine agents wanted
Packaging & Delivery
Packaging Details
Compound wooden cases comply with international exporting standard for chennel letter laser welding machine
Port
Shanghai/ Shenzhen/Wuhan
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Product Description

High Power Laser Welder Machine Stainless Steel PE-W500 Welding Tool For Metal


(Model:PE-W300, PE-W500)

Contact: Candy        Skype: perfectlaser014       Whatsapp/wechat: 86 139 8602 6676

The aluminum and stainless steel laser welding machine is used for making a variety of aluminum and stainless steel letter welding, LED luminous characters, AD Logos, aluminum signs and other fast welding.


The aluminum and stainless steel laser welding machine weld 0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum alloy (use 500w laser welder).

The aluminum and stainless steel laser welding machine can be called channel lettter laser welder, aluminum and stainless steel letter laser welding machine,stainless steel tape welding machine,stainless steel strip laser welder.


Perfect Laser Laser Welding Machine PE-W300II   https://youtu.be/CF9G6fHqpX8

Channel Letter Welding Machine for Aluminum Working Video PE W500II

https://youtu.be/O1PBp5PZihM

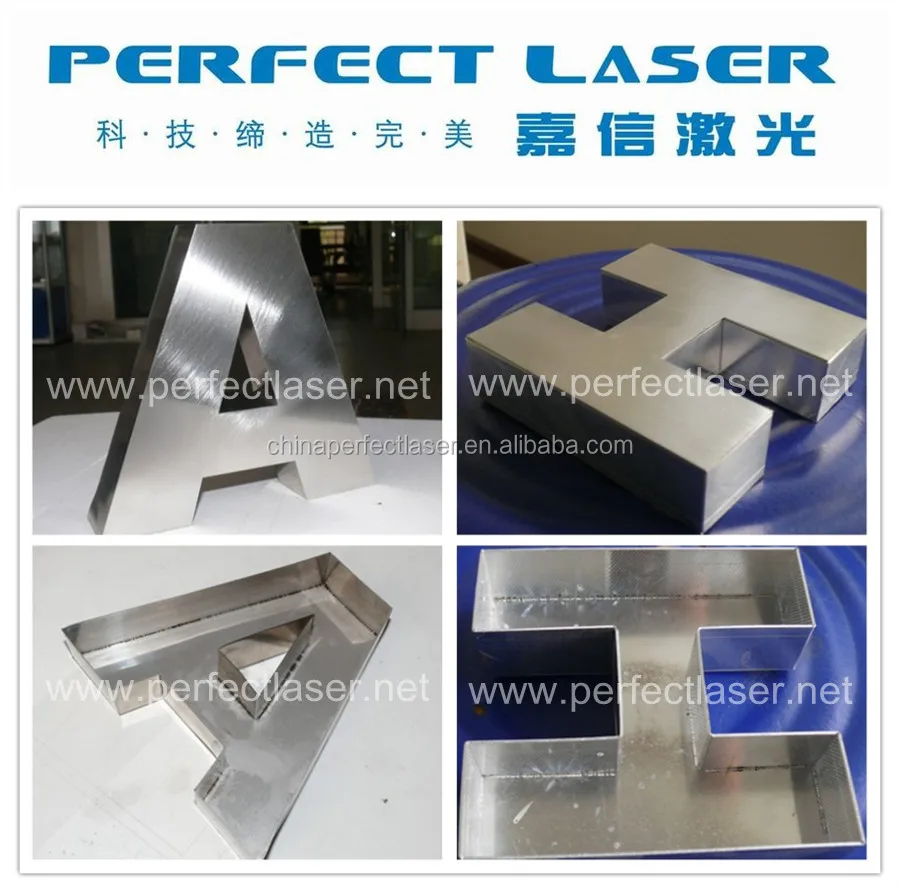

Sample Show

Features

This type channel letter welding machine is mainly used to welding stainless steel channel letters.

1. Adopt double welding path with 5 meter length fiber laser cable, which brings large convenience for your welding job, the double path laser welding machine is suitable for weld large size SS channel letters which can not move easily.


2. Fiber cable is soft, enable laser head electrically move back and forth, up and down, left and right and rotate 360 degree.


3. Heat affected zone is small. The work piece surface of the double path laser welding machine will not deformed.


4. For letters in the advertising industry, there is specially lengthened optical path and the telescopic scope can be added to 800mm.


5. There is no raised spot after welding. No requirement of polishing process. Saving time and labor. The appearance of channel letter welding machine is beautiful and tight.


6. There is CCD monitor. The welding effect of the double path laser welding machine is more clear and intuitive.


7. The double path laser welding machine specially designed long focal distance lens Focus distance is 200mm to meet the demand for ultra-high font welding.

Products Details

The channel letter welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs and other fast welding.

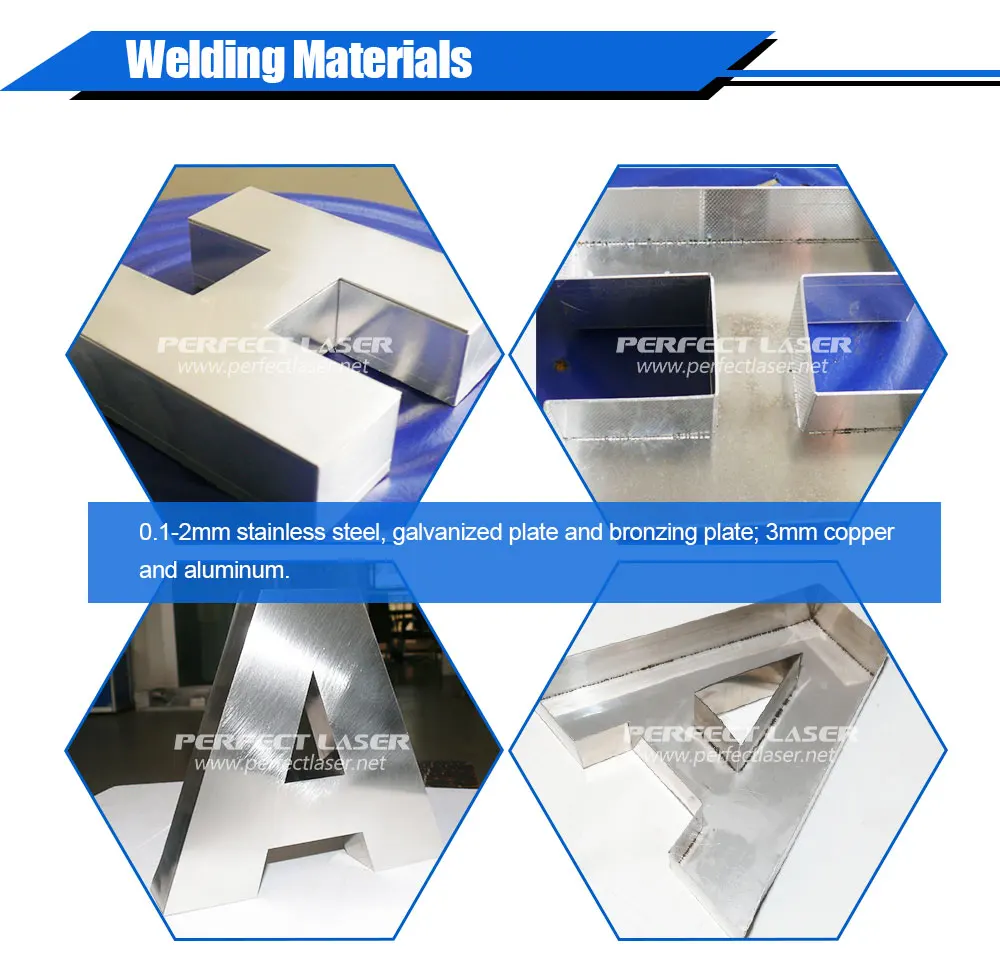

Welding Materials:
0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum (500w laser welder).

The channel letter welding machine also called handheld laser welding machine,portable laser welding machine,advertising letter welding machine,laser welder for sale.

Technical Paremeters
Product Name
Advertising Letter Laser Welding Machine
Model
PE-W300II       PE-W500II
Max laser power
300W   500W
Laser wave-length
1064nm
Single power energy
100J   120J
Welding Depth for Carbon Steel/ Stainless Steel / Galvanized Steel / Golden-Plate Steel
0.5-2mm
Welding Depth for Brass, Aluminum Alloy
0.1-1mm
Pulse width
0.3-20ms
Welding frequency
0.5-40HZ
 Adjustable facular size
0.2-2mm
Power consumed
≤9KW
Laser Cavity
UK imported "Morgen" Brand
Laser Lamp
Single lamp                 Double lamp
Electrical source
220V /1phase /50Hz/ 40A                  380V/3 phase/50 hz
Standard worktable
800*1000mm
Positioning
CCD Screen + Red Dot Pointer
2-linertary
200mm
Mobile level
200mm
Packing & Delivery

Packing Details  : 3 layers package for machine:

1.For the outside, we adopt wood craft case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Delivery Port : Shanghai / Guangzhou / Shenzhen


FQA

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Certification

As ISO9001: 2000 certified wall printer manufacturer, Perfect Laser is committed to providing customers with high-quality, reliable wall printing machine.

As a result of our quality control measures, our machine all have got CE certification. Perfect Laser also has got ISO and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played an important role.


To be the customer of Perfect Laser, we will cooperate based on complete trust and comfortable. You will find we are a reputable supplier and worth your trust. We understand every customer is valuable and will value every chance you give to us.

1. 1 year guarantee for main machine ( Artifical damage are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
