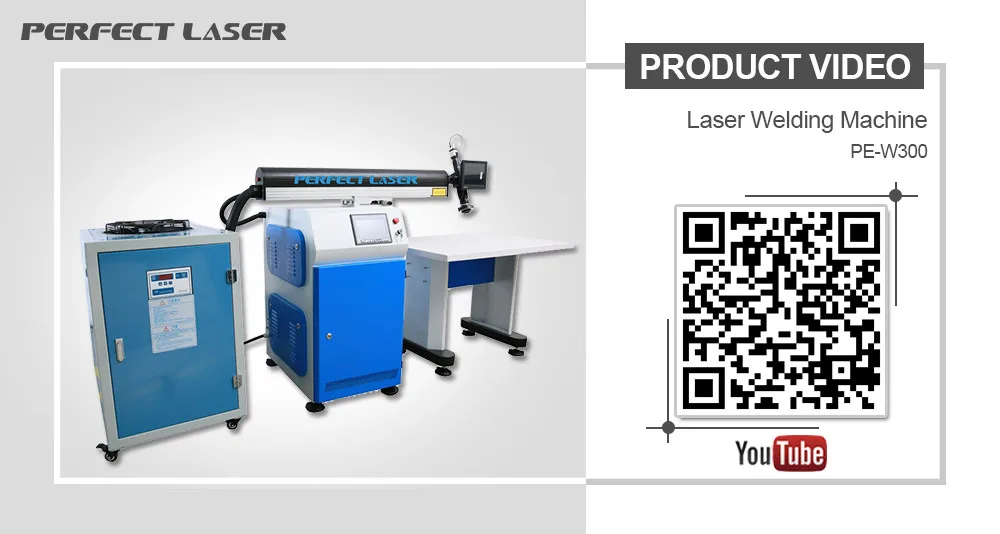

popular ad signs laser welding machine/laser welder for metal letters

FOB Reference Price:Get Latest Price
$3,000.00 - $6,900.00 / Unit | 1 Unit/Units (Min. Order)
Power(W):
300W
Model Number:
PE-W300 450 600
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Usage:
Laser Welding Machine
Max. Output Power:
300W
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Single Pulse Energy:
90J
Pulse Width:
≤10ms
Wavelength:
1064 Nm
Focal Spot Diameter:
0.2~3.0mm
Dimensions:
1400*800*1100mm
Certification:
CE, ISO, FDA
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Laser Source Brand:
RAYCUS
Laser Head Brand:
Perfect Laser
Guiderail Brand:
Perfect Laser
Control System Brand:
Perfect Laser
Key Selling Points:
Multifunctional
Applicable Industries:
Manufacturing Plant, Advertising Company
Path:
Single path
Working Area:
750*1000MM
Load Bearing:
≤200KG
Laser Type:
Nd:YAG impulse xenon lamp
Impulse Rate:
≤30Hz
Laser Wave Length:
1064nm
Impulse Width:
≤10ms
Laser Output Focal Length:
150-250mm
Product name:
micro laser welding machine
Product Certification certification
RoHS Certified.
Supply Ability
Supply Ability:
5000 Unit/Units per Year micro laser welding machine
Packaging & Delivery
Packaging Details
Packing method:Inner with strong PE foam,outer with standard exported wooden case.
Packing dimension:1.81*0.89*1.38M
Gross weight:200KG
Shipping way:By air,By DHL,By sea,By truck,By railway accordingly.
Port
Shanghai,Shenzhen,Guangzhou etc.
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

High Quality Letter Laser Soldering Machine Stainless Steel Spot Aluminium Laser Welding Machine Price

(Model:PE-W300)

Main Features

1.Red light finds the welding point fast, CCD intuitive observation, optional microscope.
2.Marble working platform, to ensure that the bright face plate does not scratch.
3.Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.
4.Small thermal deformation and heat affected zone.
5.local heat treatment can be carried out on the metal word;
6.Available for the processing of complex shape of parts and small words.
7.Processing without noise, no pollution to the environment;
8.Ultra fine bearing rotating positioning rod, friction plate welding word, also need not adjust the spot position in the font corner.
9.Owing to the advanced processing method, the quality of the existing metal character is greatly improved.
10.LED ring special lighting lamp, no dead spot.
11. The self-produced high peak laser power supply, for other brand is difficult to weld aluminum. The machine can easily achieve (400W models for welding aluminum models).
12 standard models and double light path optional hard light welding small, 5 meter long fiber welding with Chinese characters.

Detailed Images
Technical parameter
Model
PE-W300
PE-W450
Name
300W single light Laser welding machine
400W double light Laser welding machine
Machinery Part
Laser cavity length of 1100 mm, the laser head can rotate 360 degrees.
Working Area
750*1000MM
Load Bearing
≤200KG
Machine Power Supply
220V±10%/50/60Hz
380V±10%/50/60Hz
Laser Type
Nd:YAG impulse xenon lamp
Spot Size
0.2-3.0mm
Laser Wave Length
1064nm
Impulse Width
≤10ms
Laser Power
300W
450W
Single Pulse Energy
90J
120J
Impulse Rate
≤30Hz
≤50Hz
Laser Output Focal Length
150-250mm
Laser Cooling
Water cooling
Cooling Capacity
2700W
5000W
Total Power
<7KW
<12KW
Viewing System
CCD
Machine Size
Water Chiller
1400*800*1100mm
600*420*750mm
1500*800*1100mm
900*600*950mm
Package Size(machine body)
1500*830*1240mm
1600*800*1240mm
960*760*1150mm
Gross Weight
280KG
430KG
Samples show

Applicable Industry

Laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs and other fast welding.Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on.

Applied Materials

0.1-2mm stainless steel, galvanized plate and bronzing plate; 1mm copper and aluminum.

Packing & Delivery
Packing method
Inner with strong PE foam,outer with standard exported wooden box
Packing dimension
1.81*0.89*1.38M
Gross weight
200KG

Shipping way
By air about 2-5 days
Door to door by international express like DHL,TNT about 2-5 days
By sea about 20-30 days
By truck or by railway about 20-30 days
