Electronic And Hardware Industry Hard Metal High Frequency Laser Welding Machine

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Unit | 1 Unit/Units (Min. Order)
Power(W):
200W
Model Number:
PE-W200M/300M/400M
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Usage:
Metal Welding
Max. Output Power:
180W
Condition:
New
Warranty:
1 Year
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Certification:
CE, ISO, FDA
Dimensions:
1250*580*1200mm
Single Pulse Energy:
200W
Pulse Width:
≤20ms
Focal Spot Diameter:
100mm
Wavelength:
1064nm
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Advertising Company
Laser Source Brand:
0
Laser Head Brand:
0
Control System Brand:
self-develop
Guiderail Brand:
0
Key Selling Points:
Multifunctional
Product name:
Hardware Industry Hard Metal High Frequency Laser Welding Machine
Working Table:
Three Axis table, X=250mm,Y=180mm
Table capacity:
≤200 KGS
Machine battery:
220V±10%/50/60z
Laser type:
Nd:YAG pulse xenon lamp
Spot adjusting range:
0.1 - 3mm
Pulse frequency:
≤50Hz
Laser cooling:
Water cooling
Protective gas:
1 (argon)
Cold water capacity:
2700W
After-sales Service Provided:
Online support
Product Certification certification
CE Certified.
Valid from 2017-03-01 until 2022-02-28
RoHS Certified.
Valid from 2016-09-02 until 2049-12-31
Supply Ability
Supply Ability:
5000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Sea-Worthy Packing or Air-Worthy Packing for Electronic And Hardware Industry Hard Metal High Frequency Laser Welding Machine
Port
Shanghai, Shenzhen, Wuhan
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

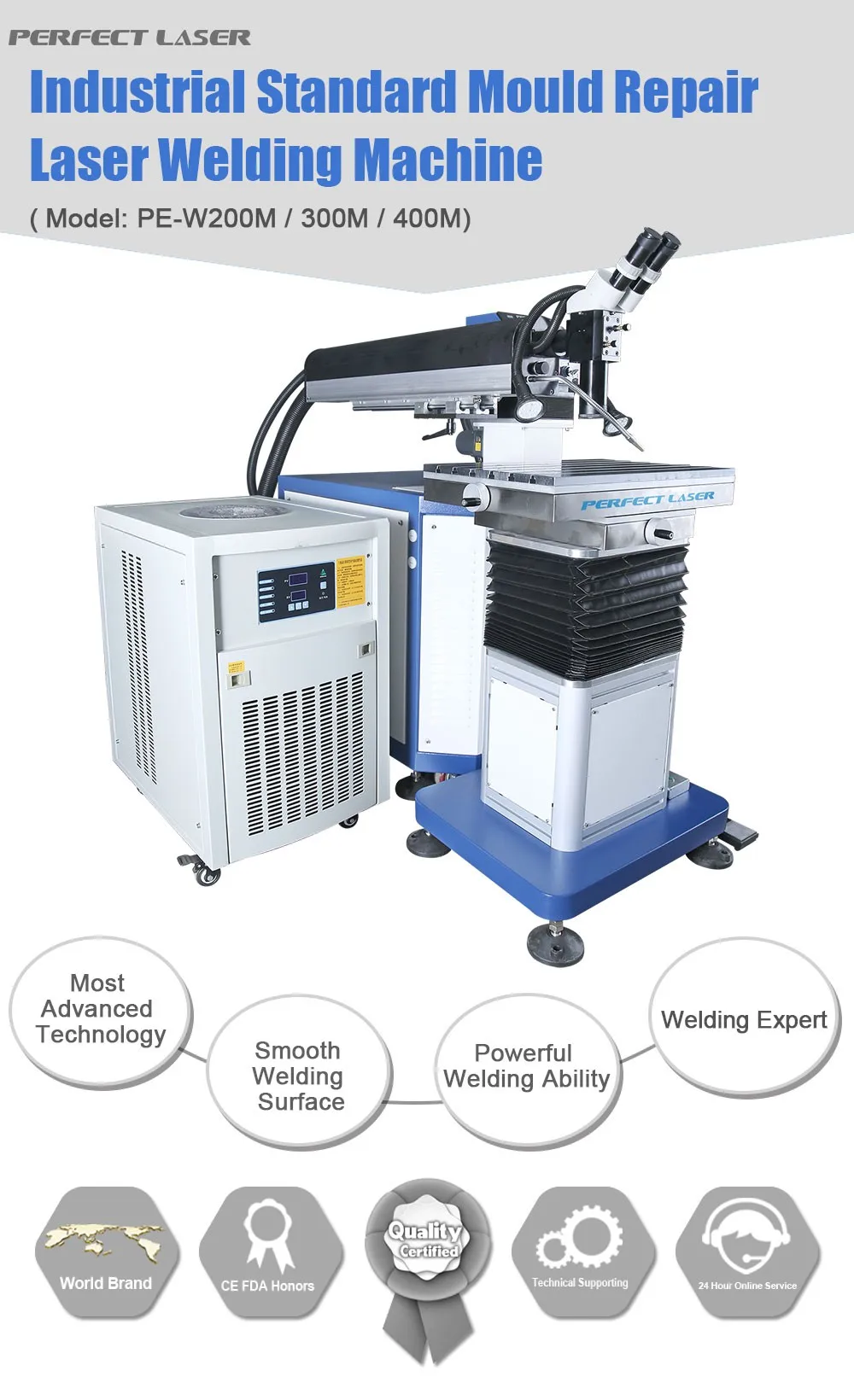

Electronic And Hardware Industry Hard Metal High Frequency Laser Welding Machine


(PE-W200M/300M/400M)

contact :Emma                   Email: emma(@)perfectlaser.net       Ph/Wsap: +86 138 86034275

Perfect laser, offering laser application solutions, its laser welding machine series has been developed for more than 10 years. Self developed and core international key parts,the welding machine with lowest failure rate win trust from customers at home and abroad. You are sure to be satisfied with our welding machine.
Equipped with industrial touch screen control system, the welding joints diameter is only 0.2-0.5mm. No deformation and the material can be etched without any damage. No trachoma,no stomata with smooth welding edge. You can re-use the original mold after repair, which will greatly improve efficiency and reduce cost.

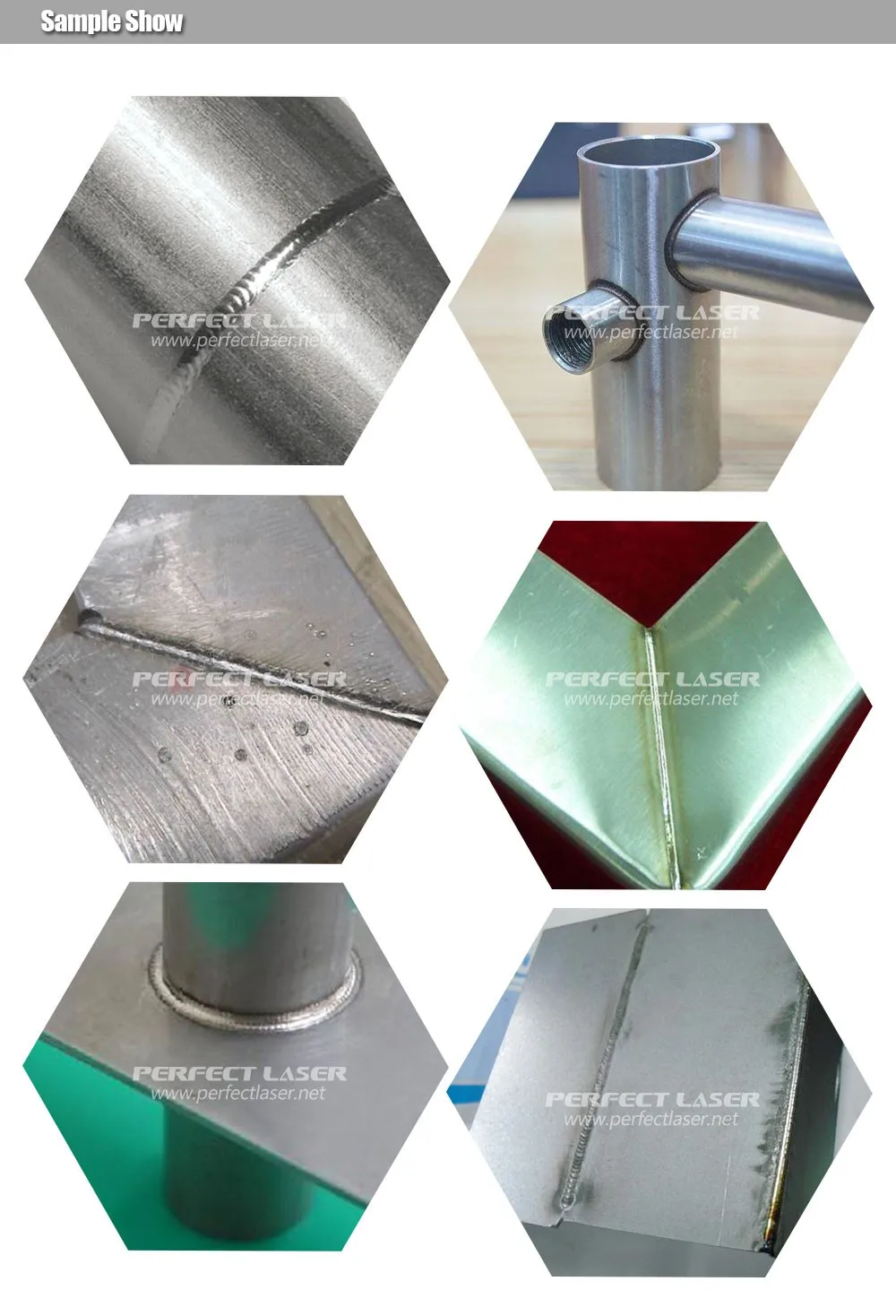

Samples

Applicable materials: high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness aluminum alloy and other metal materials.
Applicable industry: digital products , mobile phones, toys, automobiles, motorcycles and other mould marking industries.

Detailed Images

Feature

1.Specifically designed for mould industry, it has introduced German technology and adopted unique structure design, and is suitable for all kind of large, medium and small mould repair.
2.Adopt UK ceramic light-gathering cavity, it is anti-corrosion and heat-resistance, the service life is up to 8-10 years, and more than 8 million times life of Xenon lamp.
3.Using the World's most advanced automatic shading system, it eliminates the stimulation to the eyes in work.
4.The laser head can rotate 360 degrees, overall light path can rotate 360 degrees ,and it is more convenient for different objects position welding.
5.The workbench adopts electric hoist and fixes focus more quickly.
6.Parameter adjustment adopts intelligent remote control, the operation is simple and quick.

Technical Parameters
Type
PE-W200M
PE-W300M
PE-W400M
Three axis table
X=250mm,Y=180mm
Table capacity
≤200KG
≤200KG
≤200KG
Machine battery
220V±10%/50/60z
380V±10%/50/60Hz
380V±10%/50/60Hz
Laser type
Nd:YAG pulse xenon lamp
Nd:YAG pulse xenon lamp
Nd:YAG pulse xenon lamp
Spot adjusting range
0.1~3mm
0.1~3mm
0.1~3mm
Peak wavelength
1064nm
1064nm
1064nm
Pulse width
≤20ms
≤20ms
≤20ms
Rated output power
180W
270W
360W
Maximum laser power
200W
300W
400W
Pulse frequency
≤50Hz
≤50Hz
≤50Hz
Laser output focal length
100mm
100mm
100mm
Laser cooling
Water cooling
Water cooling
Water cooling
Monitor
Microscope( rotate 360º)
Microscope( rotate 360º)
Microscope( rotate 360º)
Protective gas
1(argon)
1(argon)
1(argon)
Cold water capacity
2700W
3500W
5000W
Wire diamter
0.1mm~0.6mm
0.1mm~0.8mm
0.1mm~1.0mm
Dimension
Main engine
1250*580*1200mm
Chiller
700*500*900mm
Main engine
1250*580*1200mm
Chiller
700*500*900mm
Main engine
1250*580*1200mm
Chiller
700*500*900mm
Power
900*600*700MM
Packing & Delivery
Certifications
Our Company

Perfect Laser Co., Ltd is a professional manufacturer of industrial laser equipments, in China "Optics Valley" - Wuhan City. Since 1995, we focused on the development and production of various types of laser machinery and CNC equipments.


Welcome to visit our website at www.perfectlaser.net

Contact

Perfect Laser Co., Ltd

Emma /Sales Department

Skype: perfectlaser020

Whatsapp/MP: +86 138 8603 4275

Email: emma(@)perfectlaser.net

Tel: 0086 2786791986      Fax: 0086 2786775865

Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200)
