PVC OOI Micro Memory Card IC Laser Marking Machine

FOB Reference Price:Get Latest Price
$16,000.00 - $34,000.00 / Unit | 1 Unit/Units (Min. Order)
Power(W):
30W/50W/100W
Model Number:
PEDB-400F
Lead Time:
Quantity(Units) 1 - 3 >3
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Marking
Laser Type:
Fiber Laser
Working Accuracy:
0.001mm
Graphic Format Supported:
DXF, PLT
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Certification:
CE, ISO, FDA
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Dynamic focusing:
Highest Precision, deep engraving
Pulse energy:
1MJ
The laser wavelength:
1064nm
Marking the scope:
110mm*110mm, 175mm*175mm, 300mm*300mm
Focusing range:
≤±20mm
Marking way:
XYZ Triaxial Dynamic Focusing
Speed:
≤10000mm/s
The input file:
PLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG/TIF etc.
The input power:
Single phase110V/220VOptional /50~60HZ
Supply Ability
Supply Ability:
5000 Unit/Units per Year ic laser marking machine
Packaging & Delivery
Packaging Details
standard exporting wooden cases
Port
Shanghai,shenzhen,wuhan
Lead Time :
Quantity(Units) 1 - 3 >3
Est. Time(days) 7 To be negotiated

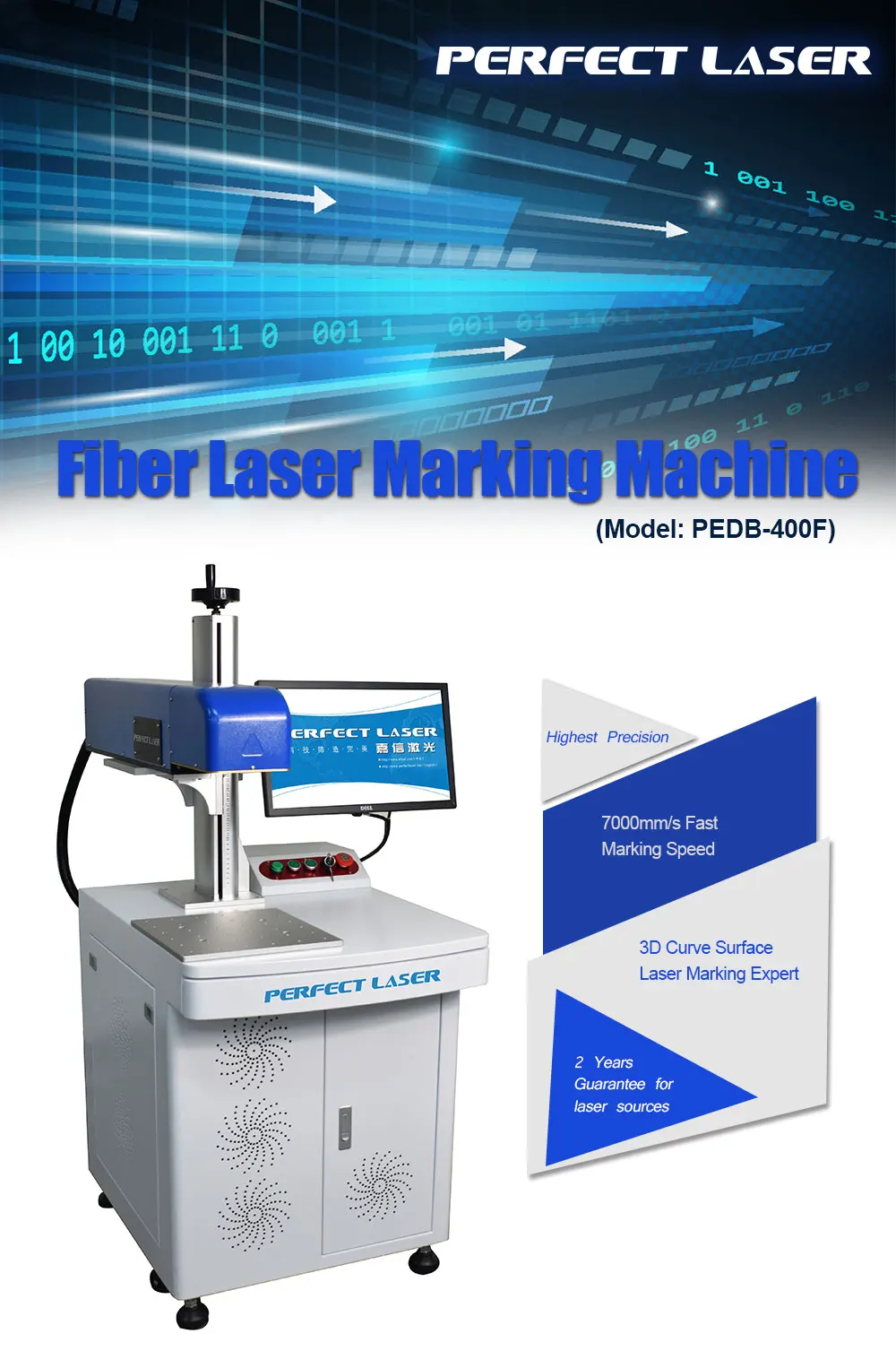

PVC OOI Micro Memory Card IC Laser Marking Machine

(Model: PEDB-400F 30W 50W 100W)



                                                                                          Contact: Vivian

                                                                   Skype: perfectlaser017
                                                                   Whatsapp: 008613871253601



Product Description

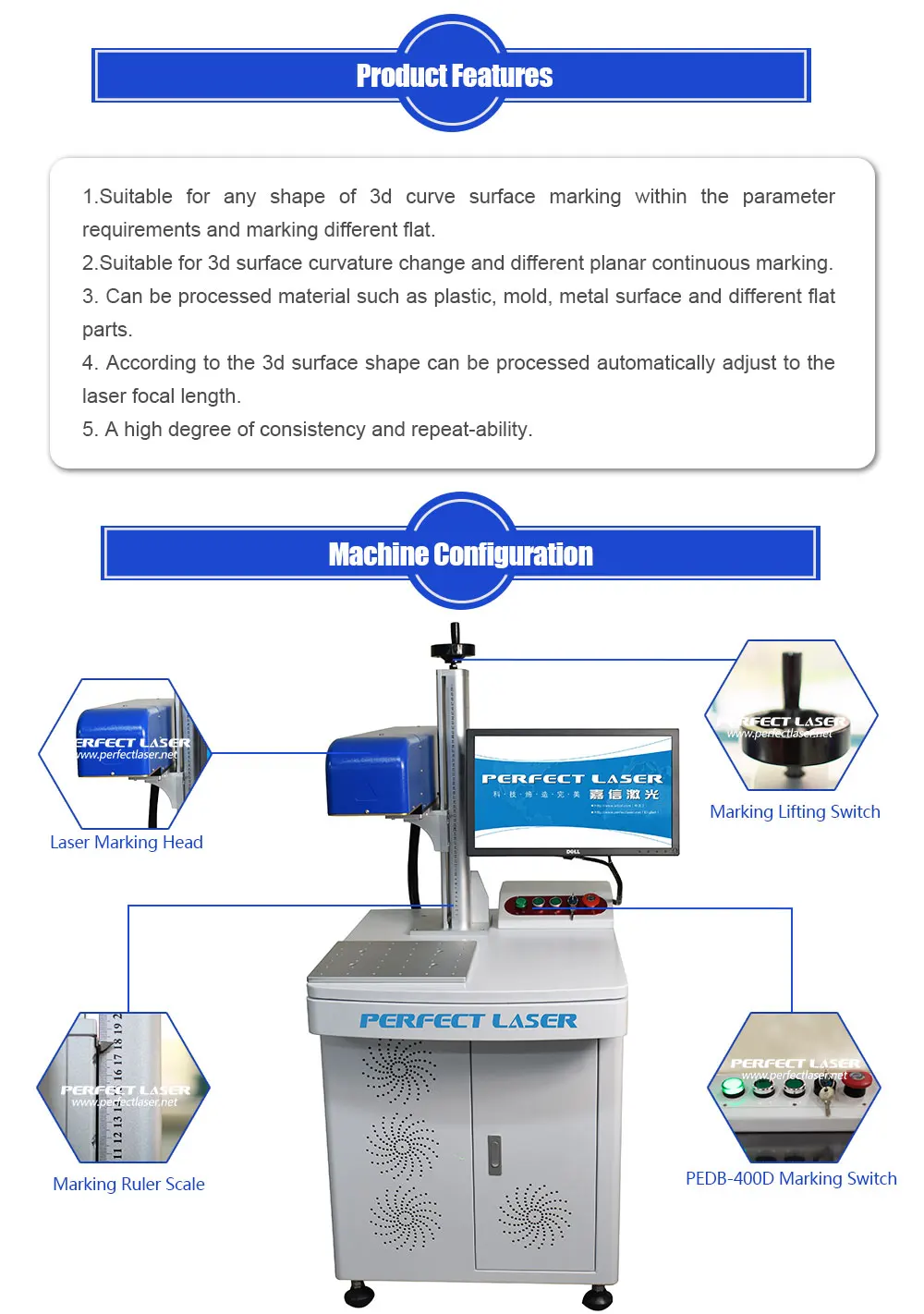

The best solution of laser marking machine for curve surface marking in large objects is to install dynamic focusing system, dynamic system is best solution so far in the realization of facular focusing minimum, and marking the largest , it will be high speed, flexibility.



Applied Material



1. Auto machinery industry: steel sleeve, piston ring, engine, factory metal flexible paper plates,

    engine metal flexible paper plates, machine tools, etc.

2. Electronic communications industry: the keyboard, electronic components, household appliances

    panel, fiber optic cable, cable, etc.

3. Hardware equipment industry: tools, measuring tool, cutting tool, sanitary ware, tableware, lock,

    knife cut, medical equipment, fitness equipment, stainless steel products, etc.

4. Buckle sign industry: buttons, bags buckle, belt buckle, gold and silver jewelry, signs, badges,

   attendance cards, greeting cards, calendars, photo cards, leather bags, belts, pens and pen  boxes,awards, trophies, all kinds of certificates, collections, arts, stamps, tablets, etc.

5. Gauge glasses industry: metal case, the bottom of the table, glass frame, instrument panel, etc.

6. Wooden craft industry: wooden crafts, calligraphy and painting to copy and process table,

    furniture decoration, etc

7. Packaging bottle caps industry: tobacco, food, medicine, cosmetics and so packaging, metal

    bottle caps, cans, etc

Details Instructions

Parameter



The laserThe machine modelPEDB-400F-30PEDB-400F-50PEDB-400F-100
The output power30W50W100W
Pulse energy1MJ1MJ1MJ
Repetition frequency30K-200KHZ50K-200KHZ5K-200KHZ
The laser wavelength,1064nm1064nm1064nm
ProcessMarking the scope110mm*110mm110mm*110mm175mm*175mm
The adjustable range175mm*175mm175mm*175mm300mm*300mm
300mm*300mm300mm*300mm
Focusing range≤±20mm≤±20mm≤±20mm
Marking way

XYZ Triaxial

dynamic focusing

XYZ Triaxial

dynamic focusing

XYZ Triaxial

dynamic focusing

Minimum line width0.03mm0.03mm0.03mm
SoftwareSpeed≤10000mm/s≤10000mm/s≤12000mm/s
Support fontTrueType font,AUTOCAD single font,customize font
One dimension barcodeCODE39/CODE128/ITF/CODABAR/EAN/UPC etc.
Two dimension barcodeQR/PDF417/DataMatrix(ECC200)etc.
The input filePLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG/TIF etc.

The whole

machine

Environmental

requirements

Temperature:10℃~35℃ Humidity:5%~75%
The input powerSingle phase110V/220VOptional /50~60HZ

The machine power

consumption

≤750W≤1200W≤1500W
Cooling wayAir coolingAir coolingAir cooling
The whole machine size1400mm×850mm×1699mm
Control interfacePCI-Express/USB2.0 Optional







Company Profile



Our Services

After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.

How to protect my order?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment

if your order is not shipped on time, or if the pre-shipment product quality (optional) does

not match the terms agreed on your contract. Your payment is protected up to 100% of an

amount - agreed between you and the supplier - called the Trade Assurance Order Amount.

FAQ

Q1.: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.


Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.


Q3.: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.


Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

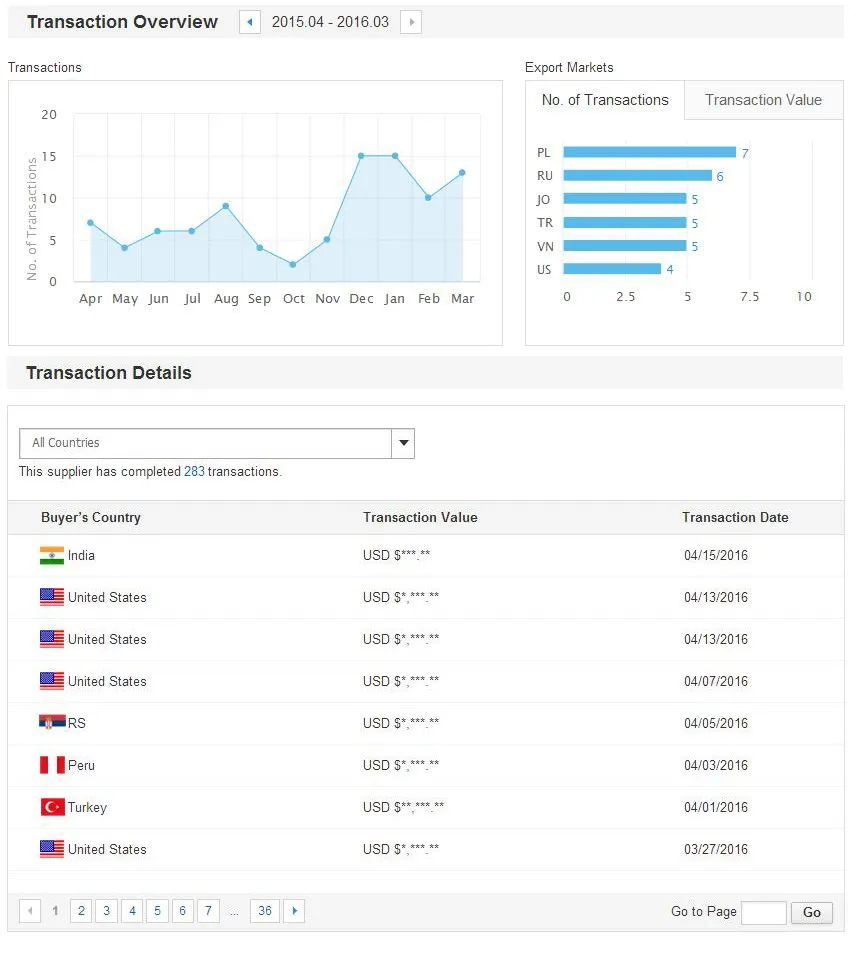

Online Trade Shows
