Raycus/IPG fiber laser 2000 watt cutting machine

FOB Reference Price:Get Latest Price
$24,600.00 - $35,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
PE-F3015
Power(W):
1000W-6000W
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$5.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New, New
Applicable Material:
Metal, carbon steel, silicon steel, stainless steel, aluminum, titanium
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
5-14m / Minute
Graphic Format Supported:
AI, BMP, DXF, PLT
Cutting Thickness:
1-12 m (carbon steel)
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Perfect Laser
Place of Origin:
Hebei, China
Brand Name:
Perfect Laser
Certification:
CE, ISO
Laser Source Brand:
Raycus/IPG/MAX
Laser Head Brand:
RAYTOOLS
Servo Motor Brand:
Panasonic
Guiderail Brand:
HIWIN
Control System Brand:
CYPCUT
Weight (KG):
2000 KG
Key Selling Points:
Long Service Life
Warranty:
1 YEAR, 24 months
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Advertising Company
Local Service Location:
United States, Peru
Showroom Location:
None
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
Motor, Bearing, Engine
Dimension(L*W*H):
4.62*2.8*2.2m
Max. Moving Speed:
100m/min
Transmission Method:
Ball Screw/Gear Rack Transmission
Table-Driven System:
Japanese Imported Servo Motor & Driving System
location precision:
±0.05 mm
cooling system:
water cooling
Product name:
ipg fiber laser cutting machine
Product Certification certification
CE Certified.
Valid from 2015-08-11 until 2025-08-10
Supply Ability
Supply Ability:
5000 Unit/Units per Year ipg fiber laser cutting machine
Packaging & Delivery
Packaging Details
According to export standard
Port
shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 10 To be negotiated
Video Description

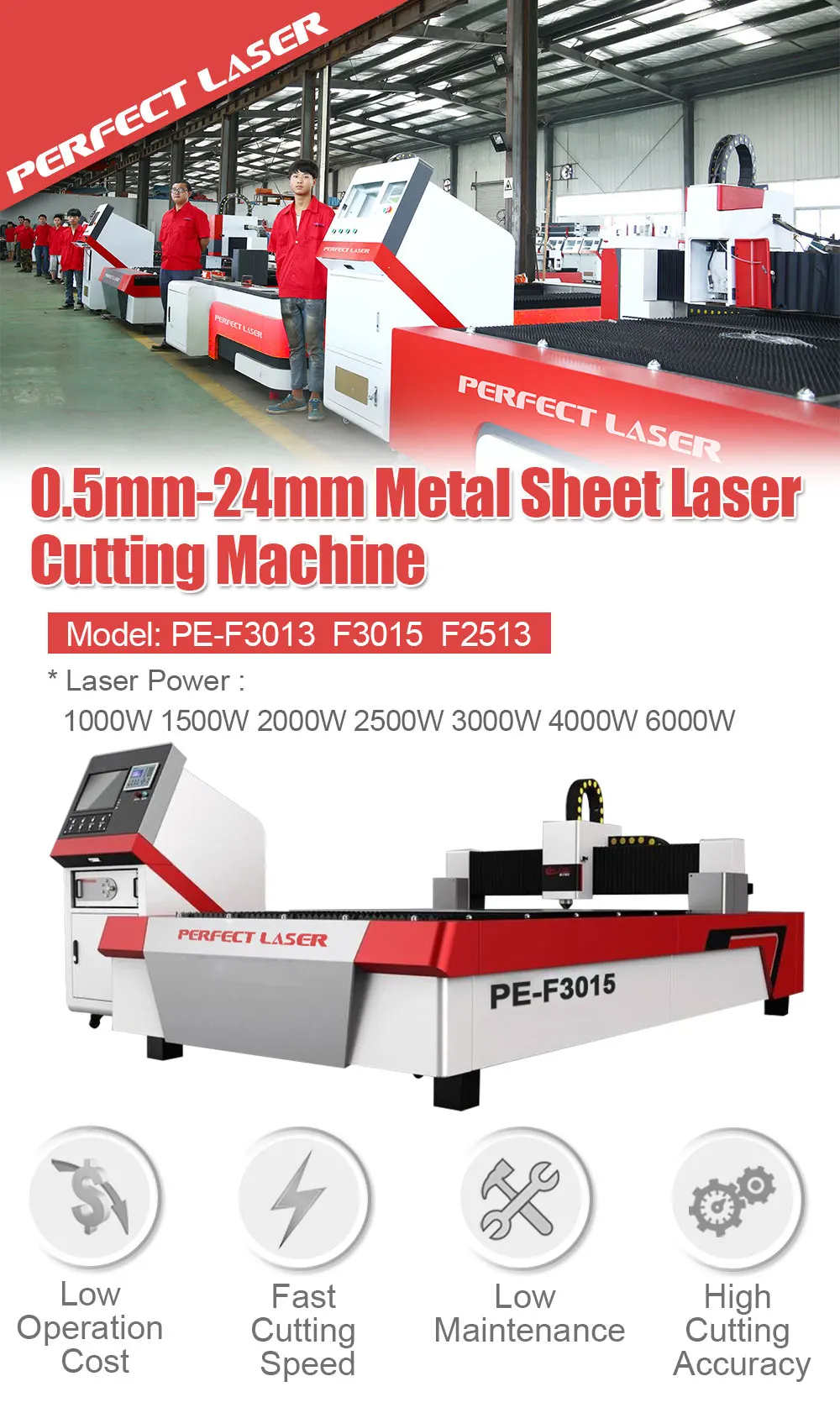

Raycus/IPG fiber laser 2000 watt cutting machine

(2000W Fiber Laser Cutting Machine PE-F2000-3015 PE-F2000-2513)
Contact :Emma Email: emma(@)perfectlaser.net Ph/Wsap: +86 138 86034275
Product Description
Fiber laser cutting machine Feature
Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System , it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.

Perfect Laser fiber laser marking machine is widely for stainless steel coding, carbon steel coding, iron making, aluminum coding,coppercoding, anodized and coated material materials coding, and not-metallic such as nylon coding, ABS/PVC/PC board, hard plastic coding, rubber coding, resin coding, ceramic coding etc., in the industries of electronic and communication products, IC products,electric lines, cable computer computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.
Model
PE-F2000-2513
PE-F2000-3015
Laser Power
2000W
Laser Source
Raycus or IPG Laser Fiber Laser Source
Laser Type
Imported Fiber Laser or Top Brand China Fiber Laser
Laser Technology
Germany Technology
XYZ Working Area
2500*1300*150mm
3000*1500*150mm
Max. Cutting Thickness
(CS)
15mm - 20mm
Max. Cutting Speed
5-15 Meters / Min (up to Materials)
Max. Location Speed
60m/min
Laser Wavelength
1070nm
Minimum Line Width
≤0.1mm
Location Precision
≤±0.05mm
Re-Location Precision
±0.02mm
Max. Moving Speed
100m/min
Supporting Format
PLT, DXF, BMP, AI
Power Demand
380V/50Hz
Cooling Way
Water Cooling
Worktable Max. Load
1000KGS
Transmission Method
Ball Screw Transmission
Table-Driven System
Japanese Imported Panasonic Servo Motor & Driving System
Focus Method
Following and Automatic Adjust Focus
Control Method
Offline Movement Control
Control Software
Perfect Laser Professional Laser Cutting Software
Fiber laser cutting machine Advantages
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
8) Adopted Original Raycus or German IPG fiber laser source: with long using life up to 150000 hours and high cutting speed up to 15m/min;
9) Japan YASKAWA Servo motor with double ball screw driving system: can make sure the cutting high precision especially comparing with the single driver system.
10) Imported World Famous "LaserMech" laser head with auto focusing height follower: which can ensure the constant same distance between the head and cutting material.
11) The cutting slot is very slim, can reach up to 0.05mm: The machine is very suitable for processing precision parts with high efficiency.
12) Automatic Lubrication System for Mechanic: which can lubricate the linear guiderail nearly 500 times per minute to make sure the high precision.
13) Convenient Collecting System: which has the special funnel design to make collecting more easy.

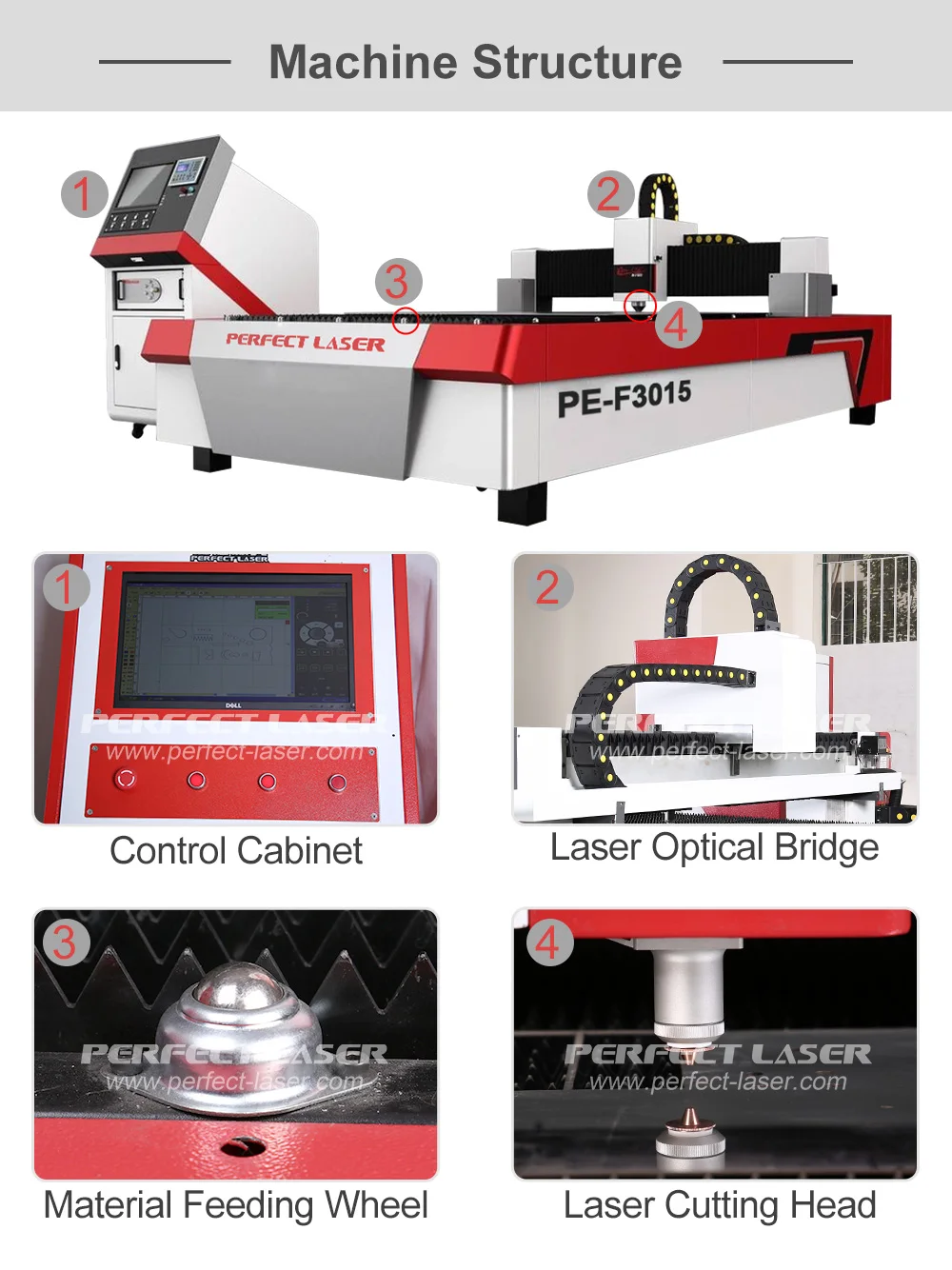

Machine Details
1. Advanced Germany Technology:ensure most high tech in the world.
2. Advanced Laser Optical System:Ensure Excellent Laser Beam Quality Double-Xenon-lamp technology, can strongly improve the laser power and laser beam quality.
3. Laser Path Pre-view & Pre-position Function:Laser beam is in-visible by adopting “Red Light Pointer”, Realize the laser path pre-view and Pre-position function.
4. Pre-view and pre-run function:Simulate the laser cutting path, Pre-run the cutting path in advance, Ensure finding the
accurate cutting position.
5. Unique Mirrors and Lens Cooling Technology:All mirrors and lens is cooled by water, Takes the mirror heat during working,Prolong its’ lifetime, Save future operation cost.

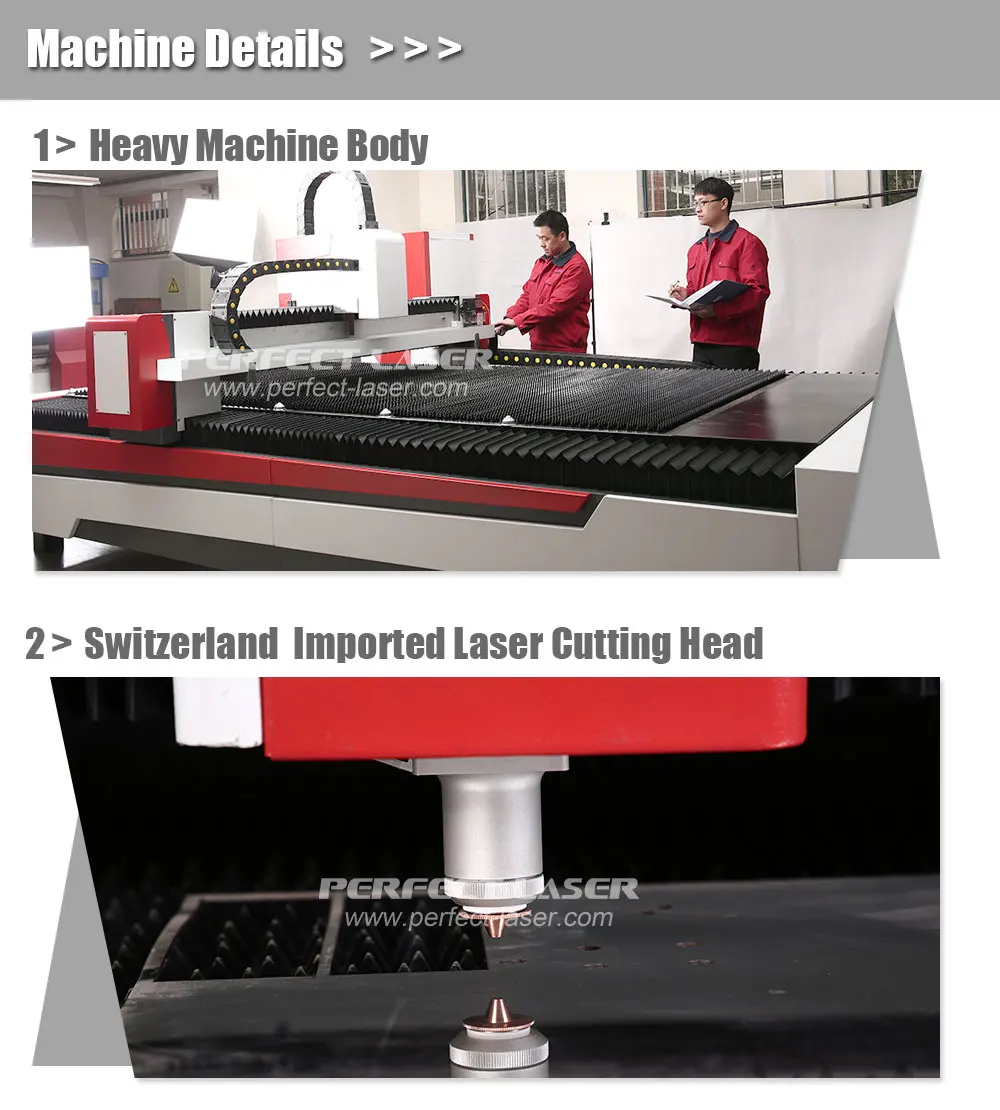

6. Heavy Machine Body:Adopt 100mm*100mm*6mm thick, square metal tube Stable, Heavy Loading, Won’t distortion after long-time using, Worktable Max. Load can reach 500 kgs. Adopt a funnel-type machine bed design, Work with conveyor belt, Easy for user to get the cutting pieces from the machine front.
7. Auto transfer system:Can automatically transfer the cutted work-pieces into the front of machine, Improve working efficiency,Save labor energy, No need user to take it by hand. Make the work-pieces neat and beautiful.

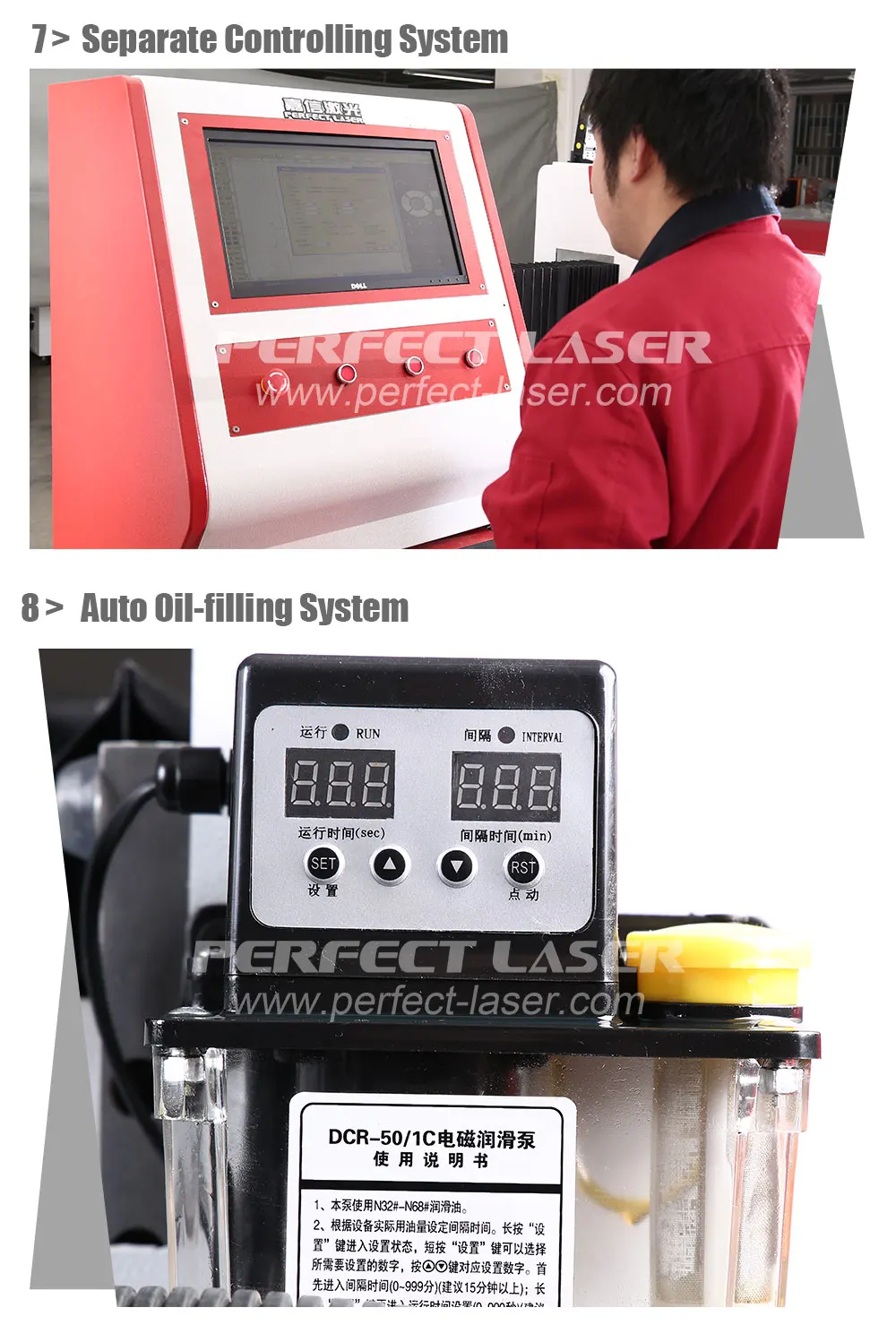

8. Auto Oil-filling system: Press for once, can lubricate the machine transmission rod for 2-3 months.
9. Red light pointer:As the laser beam is in-visible, We adopt red light pointer to indicate the real position of the laser beam, Make cutting more accurate.
10.Dynamic Auto-focus System:Keep the same distance between the metal sheet and laser head, Realize the accuracy of cutting effect.

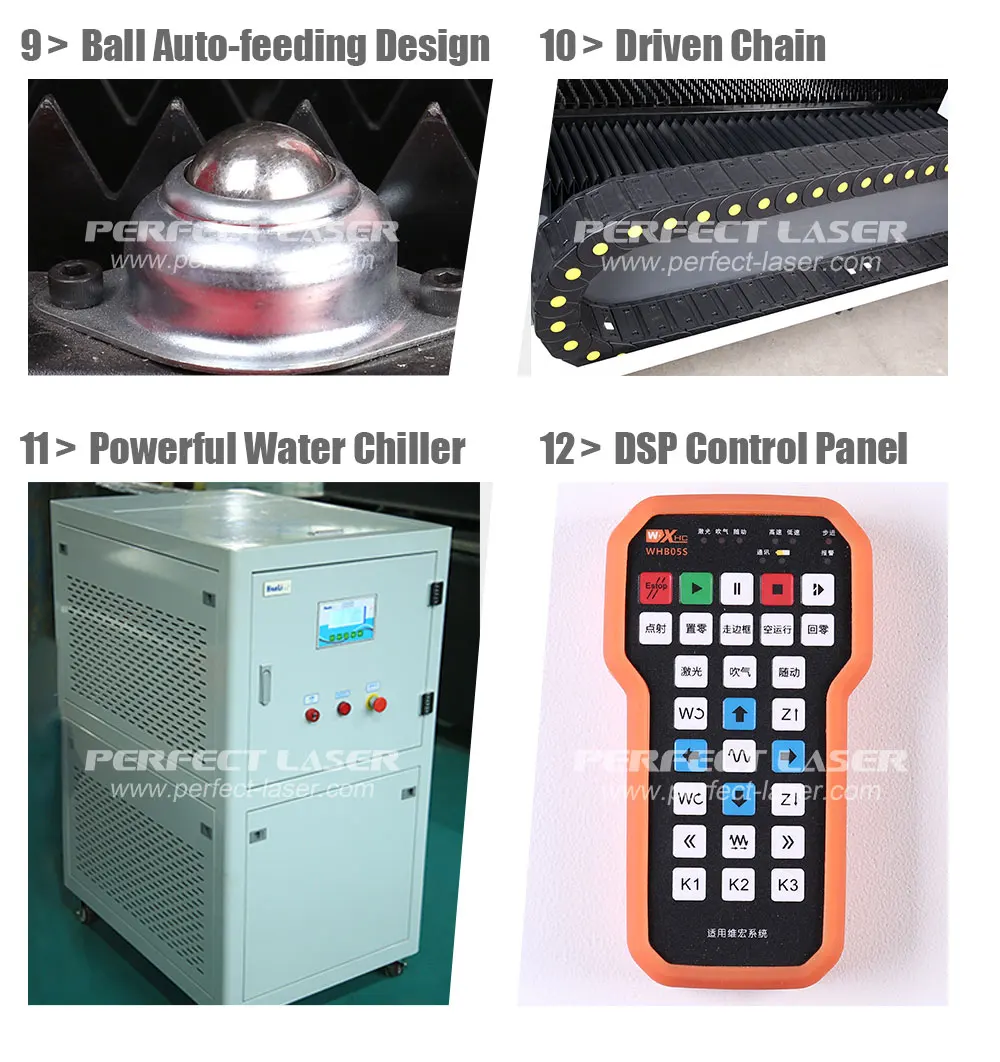

11. Auto-feeding Design:Adopt feeding wheel design, Make the material feeding easier, Labor energy saving.
12. Cutting Powder and Smell Absorbing System:Absorbing the cutting power and dust out of the room, No dust, No smell,
Air-Proof, Make cutting process environmental.
13. DSP Control Panel (Optional Item):East to operate, Enable remote control.
14. Industry Computer:CPU is Intel Core i3, DDR3 is 4G, SSD is 250G.
15. 7P Powerful Water Chiller: Increase the stability of cutting power, Support water flow testing, Makes the cutting power
more stable. Avoid material cut un-completely. Enhance the working efficiency.
16. Professional Laser Cutting Software:Adopt CNC 2012 latest version, with powerful editing function, Friendly interface, Easy to Use. Supports DXF, PLT, G-Code and many graphs.

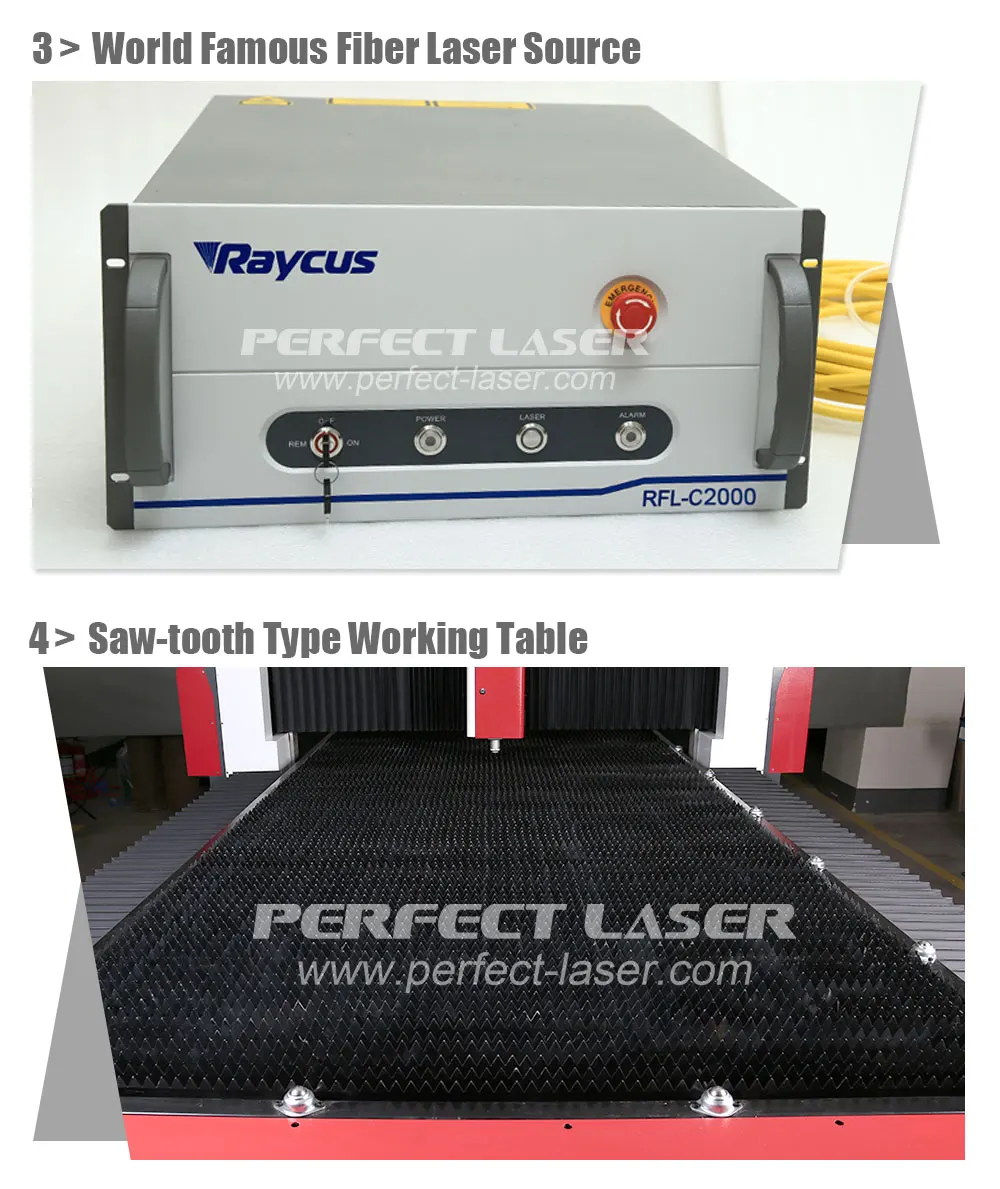

17. Laser Source:Adopt USA imported Laser Xenon lamp, Double lamp Technology Strongly improve the power and laser beam quality.
18. USA Dynamic auto focus system:When metal sheet is not so plain, Adjust the focusing distance automatically.
19. Saw-tooth Type Working Table:Stable, Heavy Holding.
20. Taiwan Made Ball Screw Rod: Diameter 50mm ball screw rod, High accuracy linear running guide rail, Improve the precision and accuracy of the machine.
21. Taiwan Linear Guide Rail:High speed with, Lower noise volume, High accuracy and long life span.

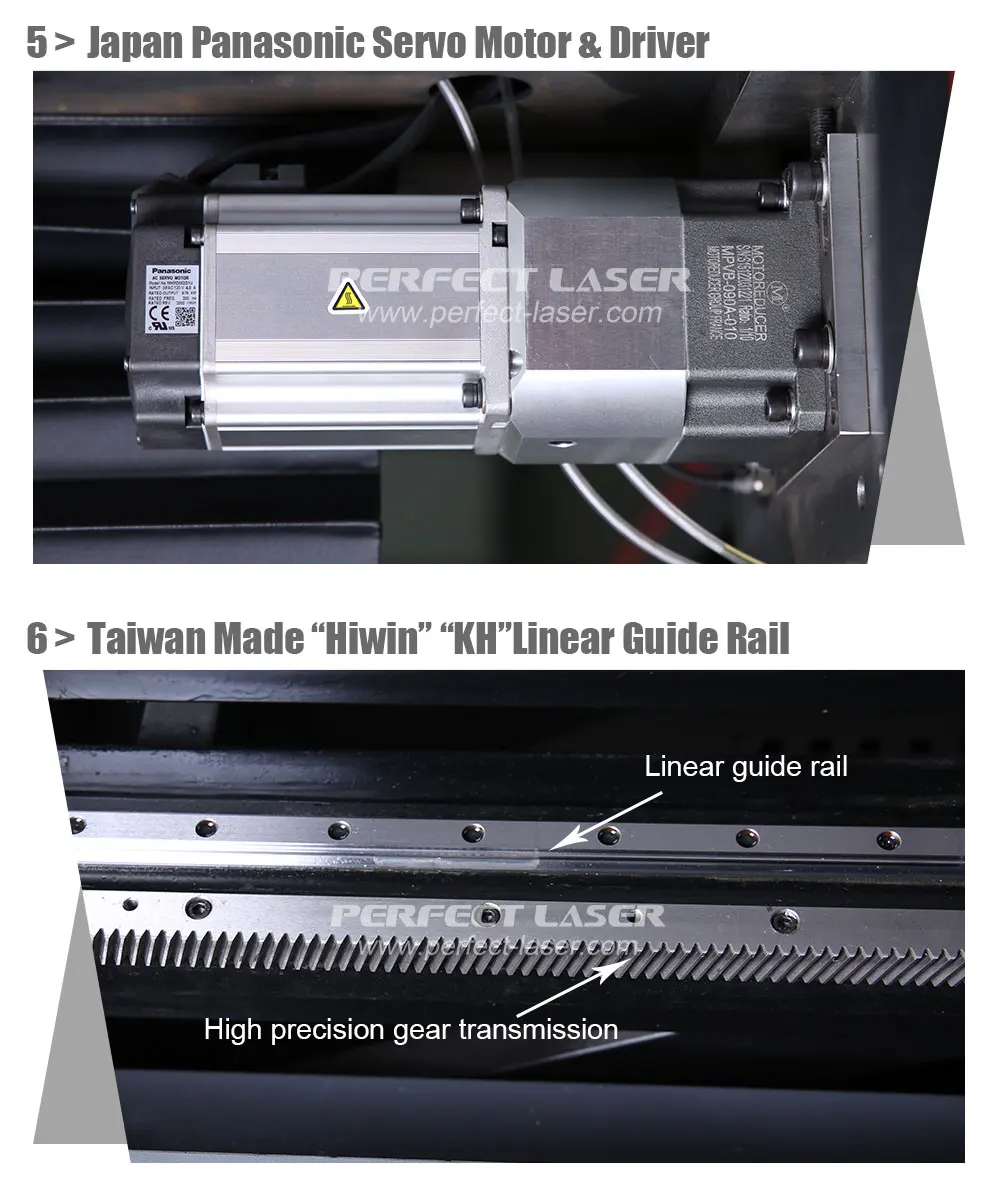

22. Japanese Panasonic Servo motor and Driver:Extreme precise positioning, Make moving positioning mechanism operate smoothly, Reliably and free of maintenance.
23. 45 degree lens:3 screws in the 45 degree lens, Easy to adjust laser path.
24. Foot Switch:Press it for cutting easily.
Product Application
Applied materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet,pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industries
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery,precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing,adornment, advertising, metal foreign processing various manufacturing processing industries.
Related Products
Packing & Delivery
After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
