High Speed Metal Laser Etching Machine Gold/Silver/Logo/PCB/Keyboard Fiber Laser Marking

  • 1 - 4 Units
    $16,000.00
  • >=5 Units
    $14,000.00
Power(W):
10W 20W 30W 50W
Model Number:
PEDB-400F laser cutting machine
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Samples:
$5.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Marking
Laser Type:
Fiber Laser
Working Accuracy:
±0.01mm
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
Marking Software
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Certification:
CE, ISO
Laser Source Brand:
RAYCUS
Weight (KG):
130 KG
Key Selling Points:
Easy to Operate
Warranty:
More than 5 Years
After-sales Service Provided:
Online support, Free spare parts, Video technical support
Applicable Industries:
Machinery Repair Shops, Farms, Printing Shops, Construction works , Energy & Mining, Advertising Company
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Pakistan, Thailand
Showroom Location:
None
Marking Area:
110mm*110mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
PLC
Marking Speed:
0-8000mm/s
Marking Depth:
0.2mm
Marking Size:
110*110mm
Laser Source:
fiber Laser
Humidity:
45~85% (no condensation)
Working Voltage:
110V/220V/380V
Continuous Working Time:
≥16h
PC:
PC included for 20 watt fiber laser marking machine
Delivery Time:
1-7 Days for 20 watt fiber laser marking machine
Keywords:
lazer marking machine
Product Certification certification
CE Certified.
Valid from 2015-08-11 until 2025-08-10
Supply Ability
Supply Ability:
5000 Unit/Units per Year laser cutting machine
Packaging & Delivery
Packaging Details
Air-Worthy Packing or Sea Packing which comply with international standard for laser cutting machine
Port
Shanghai, Shenzheng, Guangzhou, any Chinese ports
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

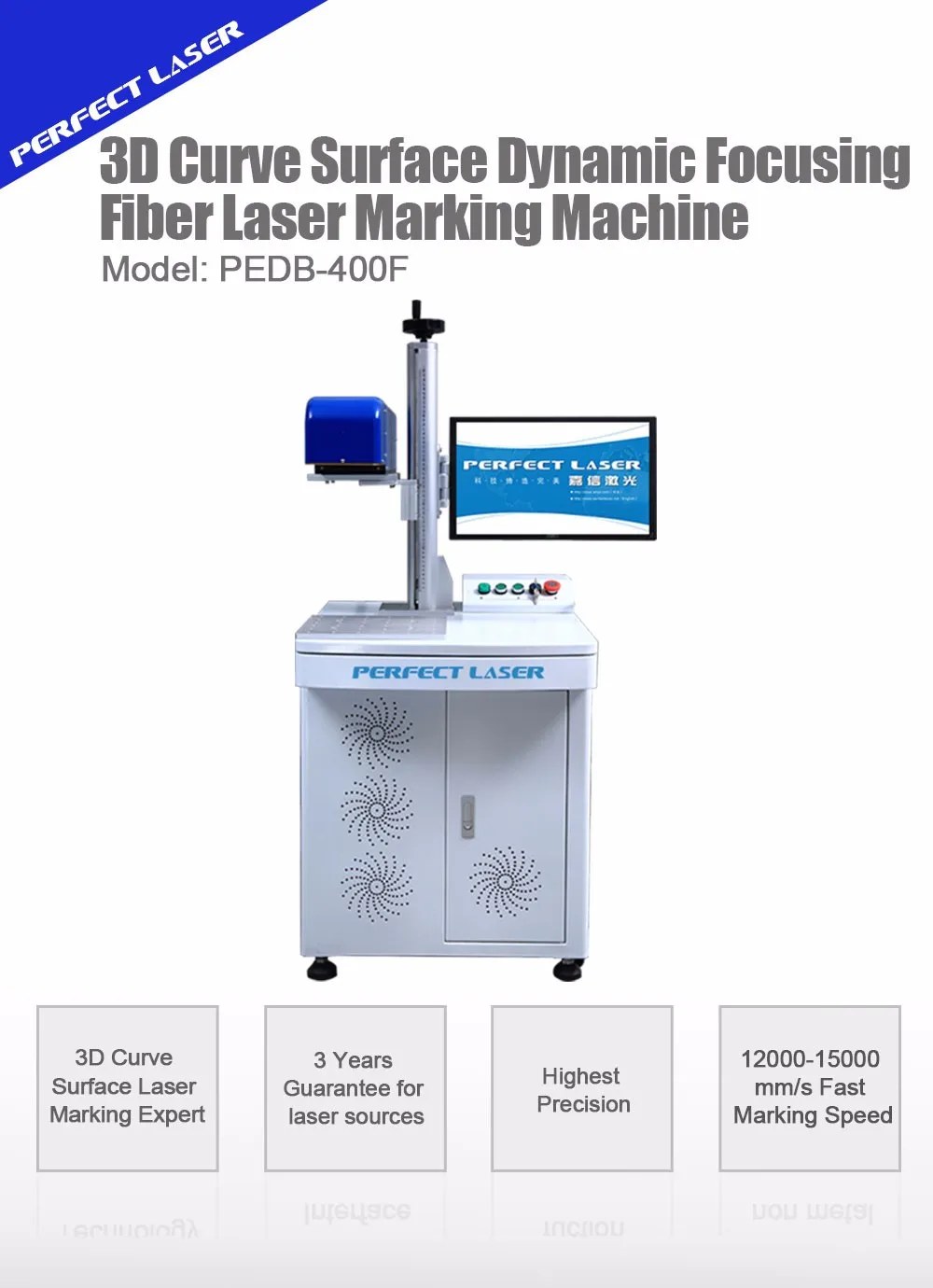

High Speed Metal Laser Etching Machine Gold/Silver/Logo/PCB/Keyboard Fiber Laser Marking


(Model: PEDB-400F)
Contact: Betty  Wechat/Whatsapp: +8618171115546
Email: sales36(@)perfectlaser.net

This kind of metal engraving machine is a high-efficiency laser coder specially developed and manufactured by Perfect Laser for animal earmarking market. The metal engraving machine adopts imported German high-quality laser source, the beam quality is excellent and the marking lines of this ear tag marker are smooth and fine. At the same time we equipped with the Perfect Laser special coding software and professional customized working platform to automatically arrange serial number, input multi-character and two-dimensional code to fast and accurate realizing various marking on livestock ear tag and labeling surface.

Main Features of fiber laser marking machine

1. Low Cost In Use No wearing part. Free of maintenance.
2. High Speed Imported laser scanning system makes the marking speed up to 8000mm/s.
3. High Precision High precision, re-position precision is 0.001mm.
4. Energy Saving The efficiency of optic-electrical converting is up to 70%.
5. High Reliability MTBF(Mean Time Between Failures) >100,000 hours.
6. Integrated and Compact Small size, only 0.5 M2, can be put on desk and easy to install.
7. Easy Operating Easy operation, VCD training, trouble free.
8. 10 Years Long lifetime Fiber laser device adopts Germany IPG technology, 100000 hours lifetime.
9. No consumables While machine can be used free of maintenance for 8-10 years.
10. Air Cooling Adopts air cooling, has excellent cooling effect than the other cooling method.

Technicial Data
Model
PEDB-400F
Type
Floor Stand
PC includes or not
Includes PC
Laser Source
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Pulsed
Polarization
random
Nominal average output power
10W - 20W
Central emission wavelength
1060-1070 nm ,Q-switched operation Output power
adjustment range 10%-100%
Emission Bandwidth(FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse (PRR = 20 kHz)
<1.8
Typical beam quality, M2
10~95
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
600W
Net Dimensions
143*62*101cm
Net Weight
130 kgs
Gross Weight
200 kgs
Scanning Speed
0-8000mm/s
Marking Speed
0-8000mm/s
Marking size
110mm×110mm(F-theta 160) optional
Spot size
≤40 micron (F-theta 160)
Cooling unit
Air cooled
Pilot laser
650nm diode laser, visible red light for marking guide
Continuous working time
≥16h
Humidity
45~85% (no condensation)
Operating temperature
0~40℃
Control units
Laser Mark (English Version)

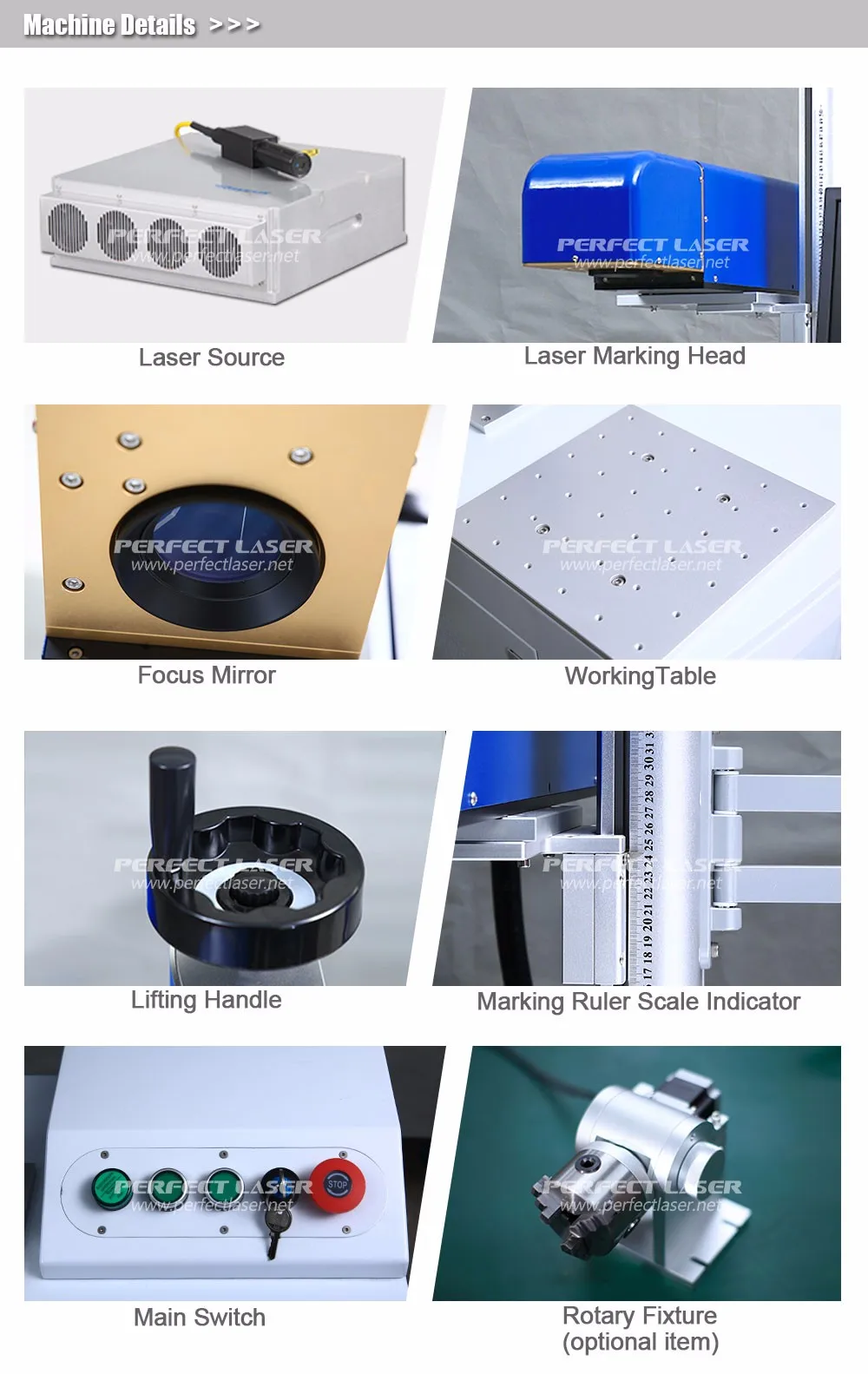

Detailed Images

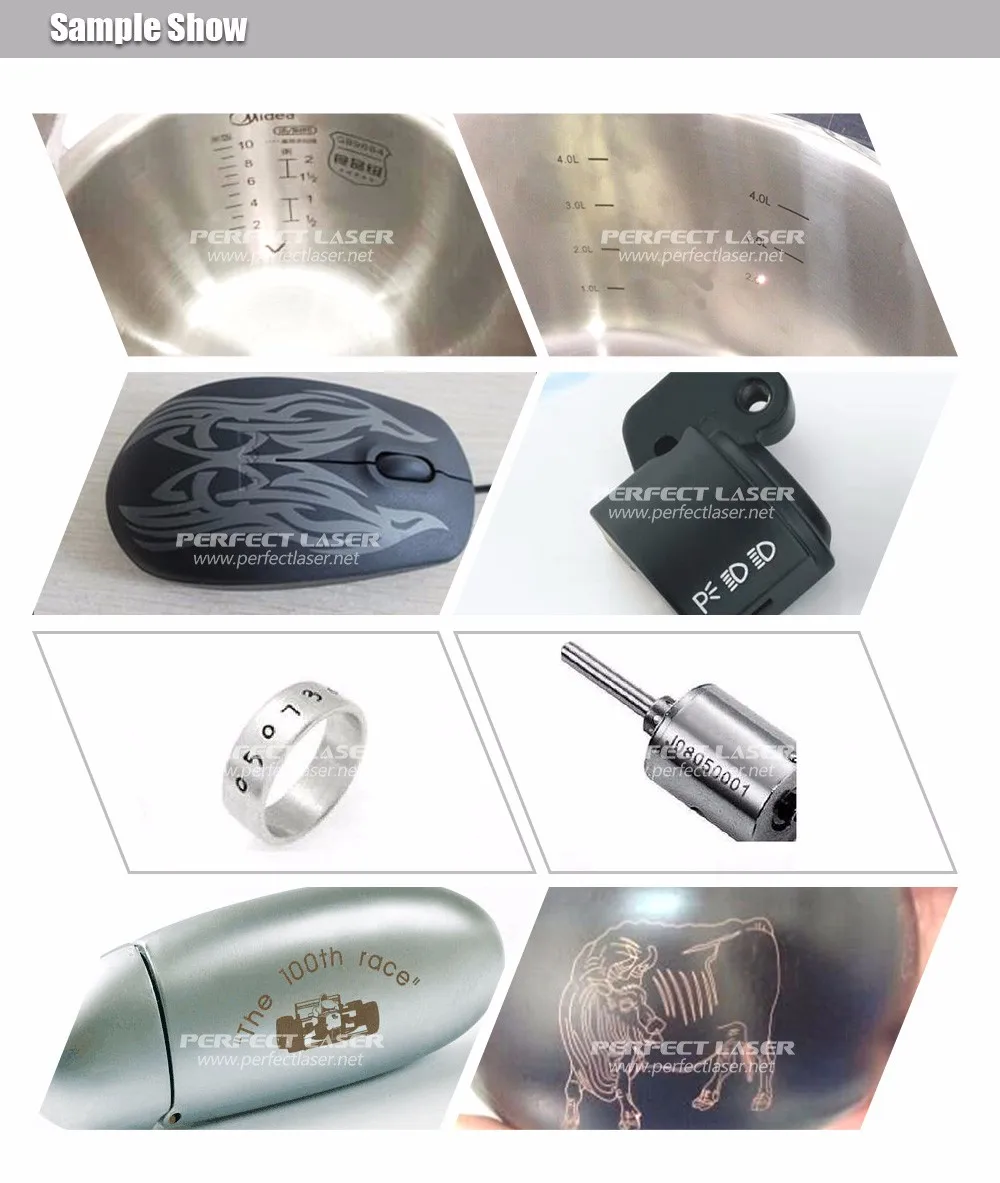

Sample Show


This metal engraving machine is mainly applied in the identification of numbers or two-dimensional codes on animal ear tags (pigs, cattle, sheep) for the information management of animals and livestocks for animal breeding, epidemic prevention and meat quarantine.

Packing & Delivery
Our Company
Contact
Perfect Laser Co., Ltd. (China) Contact: Betty / Sales Manager MP: 0086-181 7111 5546     Tel: 0086-27-86791986    Fax: 0086-27-86775865     E-mail:  Betty(@)perfectlaser.net Whatsapp: 0086-181 7111 5546 Skype: perfectlaser036 Wechat: 18171115546 QQ: 1420891429 Add: HengRuichuangzhi Technology Park, No.13,YangQiaohu Road, Jiangxia Dist, WH, Hubei,China(430200)

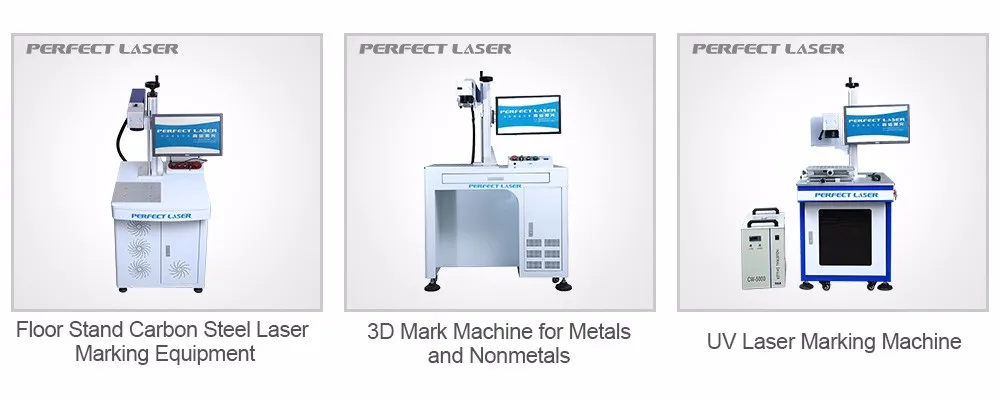

Other Products
FAQ

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.


Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
