60w 80w 100w 150w Acrylic CO2 Laser Cutting/Laser Engraving Machine

  • 1 - 4 Sets
    $4,000.00
  • >=5 Sets
    $2,200.00
Model Number:
PEDK-13090
Power:
100W 30W 60w 80W 150w
Samples:
PEDK-13090 , 80W
$5.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Laser Type:
MAX
Application:
LASER CUTTING
Applicable Material:
Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, wood, Crytal
Condition:
New
Cutting Area:
1300*900mm
Cutting Speed:
0-10000mm/s
Graphic Format Supported:
PLT, DXF, BMP, Dst
Cutting Thickness:
0-25mm acrylic (Others Determined by Materials)
Cooling Mode:
Water Cooling
Control Software:
Professional Reader Laser Cutting Software
Place of Origin:
Hubei, China
Brand Name:
Perfect Laser
Certification:
ce, Sgs
Laser Source Brand:
MAX
Weight (KG):
300 KG
Key Selling Points:
Easy to Operate
Warranty:
1Year
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining
Local Service Location:
None
Showroom Location:
None
Machinery Test Report:
Not Available
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Laser Source
Product name:
CO2 laser cutting machine
Driving Motor:
Step motor
Engraving Speed:
1-60000mm/min
Laser Power Controlling:
1-100% Manual Adjustment and Software Controlling
Voltage:
220V(±10%) 50Hz
Controlling System:
CNC Professional Control System
Operating Temperature:
0-45C
Position System:
Red dot Laser Pointer
Interface:
USB port transfer
Product Certification certification
CE Certified.
Valid from 2015-08-11 until 2025-08-10
RoHS Certified.
Supply Ability
Supply Ability:
5000 Unit/Units per Year co2 laser cutting machine 150w
Packaging & Delivery
Packaging Details
Perfect Laser PEDK-13090 60w / 80w / 100w / 130w / 150w CO2 Laser Engraver And Cutter for sale price standard exporting wooden cases.
Port
Shanghai,Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

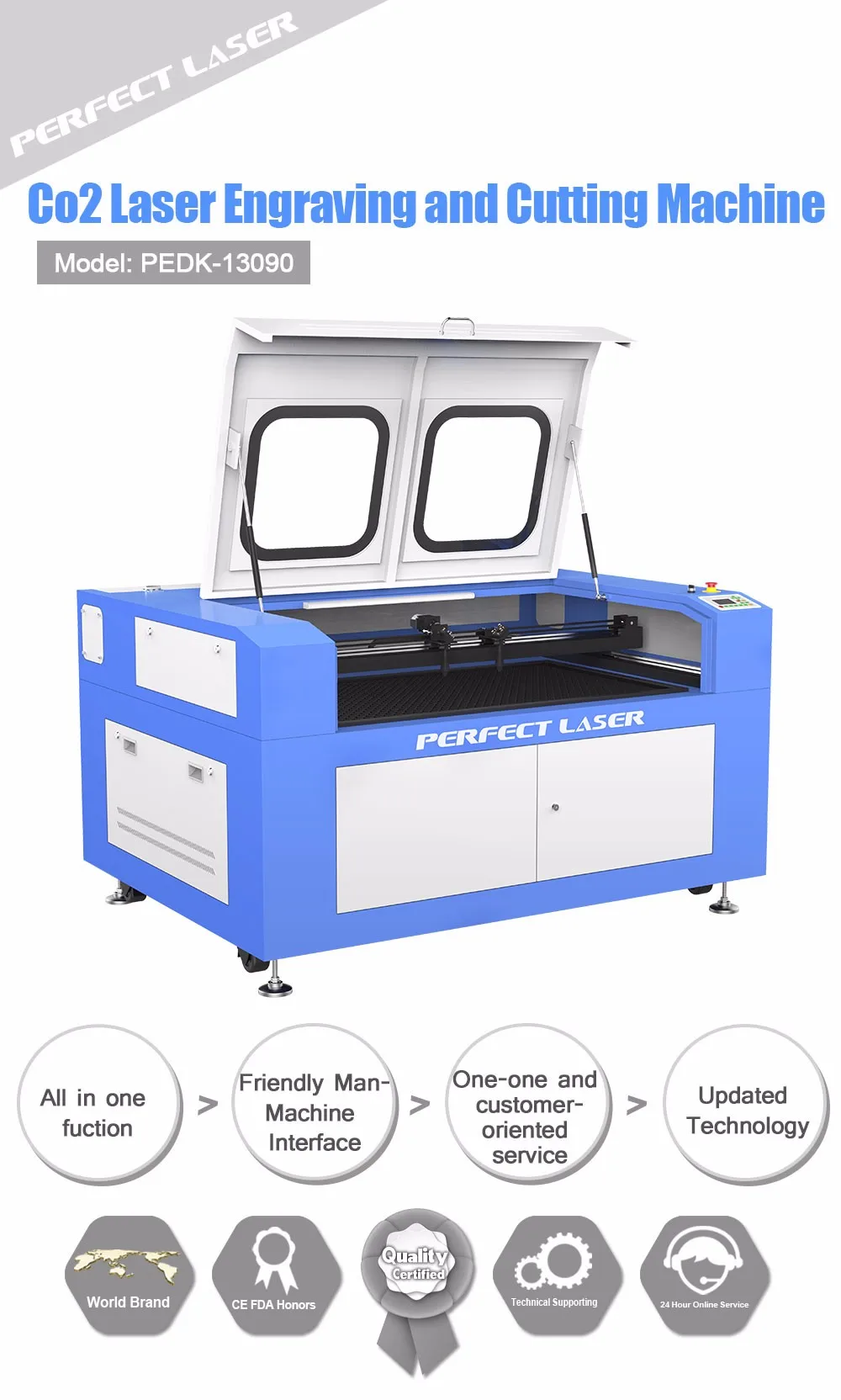

60w 80w 100w 150w Acrylic CO2 Laser Cutting/

Laser Engraving Machine

(Model:PEDK-13090)
Contact:Sophie Skype: perfectlaser012 Email: Sophie@perfectlaser dot net

Introduction:
PEDK-13090 laser engraving machine is the most hot-selling model accepted by our customers. Co2 laser cutters has large 1300mm by 900mm working area, compact nesting, convenient storage materials.
The knife-shape aluminum heavy strip work of the platform can avoid defective products caused by reflection of backstop while cutting acrylic & wood materials.
If change into honeycomb working table, Co2 laser cutters can used to engrave and cut cloth, fabric, carpet, shoes, etc.


Technical parameter
Model
PEDK-13090
PEDK-130250
PEDK-160260
Working Area
1300×900mm
1300×2500mm
1600×2600mm
Laser Power
60W / 80W / 100W / 120W / 150W
Laser Type
Hermetic and Detached Co2 Laser Tube
Engraving Speed
1-60000mm/min
Cutting Speed
1-10000mm/min
Repeat Location Accuracy
± 0.0125mm
Laser Power Controlling
1-100% Manual Adjustment and Software Controlling
Voltage
220V(±10%) 50Hz
Cooling Mode
Water Cooling and Protect System
Cutting Platform
Professional Thickening Strip or Honeycomb Work Table
Controlling Mode
CNC Professional Control System
Support Graphics Formats
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
Power Controlling Mode
Laser Energy Combining Movement Control System
Control Software
Original Perfect Laser Engraving & Cutting Software

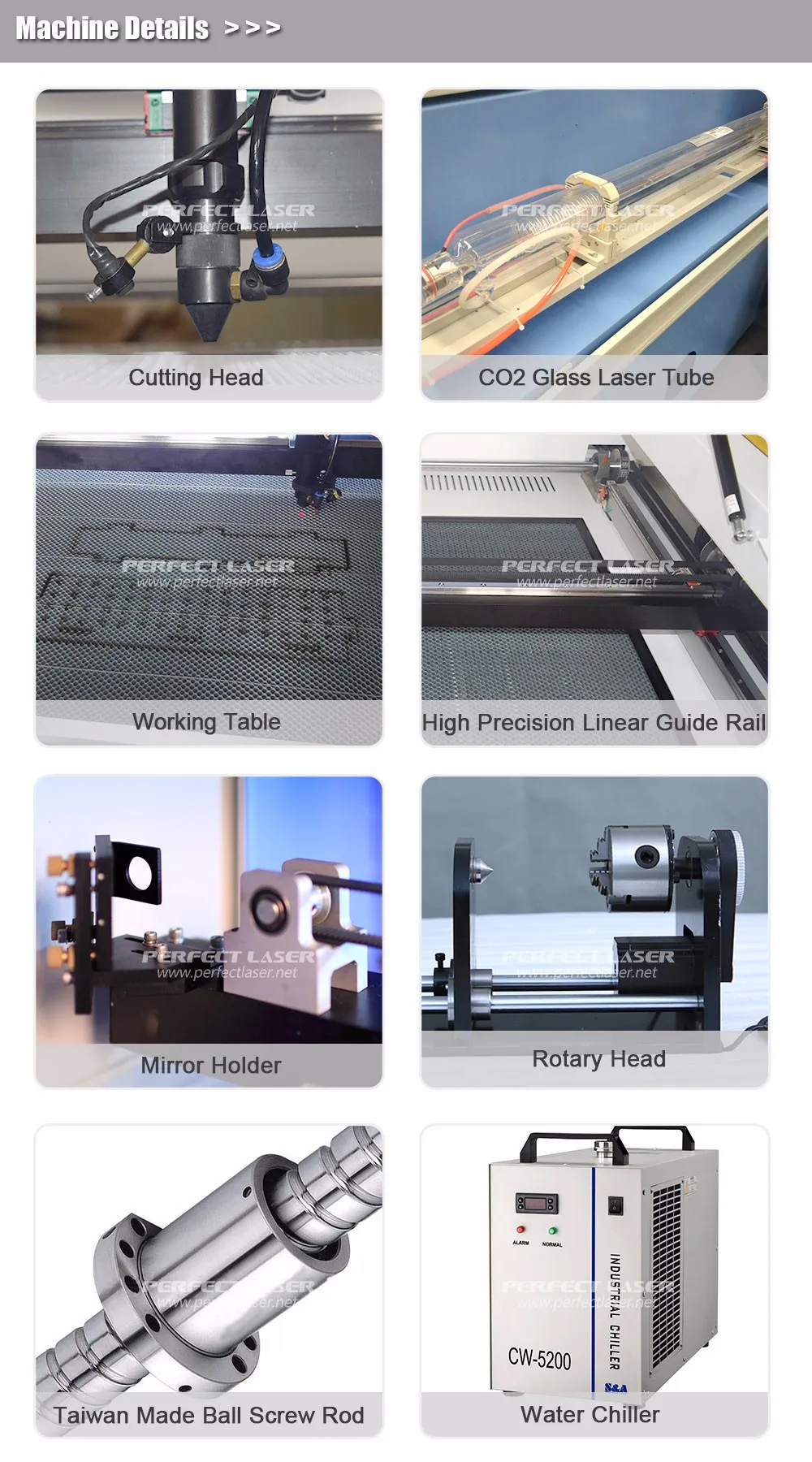

Machine details
Features:
1. Hermetic and Detached CO2 Glass Laser Tube
10000h long lifetime,we can choose the suitable laser tube power according to different processing material thickness.
2. Honeycomb Working Table For Your Option
Especially for fabric engraving which can absorb the fabric firmly.
3. Thicken Strip Working Table For Your Option
Specially used for cutting and for heavy and hard products such as acrylic, PVC board cutting.
4. Customized Double Working Table
Design for your different material engraving and cutting requirements.
5. Taiwan Imported high precision Linear Guide Rail and Ball Screw Rod
High speed and accuracy with lower noise & long life span. Helps laser head move smoothly and laser beam reflect with high accuracy.
6. Water Chiller with Alarm Protection
CW3000/CW-5000/CW-5200 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7.Reflector Mirror Holder
Focal length adjusting Parts easy to find the center of the lens and find the right focal distance.
8.Rotary Fixture
Rotary Fixture is for the circle engraving of cylindrical or column work pieces. Need working together with Motorized Up and Down System.
Application&Samples
Application:
1. Available materials: the Co2 laser cutters are widely applied in acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, Gum, Ceramics, etc. nonmetal materials.
2. Application Industry: the Co2 laser cutters are widely applied in advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Related Products
Marketing Campaign
Company Profile
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City of Hubei Province.Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
Product ---Our products include: laser engraving machine, laser cutting machine, fiber laser marking machine, fiber laser cutting machine, die board laser cutting machine, 3D laser engraving machine, CNC router, plasma cutter, dot peen marking machine, inkjet printer, CNC channel letter bender, laser welding machine and so on.
More than 20 series, 300 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in electronics, hardware, model-making, clothing, footwear, advertising, printing and packaging, toy-making, as well as more industries.
